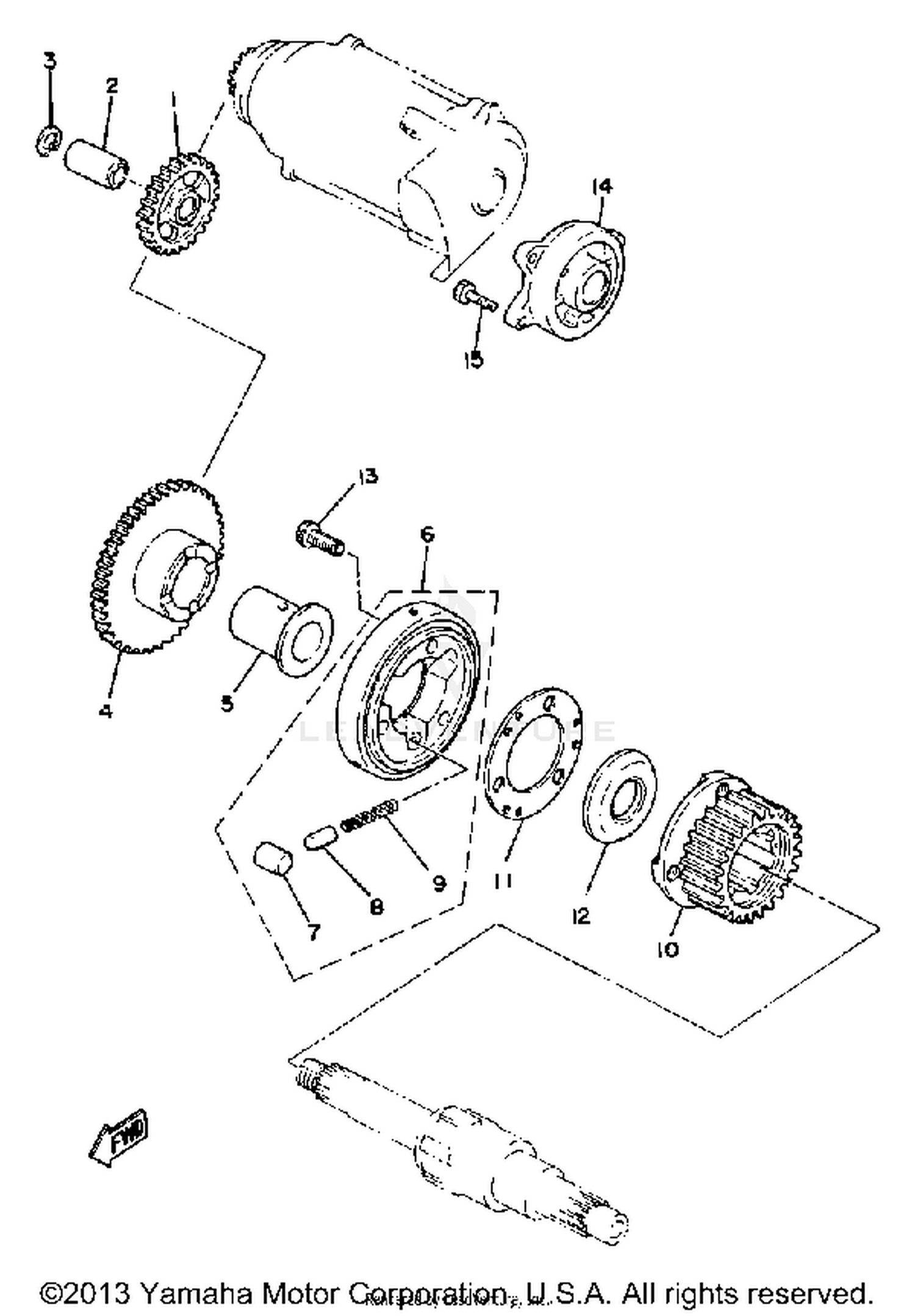

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
2H7-15512-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#2
SHAFT 1
2H7-15521-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#3
CIRCLIP
99009-17500-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, IDLER 2
2H7-15517-00-00
|
$51.36 | ||
|
Unavailable |
|||
|
#5
SPACER
90560-25174-00
|
$16.49 | ||
|
Unavailable |
|||
|
#6
STR CLUTCH OTR ASSEMBLY
2H7-15580-01-00
|
$103.99 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
93615-17125-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
1J7-15583-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-04503-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, DRIVEN
2H7-11537-00-00
|
$95.86 | ||
|
Unavailable |
|||
|
#11
PLATE, CLUTCH COVER
2H7-15589-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#12
WASHER, SPEC''L SHAP
90209-25169-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
BOLT, SOCKET HEAD
91316-08018-00
|
$3.20 | ||
|
Unavailable |
|||
|
#14
HOLDER, KICK GEAR
2H7-15654-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#15
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
