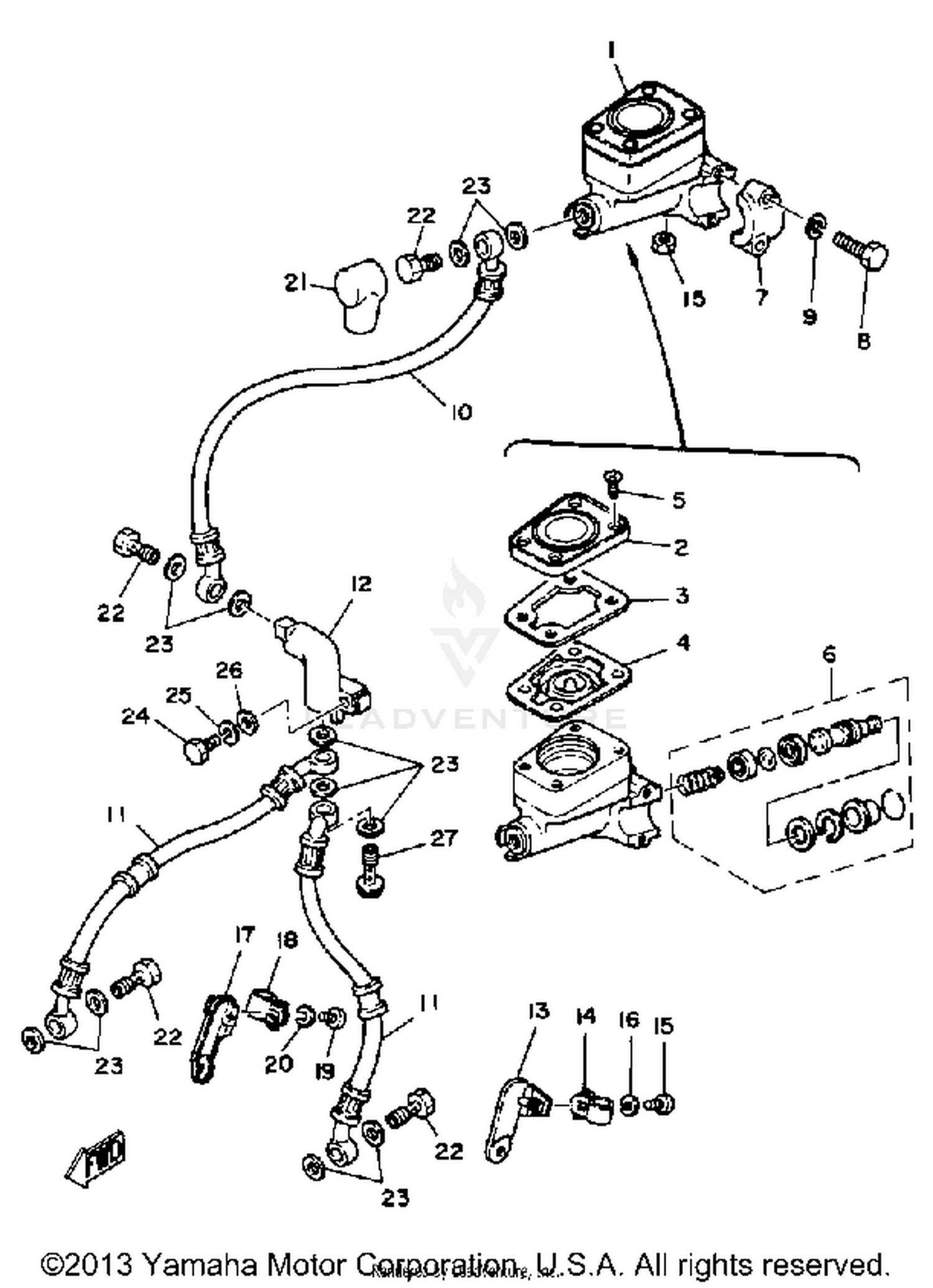

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MSTR CYLINDER ASSEMBLY
3J6-25850-00-00
|
$175.99 | ||
|
Unavailable |
|||
|
#2
RESERVOIR CAP ASSY
1J3-25852-01-00
|
$50.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET
1J3-25855-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#4
DIAPHRAM, RESERVOIR
1J3-25854-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-05040-00
|
$2.39 | ||
|
Unavailable |
|||
|
#6
CYLINDER KIT, MASTER
1J3-W0041-20-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER
1J3-25867-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
2G2-25872-01-00
|
$92.99 | ||
|
Unavailable |
|||
|
#11
HOSE, BRAKE 2
3H3-25873-00-00
|
$38.92 | ||
|
Unavailable |
|||
|
#12
JOINT
1J7-25885-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#13
HOLDER, BRKE HOSE 1
2H7-25875-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#14
CLAMP
90461-08031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#17
HOLDER, BRKE HOSE 2
2H7-25876-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
90461-08031-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#21
BOOT, MASTER CYLINDER
306-25862-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
