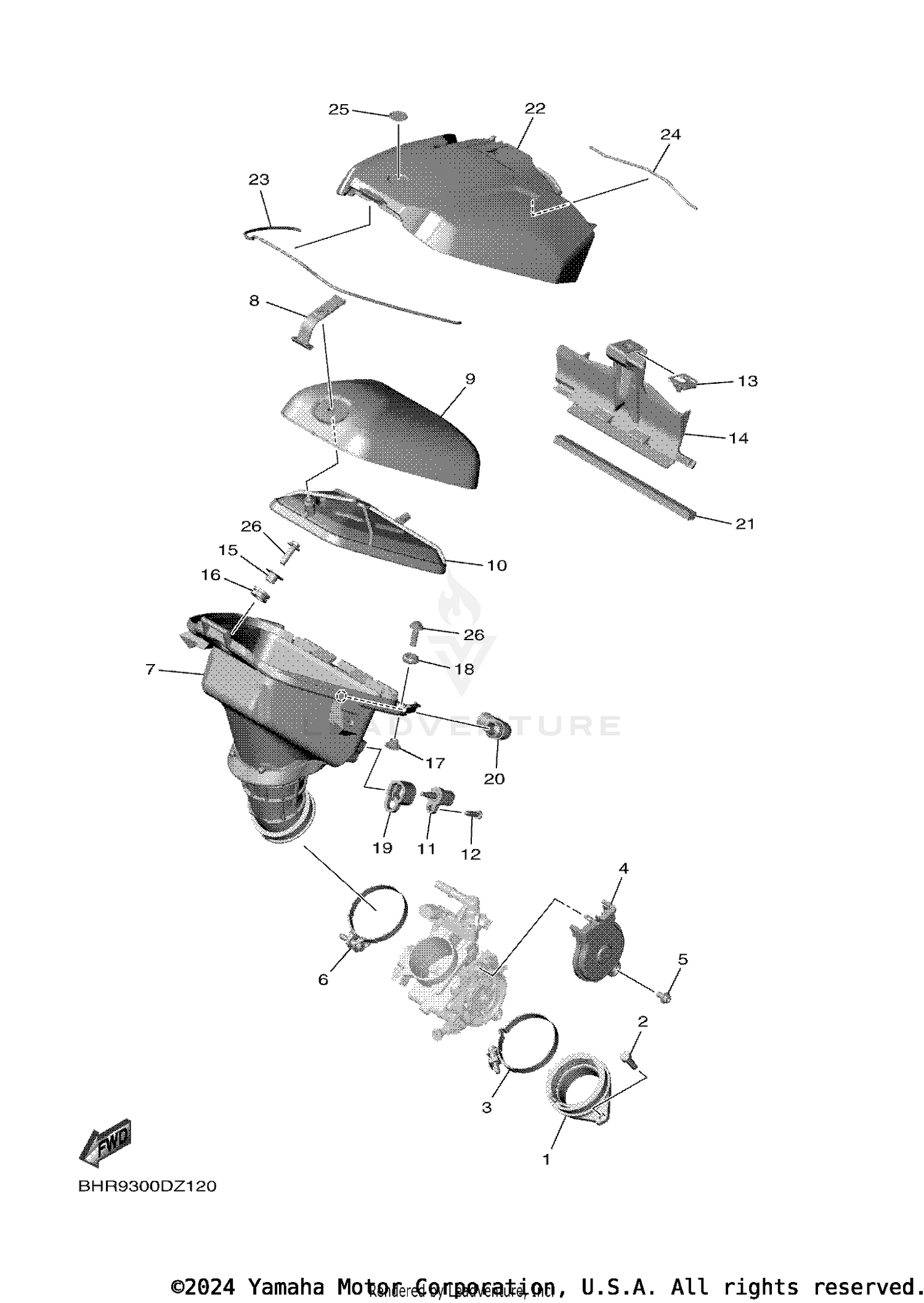

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
BR9-13597-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-60004-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 1
BR9-14293-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-05066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90450-58006-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
AIR FILTER CASE COMP.
BNK-14408-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#8
HOLDER, GUIDE
BHR-14459-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
ELEMENT, AIR CLEANER
BHR-14451-00-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GUIDE
BHR-14458-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
97702-50520-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, SPRING
2CR-2177L-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, CLEANER CASE
BHR-14422-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-071E0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-01027-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06273-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-12237-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER
20S-1445C-01-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE
B3J-14419-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#21
DAMPER, SEAT
BHR-24737-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#22
CAP, CLEANER CASE 1
BHR-14412-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL
BHR-14452-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
SEAL
1SL-14457-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
EMBLEM
4XV-2341B-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
90105-06203-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
