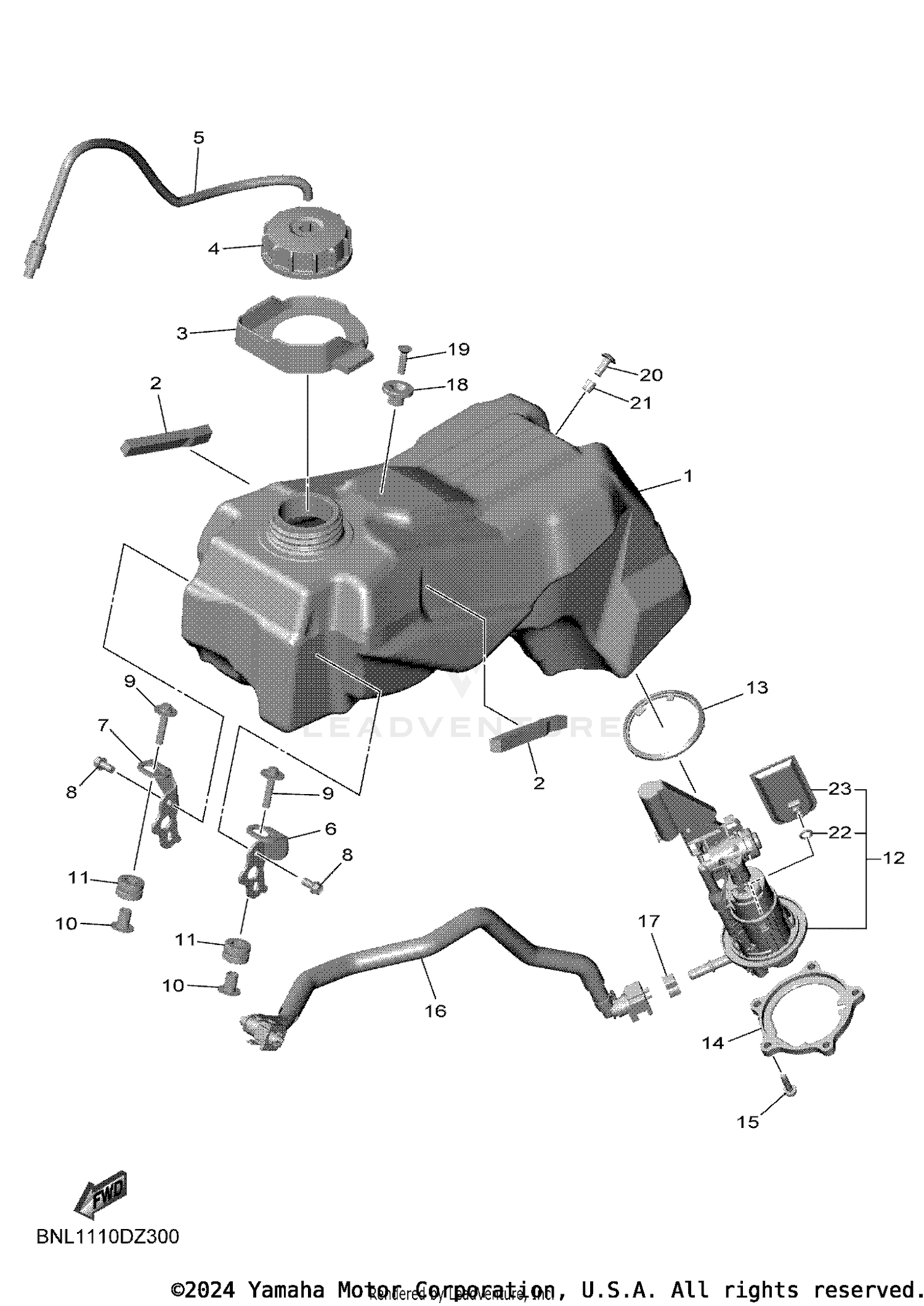

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BNK-24110-10-00
|
$1,091.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, PLATE
90520-10045-00
|
$2.90 | ||
|
Unavailable |
|||
|
#3
MOLD, FUEL TANK
BNK-24188-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
CAP ASSY
BR9-24610-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE
90445-08050-00
|
$9.49 | ||
|
Unavailable |
|||
|
#6
STAY, FUEL TANK 1
BNK-24115-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#7
STAY, FUEL TANK 2
BNK-24116-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06262-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06136-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-14038-00
|
$18.49 | ||
|
Unavailable |
|||
|
#12
FUEL PUMP COMP.
BNK-13907-00-00
|
$562.99 | ||
|
Unavailable |
|||
|
#13
SEAL
B3J-2414G-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, FUEL PUMP
B3J-24491-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, FUEL 1
BNK-13971-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#17
CLAMP 1
33D-24135-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, SEAT
4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, COUNTERSUNK
90151-06005-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW
90149-06021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06284-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
3C1-24512-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
. .FILTER
B3J-13915-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
