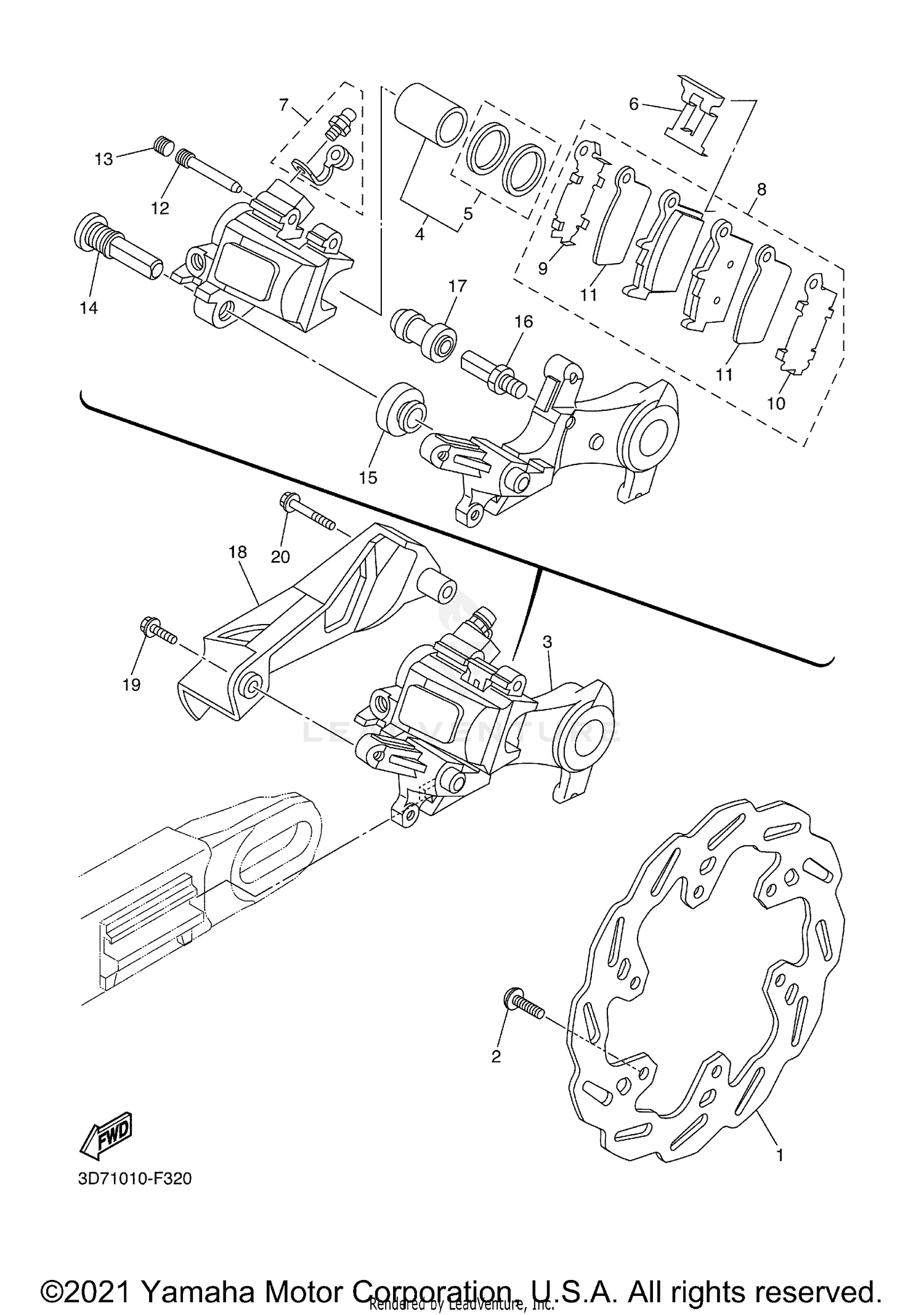

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK, REAR BRAKE 2
3D7-2582W-00-00
Superseded by 3D7-2582W-02-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
90149-06001-00
Superseded by 90149-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
3D7-2580W-00-00
|
$323.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5UN-W0057-50-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5UN-W0047-50-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-50-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
1C3-W0046-B0-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, CALIPER
5UN-25828-60-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
5UN-25827-60-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSULATOR, HEAT
5UN-22898-60-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PAD
8CR-25924-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLUG
5DH-25916-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, SLIDE
5DH-25914-50-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SLIDE
5UN-25914-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT 2
1UY-25937-51-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PROTECTOR
1C3-27491-50-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-06030-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
