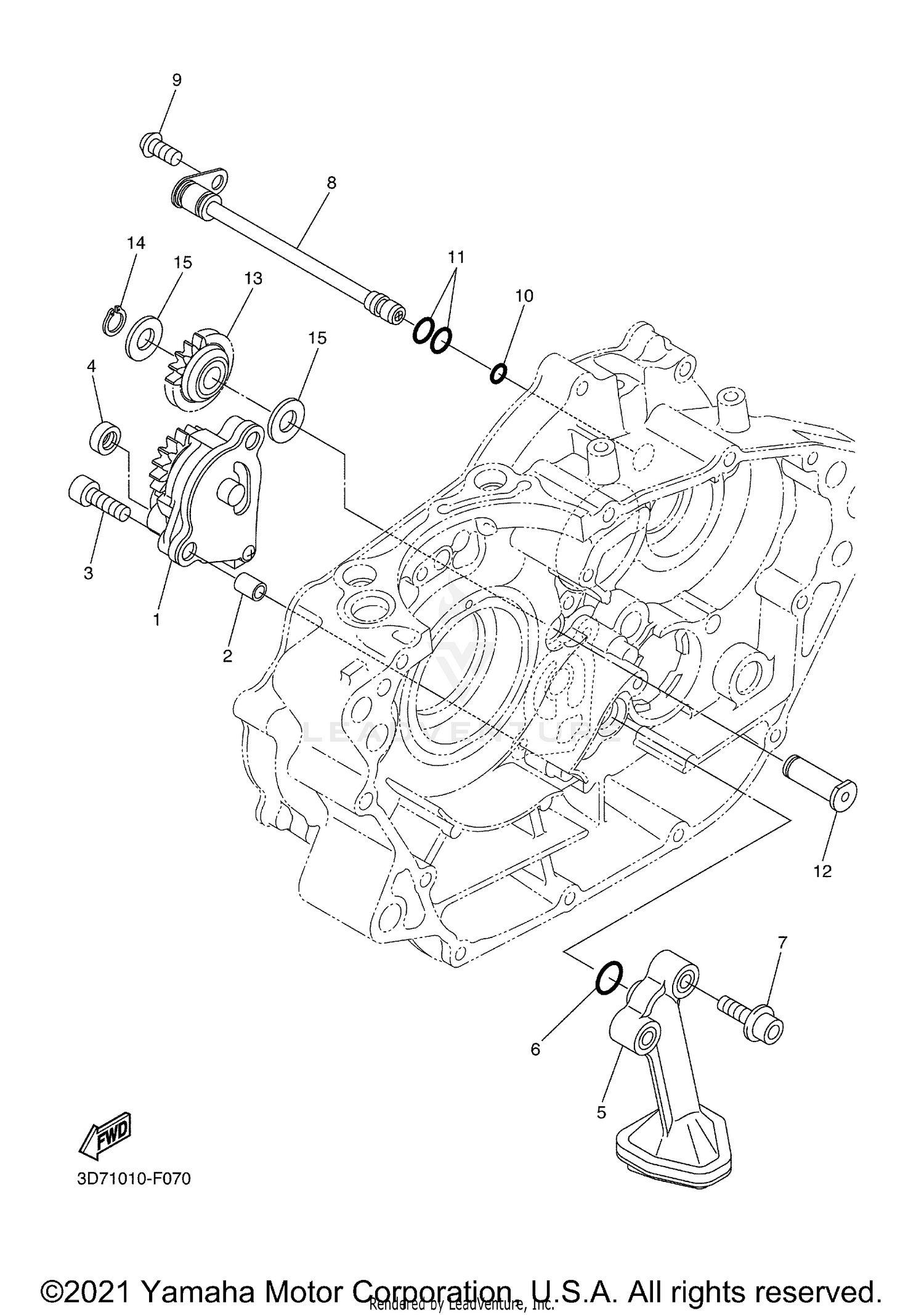

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
3D7-13300-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91312-06030-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-08178-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
STRAINER HOUSING ASSY
3D7-13410-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-12648-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, DELIVERY 2
3D7-13171-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-06564-00
Superseded by 93210-07540-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING
93210-09754-00
Superseded by 93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SHAFT, IDLE GEAR
3D7-13342-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, OIL PUMP IDLE
3D7-13341-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10614-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
