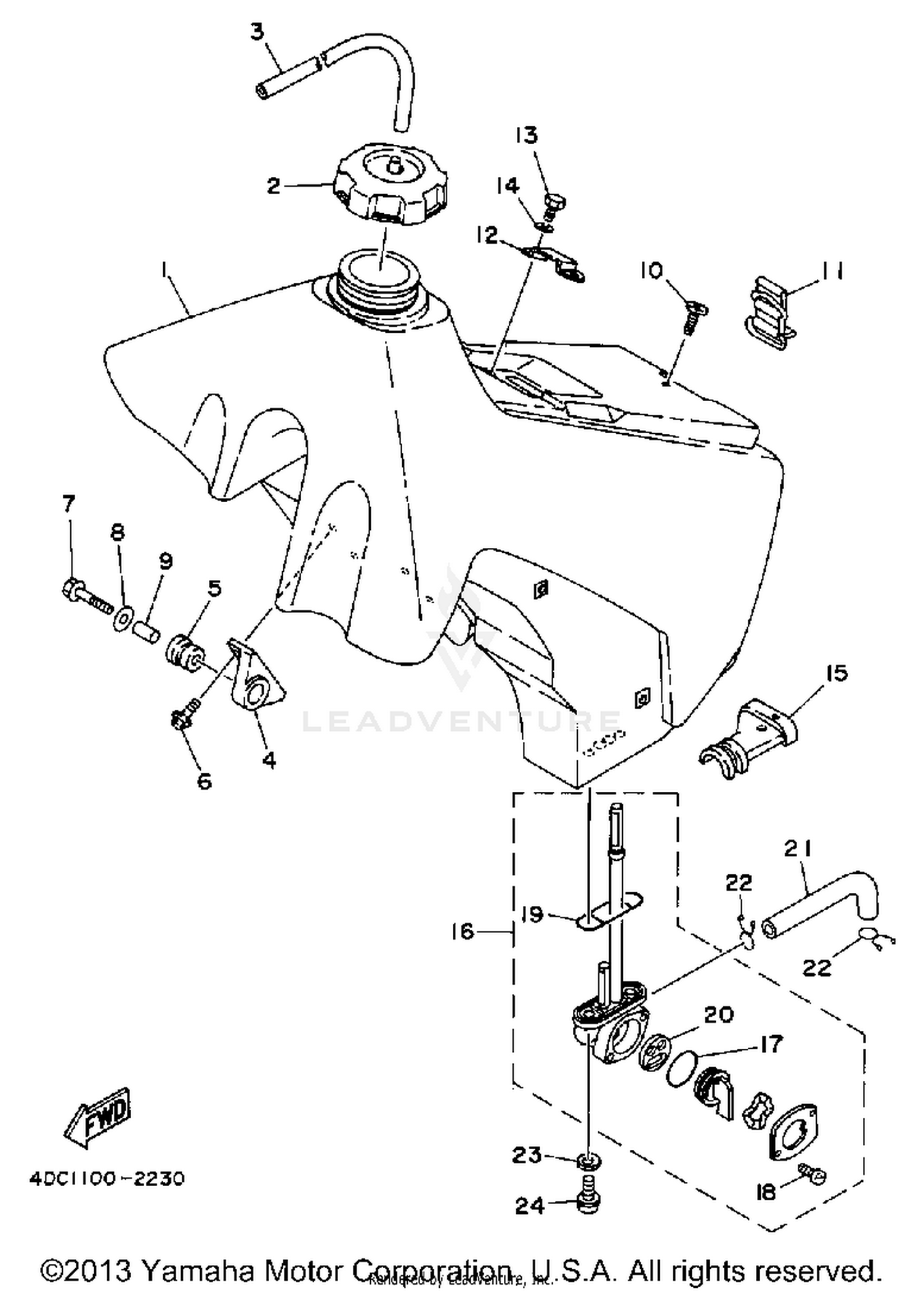

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
4DC-24110-01-00
|
$318.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06707-00
Superseded by 95024-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLG.(SMALL HEAD)
95023-06035-00
Superseded by 95024-06035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06697-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BIND
98980-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, TANK FITTING 1
3SP-24173-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SEAT
5X6-2412F-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
1LX-24181-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL COCK ASSEMBLY 1
4AA-24500-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#17
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE 3
4AA-24311-00-00
Superseded by 25H-24313-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
