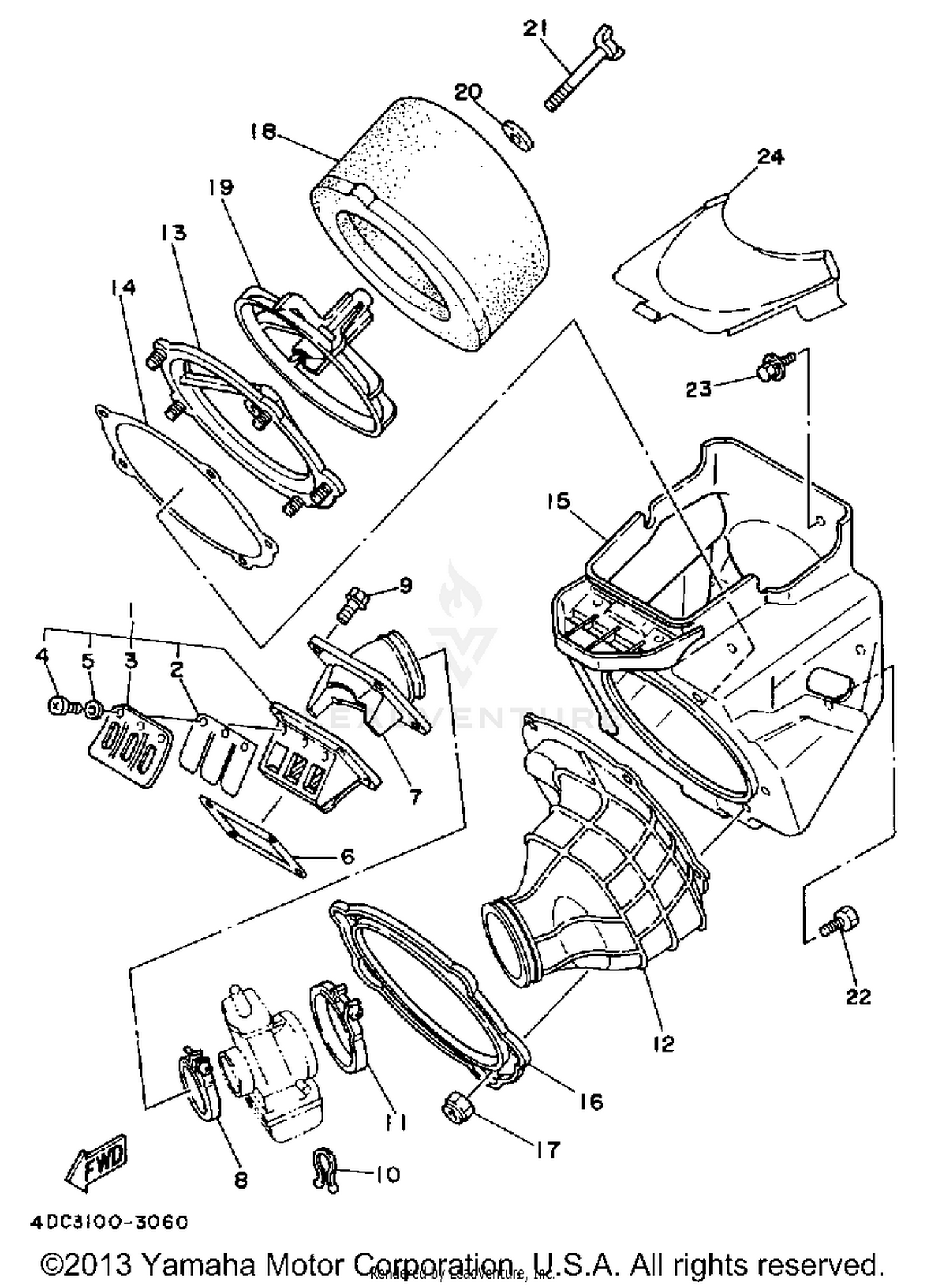

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
4DC-13610-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
3SP-13613-00-00
Superseded by 3SP-13613-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4DA-13616-00-00
Superseded by 8DJ-13616-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, VALVE SEAT
2K7-13621-10-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
4DC-13565-00-00
|
$110.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, HOSE
90460-51109-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE
90460-68230-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLNR 1
4AA-14453-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#13
HOLDER, GUIDE
3JD-14459-00-00
Superseded by 3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
3JD-14462-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
AIR CLEANER CASE COMP. (3XJ-W14
3XJ-W1441-01-00
|
$226.99 | ||
|
Unavailable |
|||
|
#16
PLATE
3JD-14477-00-00
Superseded by 5MV-14477-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ELEMENT, AIR CLEANER
3JD-14451-00-00
Superseded by 3JD-14451-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE
3JD-14458-00-00
Superseded by 3JD-14458-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (SMALL HEAD)
95023-06010-00
Superseded by 95024-06010-00
|
$5.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, WITH WASHER
90119-06185-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CASE
3XJ-1441A-00-00
|
$50.99 | ||
|
Unavailable |
|||
