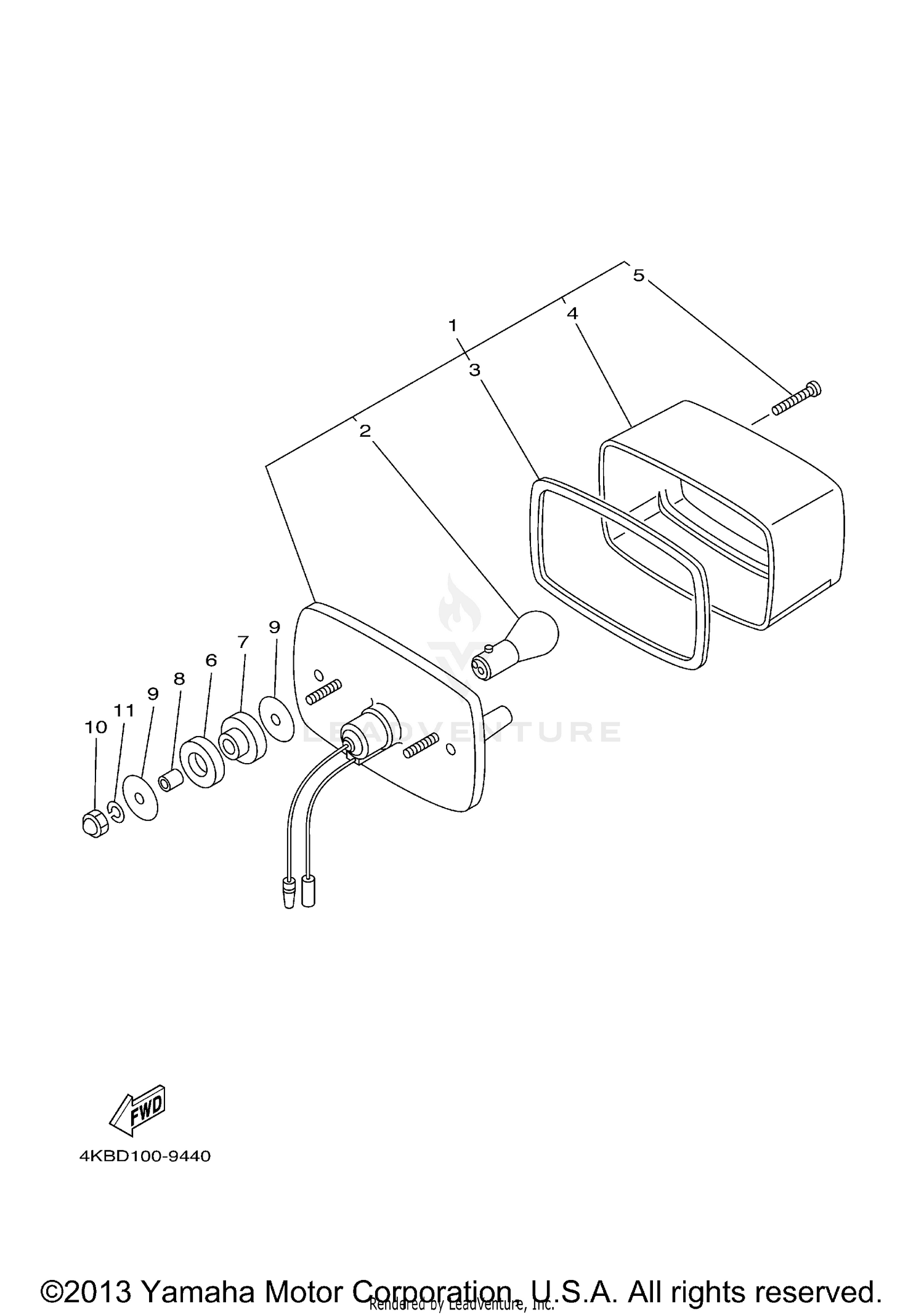

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
4XE-84710-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-7.5W)
3GD-84714-00-00
Superseded by 3GD-84714-00-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, LENS
1K8-84523-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
3L6-84521-00-00
Superseded by 1K8-84521-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
2E9-84524-00-00
Superseded by 97780-40130-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-14077-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-14088-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-07007-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06074-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-06800-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
