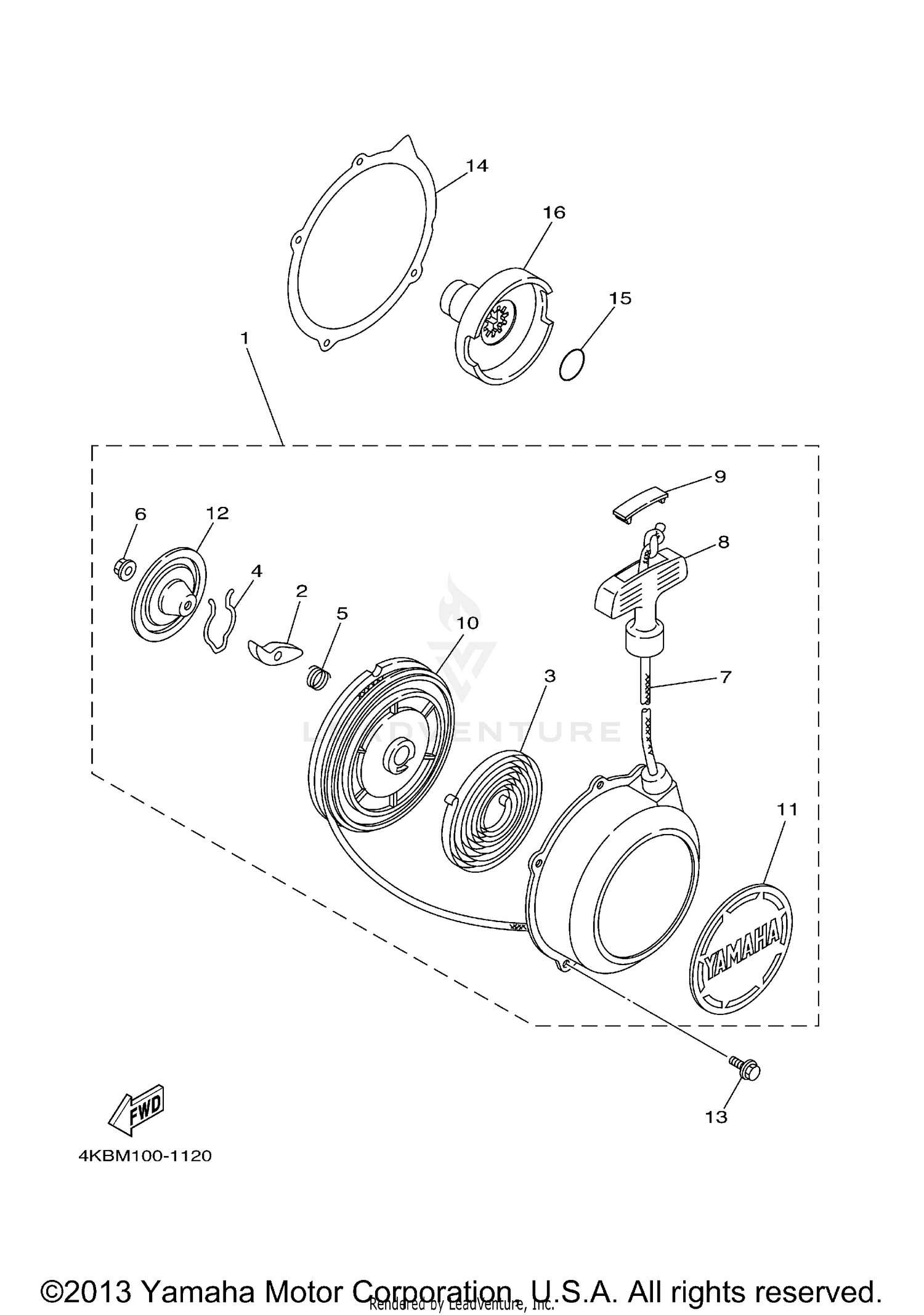

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSY
1UY-15710-10-00
Superseded by 1UY-15710-20-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAWL, DRIVE
21V-15741-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, STARTER
21V-15713-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FRICTION
21V-15715-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
21V-15767-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WIRE, STARTER
21V-15751-00-00
Superseded by 89A-15751-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HANDLE, STARTER
3X3-15755-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
21V-15779-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DRUM, SHEAVE
24W-15714-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM
5GH-15443-00-00
Superseded by 5GH-15443-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DRIVE
1UY-15716-00-00
Superseded by 21V-15716-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
3GD-15699-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-16290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PULLEY, STARTER
1UY-15723-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
