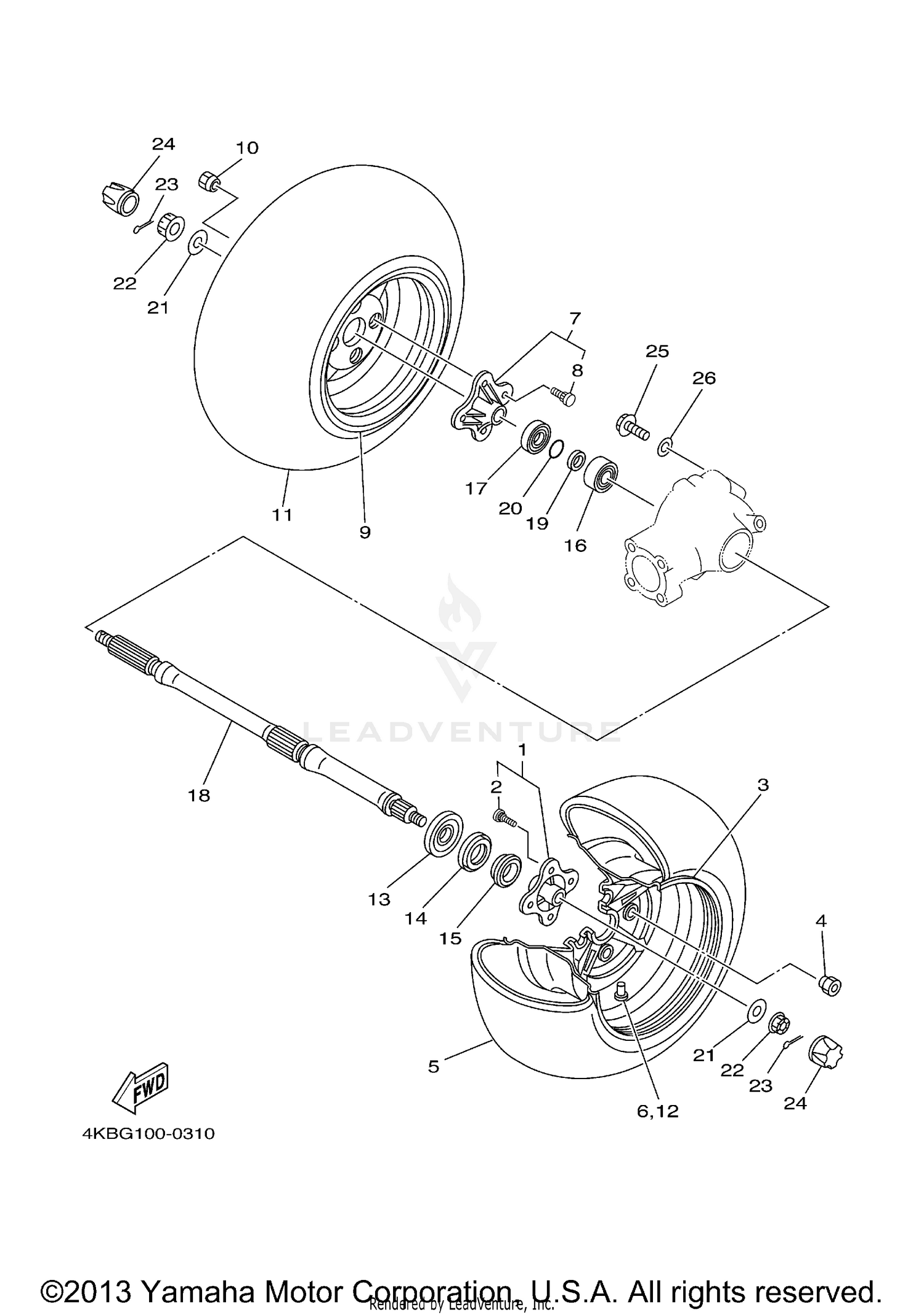

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
2HR-25383-01-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
REAR WHEEL COMP.
4KB-25390-01-35
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR WHEEL COMP.
4KB-25390-01-MA
|
$321.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10540-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
TIRE (AT23X10-12 KT407)
94110-1205P-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR, WHEEL
2HR-25383-01-00
|
$172.99 | ||
|
Unavailable |
|||
|
#8
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$3.55 | ||
|
Unavailable |
|||
|
#9
REAR WHEEL COMP.
4KB-25390-01-35
|
$271.99 | ||
|
Unavailable |
|||
|
#
REAR WHEEL COMP.
4KB-25390-01-MA
|
$321.99 | ||
|
Unavailable |
|||
|
#10
NUT
90179-10540-00
|
$4.95 | ||
|
Unavailable |
|||
|
#11
TIRE (AT23X10-12 KT407)
94110-1205P-00
|
$170.99 | ||
|
Unavailable |
|||
|
#12
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$18.49 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-00805-00
Superseded by 93306-00809-00
|
$65.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93106-47040-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, HUB DUST
4SH-25367-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-20531-00
|
$55.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL SEAL
93102-38383-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE, WHEEL
4KB-25381-12-00
|
$401.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-284T0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-162L6-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP, WHEEL
5GT-2512A-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10751-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
