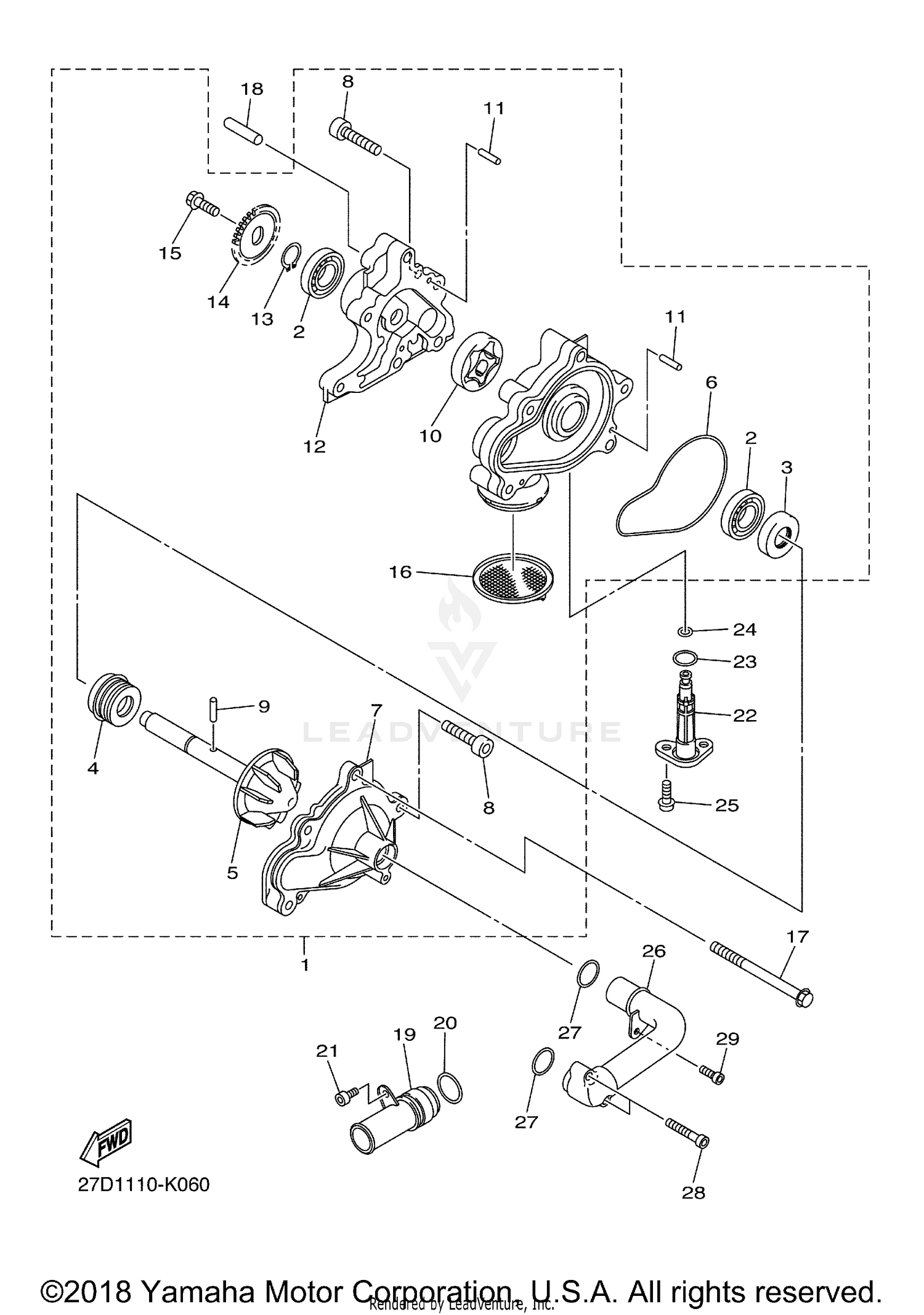

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
3D8-12420-03-00
|
$407.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL SEAL
93102-12372-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
5VK-12438-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
3D8-12450-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
3D8-12439-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HOUSING
3D8-12422-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, DOWEL
93603-17070-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ROTOR ASSY 1
3D8-13310-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93603-12007-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, ROTOR
3D8-13336-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPROCKET, DRIVEN
3D8-13355-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STRAINER, OIL
3D8-13411-00-00
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-08049-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 9
3D8-1248E-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BODY, DRAIN COCK
27D-12562-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-15639-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING
93210-07003-00
Superseded by 93210-07540-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, WATER
3D8-12564-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-235A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90110-06208-00
Superseded by 91312-06035-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
