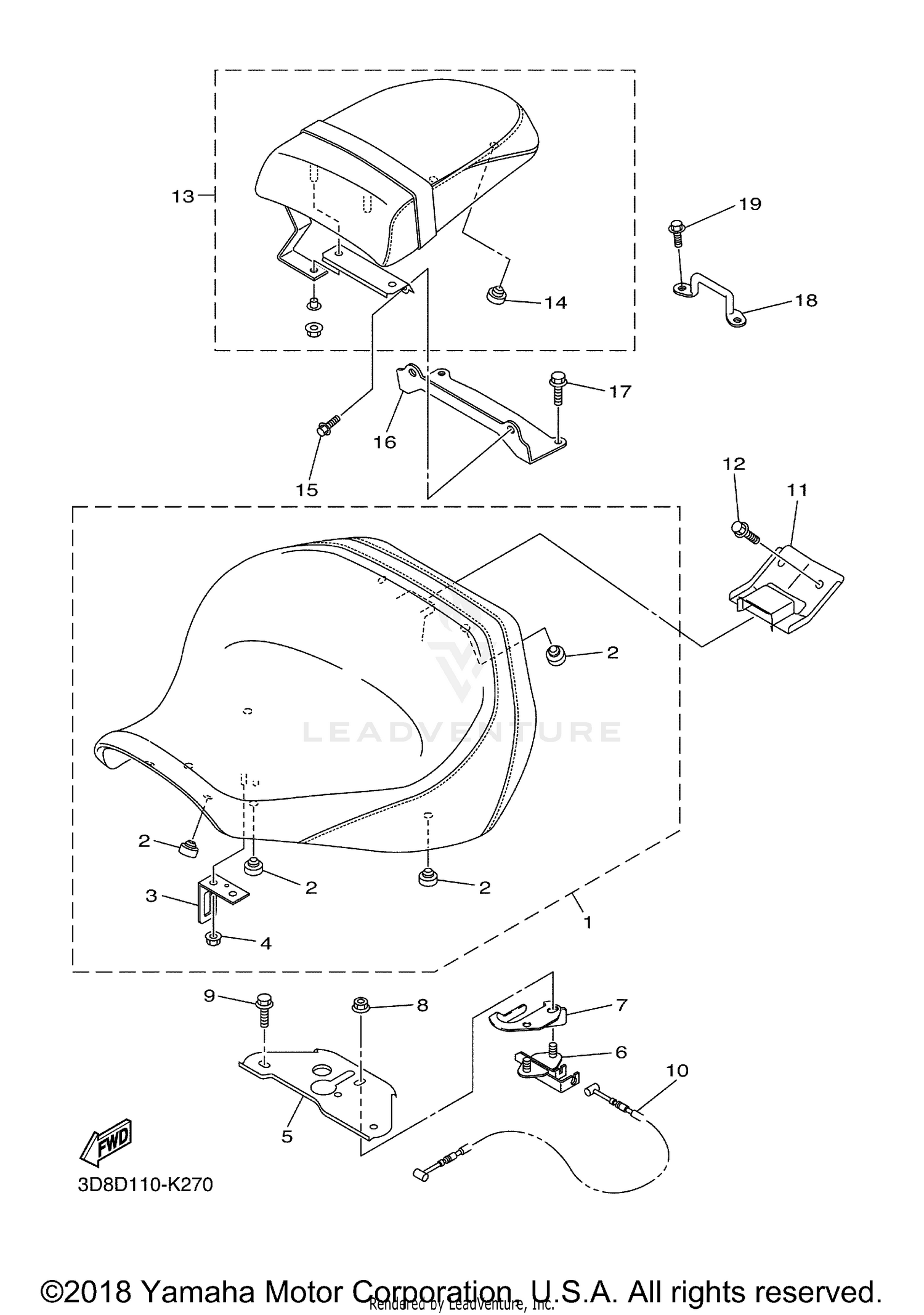

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
3D8-24710-10-00
Superseded by 3D8-24710-11-00
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SEAT
4NK-24728-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BRACKET, SEAT 1
3D8-21341-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT LOCK ASSY
4BP-24780-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
27D-24792-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
5PX-2478E-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
3D8-2475N-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92012-08012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANDEM SEAT ASSY
3D8-24750-01-00
Superseded by 3D8-24750-02-00
|
$249.99 | ||
|
Unavailable |
|||
|
#14
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
BRACKET 6
3D8-2475R-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
Unavailable |
|||
