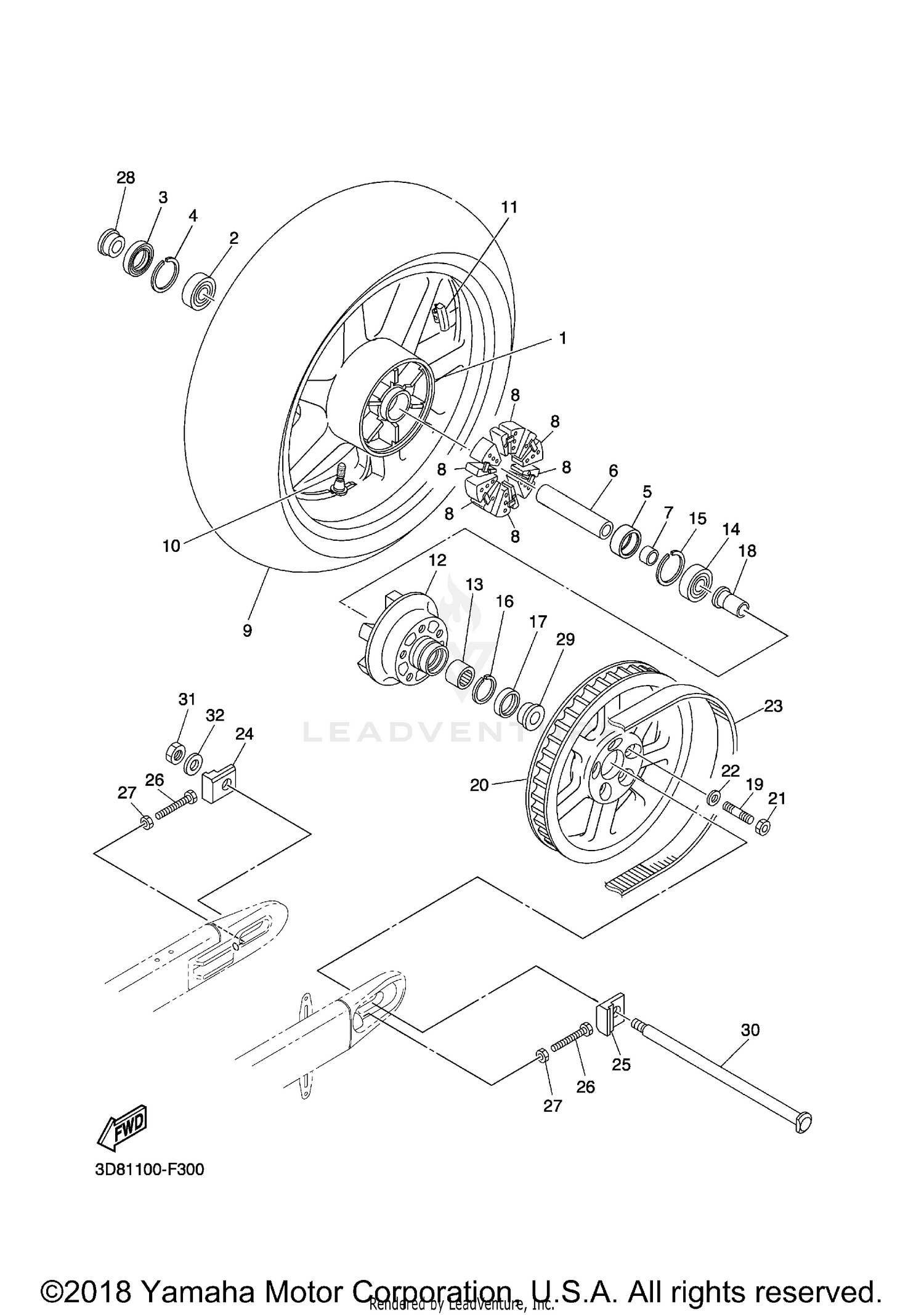

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
3D8-25338-00-MA
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-30437-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93106-28001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
99009-52500-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING
93320-32811-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, BEARING
3D8-25317-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, WHEEL
1D7-25383-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
4WM-25364-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (170/70B16M/C 75H EXEDR)
94117-16002-00
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#
TIRE (170/70B16M/C 75H K555)
94117-16001-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLUTCH, HUB
3D8-25366-00-00
Superseded by 3D8-25366-20-00
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93311-32698-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-30437-00
|
$72.99 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
99009-52500-00
|
$13.49 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
93450-35163-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93106-30004-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, WHEEL
3D8-25376-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD
95612-12630-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET, DRIVEN (70T)
3D8-25470-01-00
|
$726.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U
95614-12100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-12045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BELT
3D8-46241-00-00
Superseded by 3D8-46241-01-00
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PULLER, CHAIN 1
5PX-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 2
5PX-25389-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90101-08013-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEXAGON
95302-08600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
COLLAR
90387-20033-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-202X9-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
3D8-25381-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SELF-LOCKING
90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-185R7-00
Superseded by 90201-18620-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
