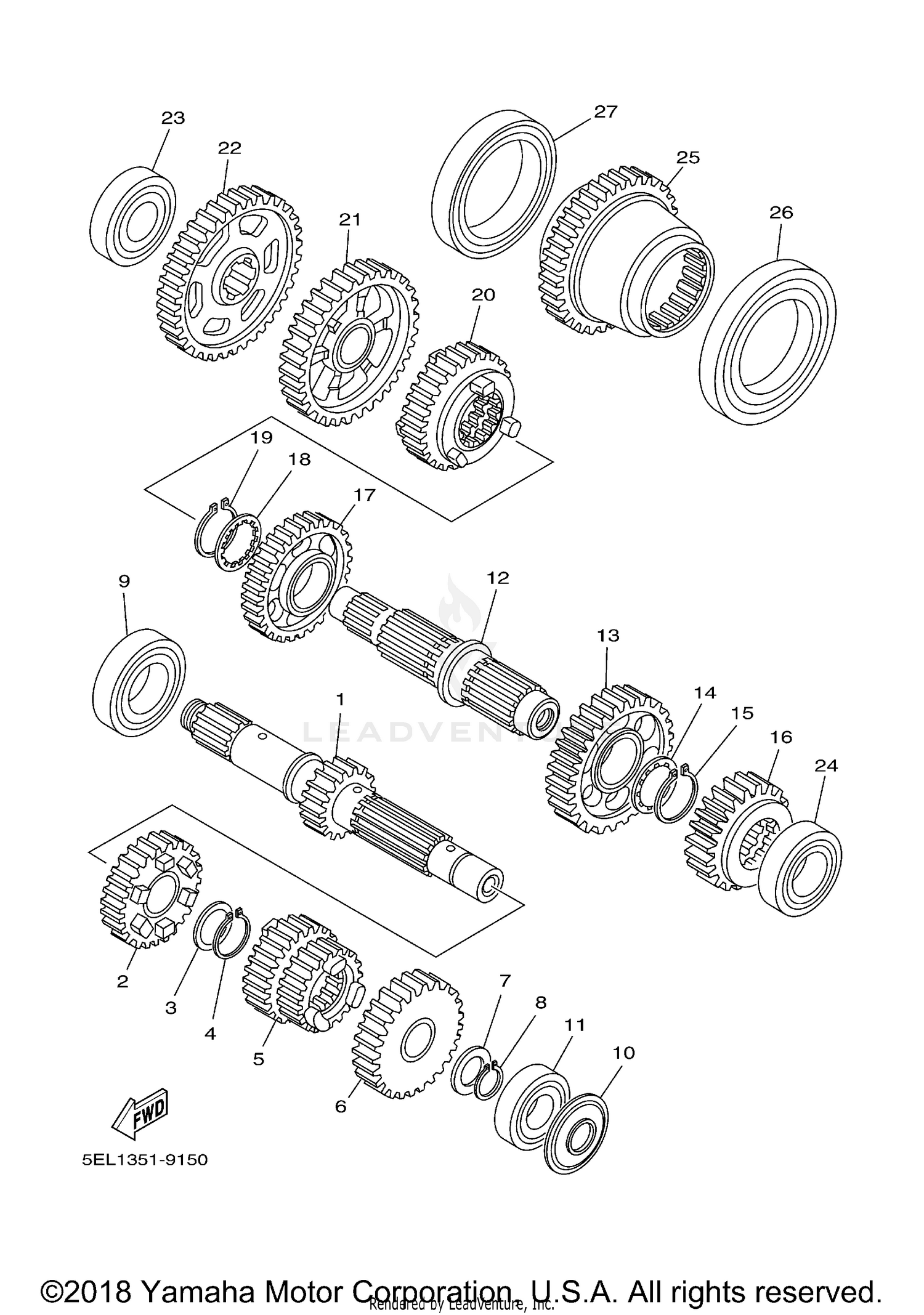

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (17T)
5EL-17411-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 4TH PINION (31T)
5EL-17141-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-21332-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-25400-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 2ND PINION (24T/28T)
5EL-17121-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH PINION (34T)
5EL-17151-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BEARING
93306-30525-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93104-20068-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRIVE AXLE ASSY
5EL-17402-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 2ND WHEEL (40T)
5EL-17221-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90209-28331-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-31172-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 5TH WHEEL (29T)
5EL-17251-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 3RD WHEEL (36T)
5EL-17231-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-28331-00
|
$18.49 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93440-31172-00
|
$15.49 | ||
|
Unavailable |
|||
|
#20
GEAR, 4TH WHEEL
5EL-17241-00-00
Superseded by 5KS-17241-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 1ST WHEEL (40T)
4X7-17211-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, MIDDLE DRIVE (47T)
5EL-17582-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (B6204)
93306-20401-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (B6205DU8)
93306-20550-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, MIDDLE DRIVEN (25T)
5EL-17583-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93316-01201-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93306-91201-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
