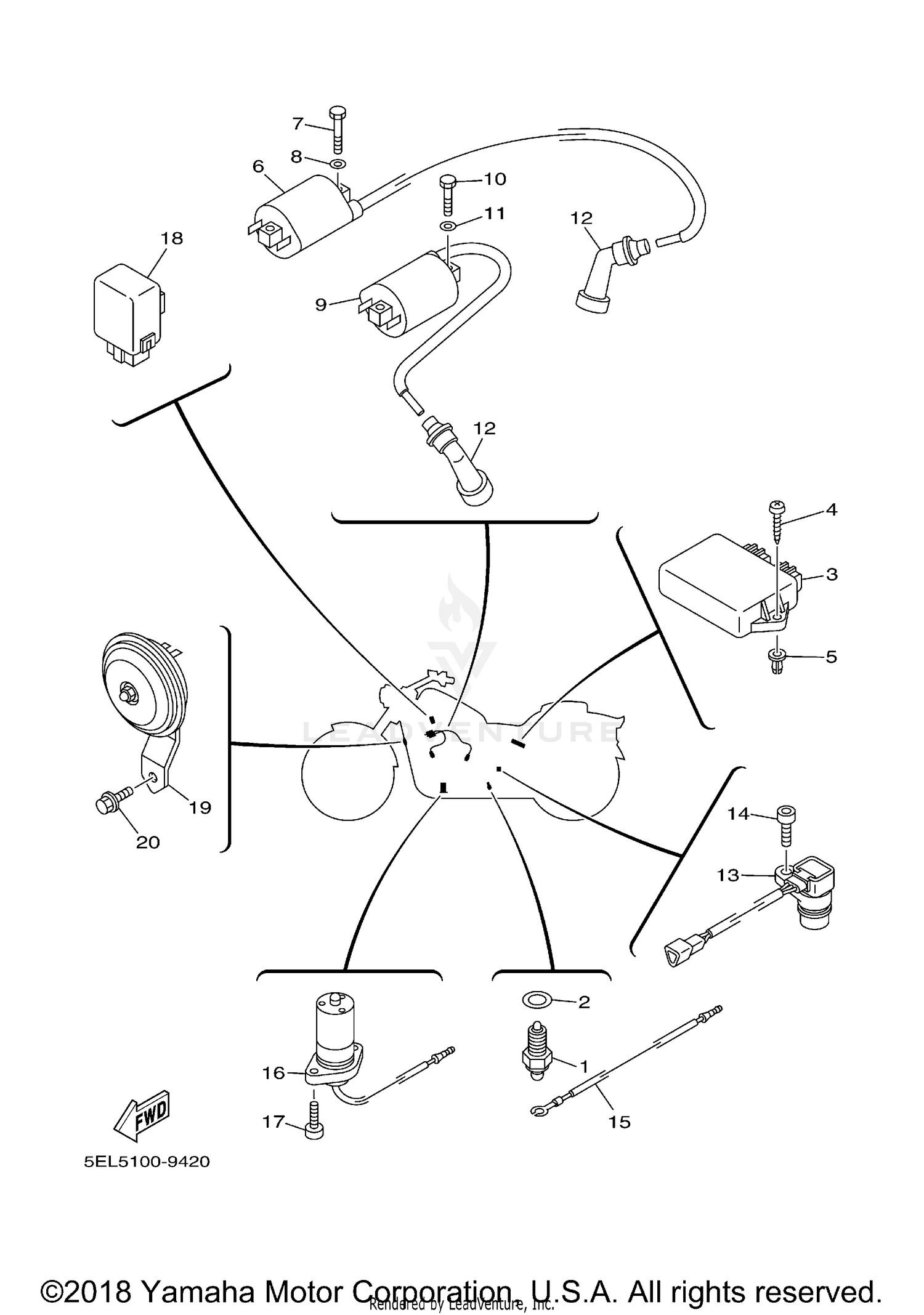

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
IGNITOR UNIT ASSY
5EL-82305-00-00
|
$1,063.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97707-60016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
IGNITION COIL ASSY
5EL-82310-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
5EL-82320-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#12
PLUG CAP ASSY
5EL-82370-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, SPEED
5EL-83755-00-00
Superseded by 5EL-83755-02-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, SUB LEAD
5EL-82509-00-00
Superseded by 4FL-82541-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
OIL LEVEL GAUGE ASSY
5EL-85720-01-00
Superseded by 5EL-85720-02-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (4MY)
91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLASHER RELAY ASSY
5EL-83350-00-00
Superseded by 5EL-83350-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN
55V-83371-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WASHER BASED
90105-082A5-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
