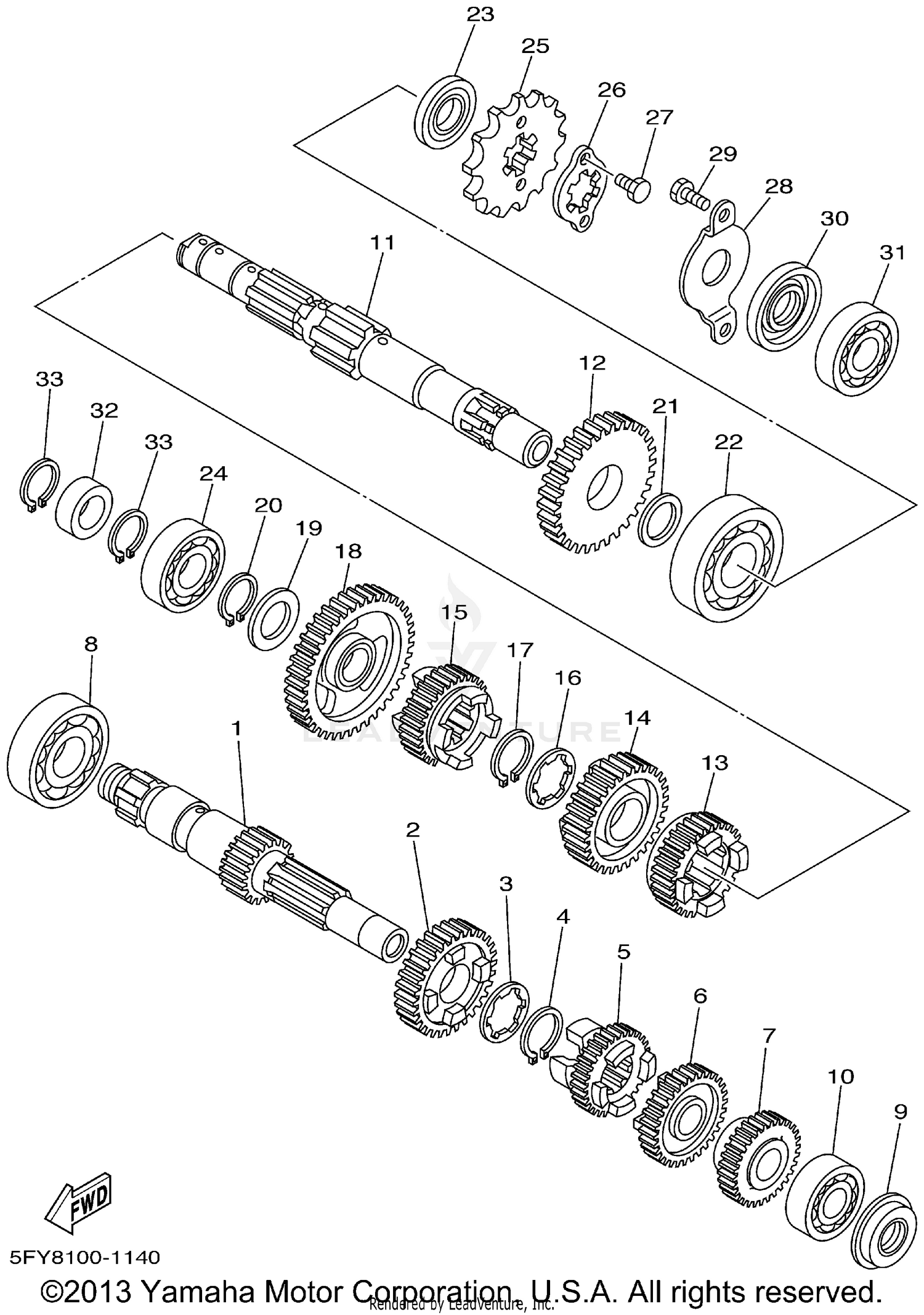

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (12T)
15A-17411-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (28T)
15A-17151-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-16209-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 2ND PINION (22T)
5H0-17121-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 4TH PINION (25T)
15A-17141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (19T)
15A-17121-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6204)
93306-20401-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-15101-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20201-00
Superseded by 93306-20211-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSY
2JX-17402-00-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL (34T)
15A-17221-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 4TH WHEEL (26T)
15A-17241-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 3RD WHEEL (29T)
15A-17231-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 6TH WHEEL (23T)
1EV-17251-00-00
Superseded by 5MP-17261-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-18208-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GEAR, 1ST WHEEL (34T)
15A-17211-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-17257-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-220J8-00
Superseded by 90201-225M9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93306-20580-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-22389-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPROCKET, DRIVE (14T)
93823-14149-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, SPROCKET
2JX-17456-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON
97007-05010-00
Superseded by 97027-05010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, COVER
2JX-17471-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98507-06010-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
OIL SEAL
93102-17187-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93306-20313-00
Superseded by 93306-20335-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER
90560-17368-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
Unavailable |
|||
