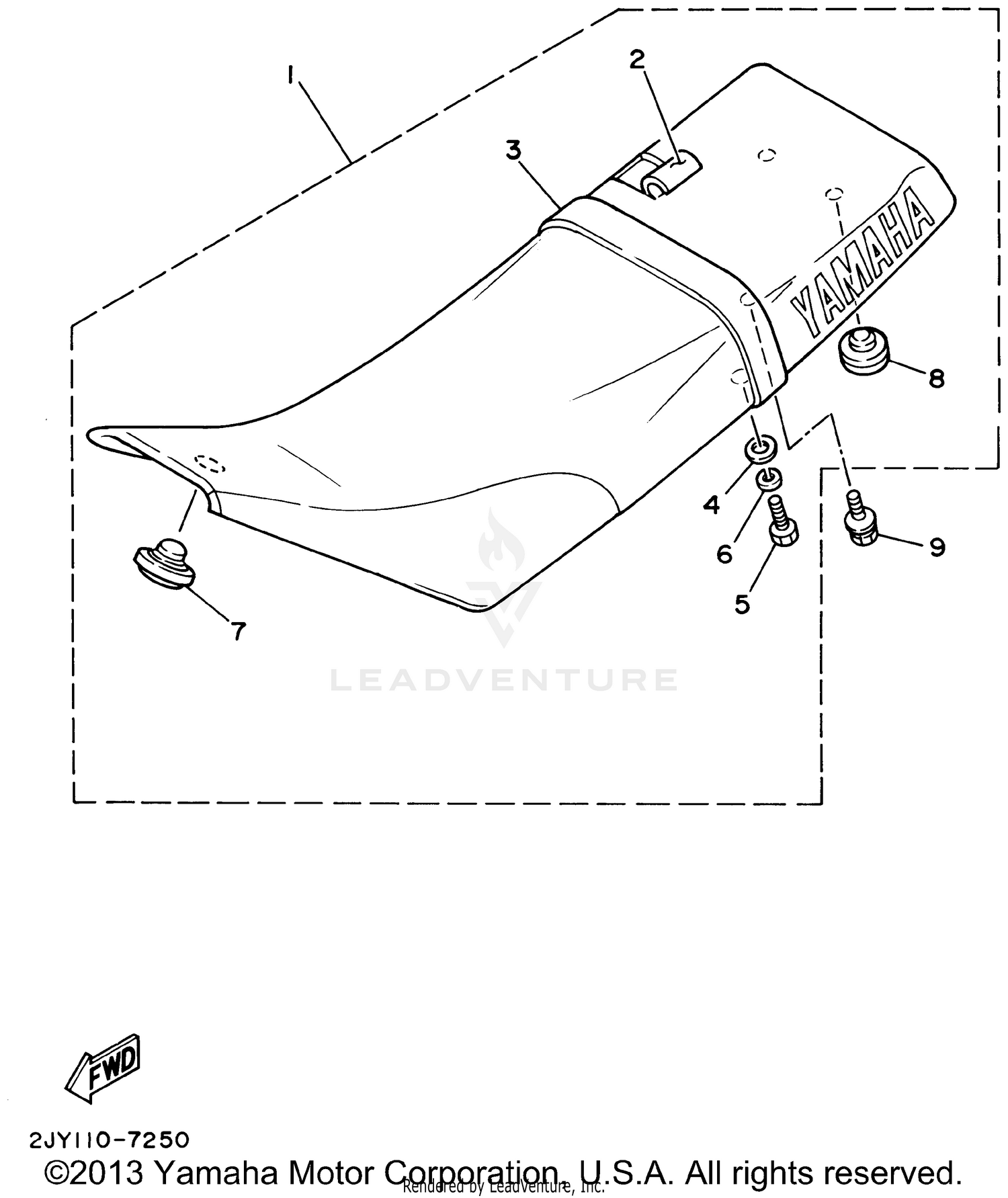

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DOUBLE SEAT ASSY
2JX-24770-90-00
|
$349.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
2JX-24731-90-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, SEAT
2JX-24734-60-00
|
$19.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
DAMPER, SEAT
18A-24723-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PAD, SEAT
1L9-24741-A0-00
Superseded by 1L9-24741-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06063-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
