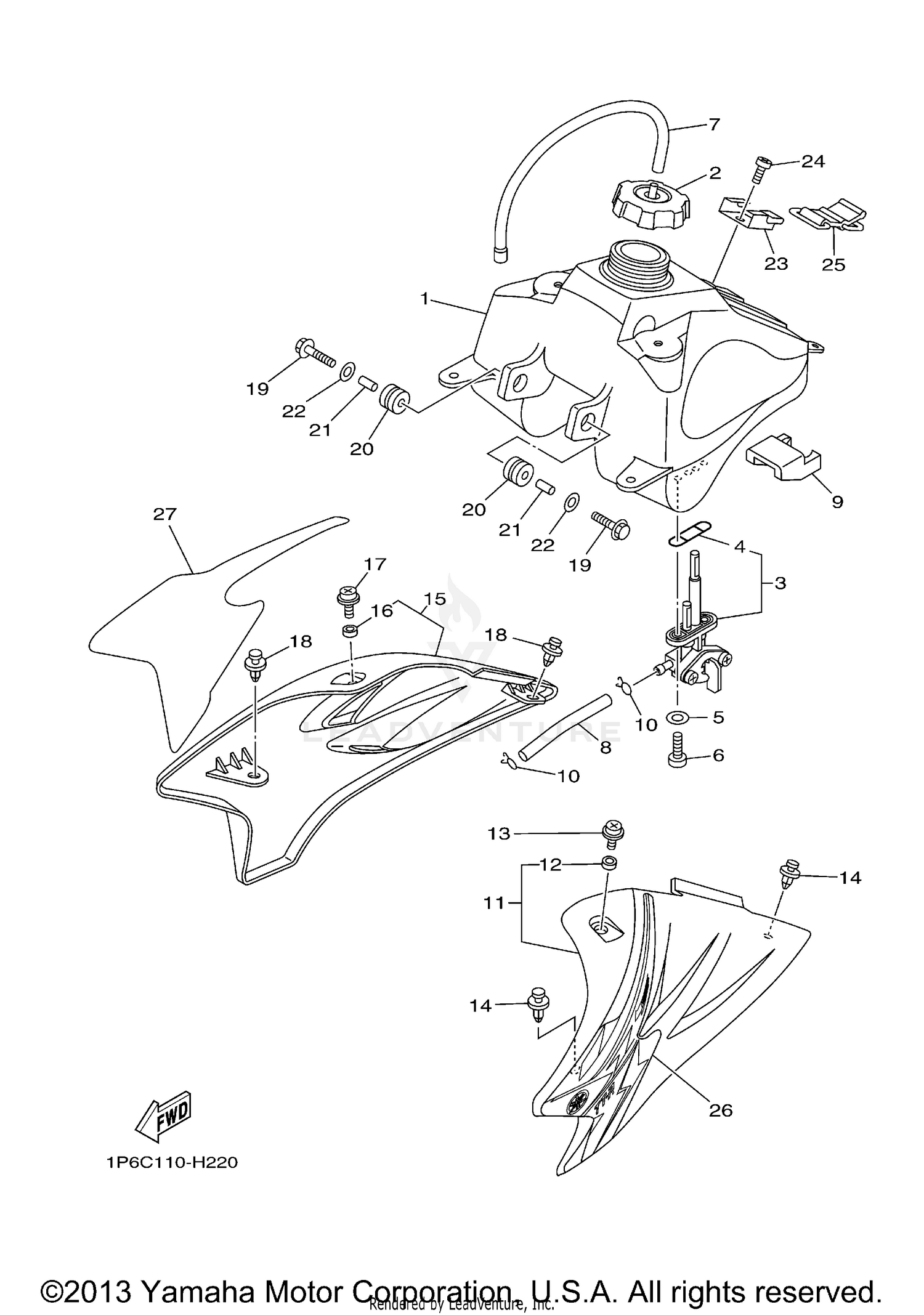

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1P6-24110-10-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2FJ-24610-00-00
Superseded by 2FJ-24610-20-00
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
FUEL COCK ASSY 1
1P6-24500-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
1P6-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIPE, BREATHER
1P6-F1826-00-00
Superseded by 1P6-F1826-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FUEL 1
1P6-24311-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 1
1P6-F4181-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-09854-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCOOP AIR ASSY. 1
1P6-F137A-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-07805-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-06182-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCOOP AIR ASSY. 2
1P6-F137B-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-07805-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
SCREW, WITH WASHER
90159-06182-00
|
$10.49 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-07076-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
BOLT,FLANGE
95807-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-18803-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-07804-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06072-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, FUEL TANK 2
1P6-F4116-00-00
Superseded by 1P6-F4116-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, BIND
9890N-06010-00
Superseded by 98907-06010-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BAND, TANK FITTING 1
1P6-F4173-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GRAPHIC
1P6-F4244-30-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GRAPHIC
1P6-F4246-30-00
|
$38.99 | ||
|
Unavailable |
|||
