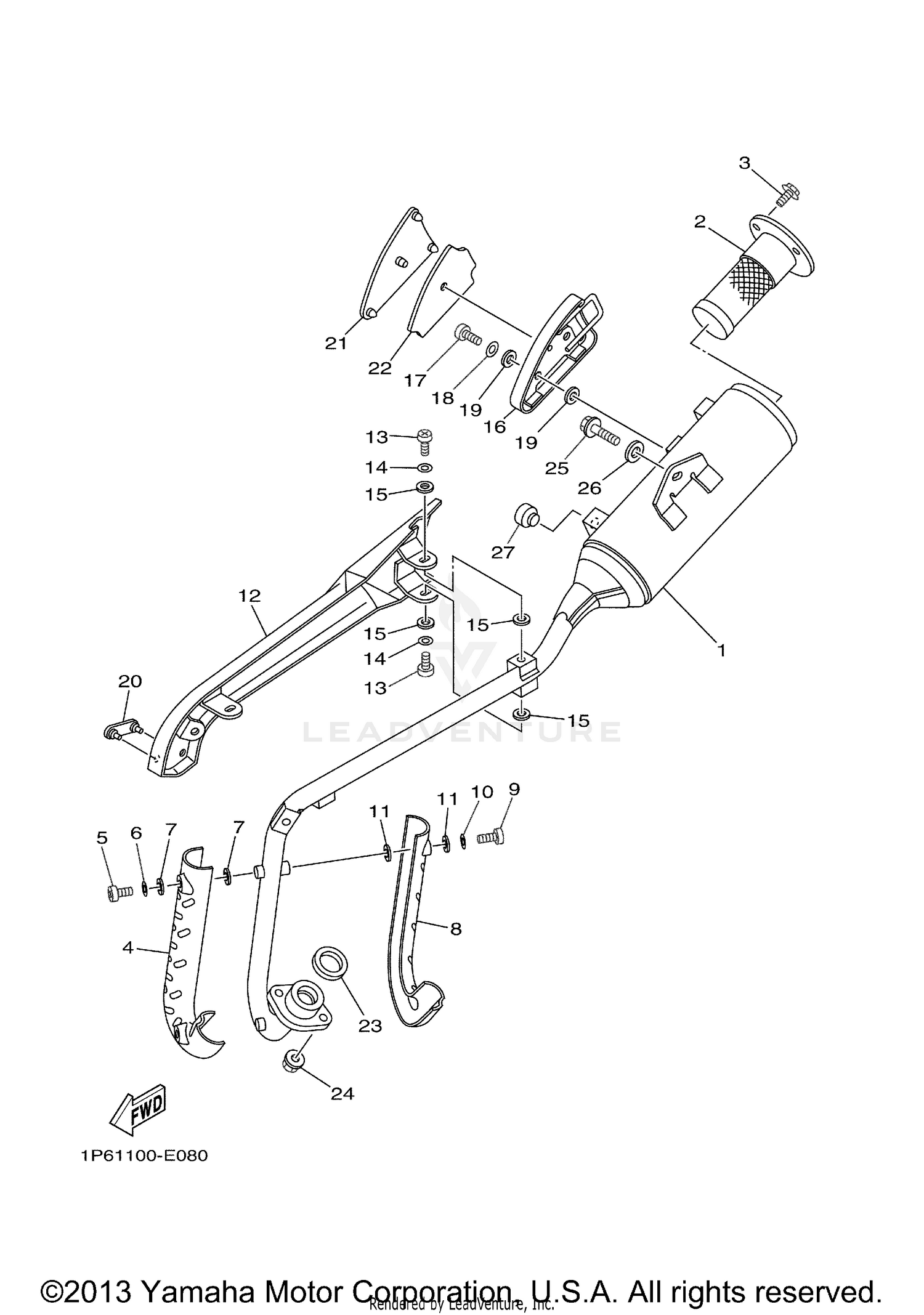

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER 1
1P6-E4711-00-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPARK ARRESTER ASSY
1P6-14780-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, MUFFLER 1
1P6-E4718-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, PROTECTOR
1P6-E4766-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, MUFFLER 2
1P6-E4728-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98507-05008-00
|
$3.85 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#11
WASHER, PROTECTOR
1P6-E4766-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#12
PROTECTOR, MUFFLER 3
1P6-E4738-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98507-06010-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-05809-00
Superseded by 90201-05017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, SILENCER
1P6-E4758-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98507-06010-00
|
$3.85 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-05809-00
Superseded by 90201-05017-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
COVER, 1
1P6-E479H-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER 2
1P6-E479J-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
MAT 1
1P6-E4733-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, EXHAUST PIPE
1P6-E4613-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
9570N-06500-00
Superseded by 95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE
9581N-08030-00
Superseded by 95812-08030-00
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
1P6-E4617-00-00
Superseded by 90201-08048-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
DAMPER, LOCATING 1
22W-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
