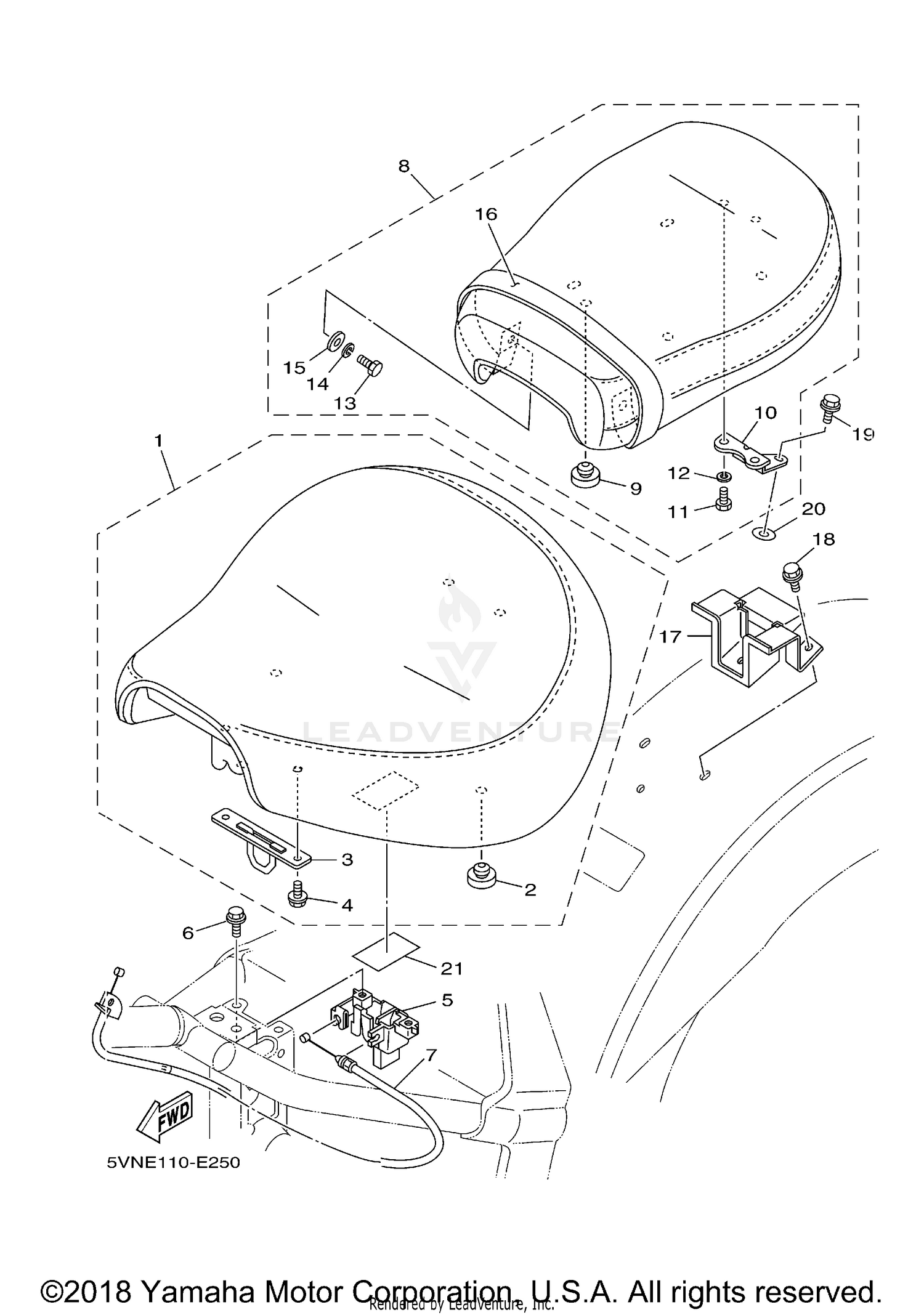

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5VN-24710-00-00
Superseded by 5VN-24710-01-00
|
$264.99 | ||
|
Unavailable |
|||
|
#2
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SEAT
4WM-24728-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SEAT LOCK ASSY
4JP-24780-03-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-060A6-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CABLE, SEAT LOCK
4WM-2478E-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANDEM SEAT ASSY
5VN-24750-00-00
Superseded by 5VN-24750-01-00
|
$241.99 | ||
|
Unavailable |
|||
|
#9
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
STAY, SEAT
4NK-2471A-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, SEAT
4WM-24734-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT LEVER 1
4WM-2475H-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06048-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
5VN-24736-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, TIRE
4NK-21668-A0-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
