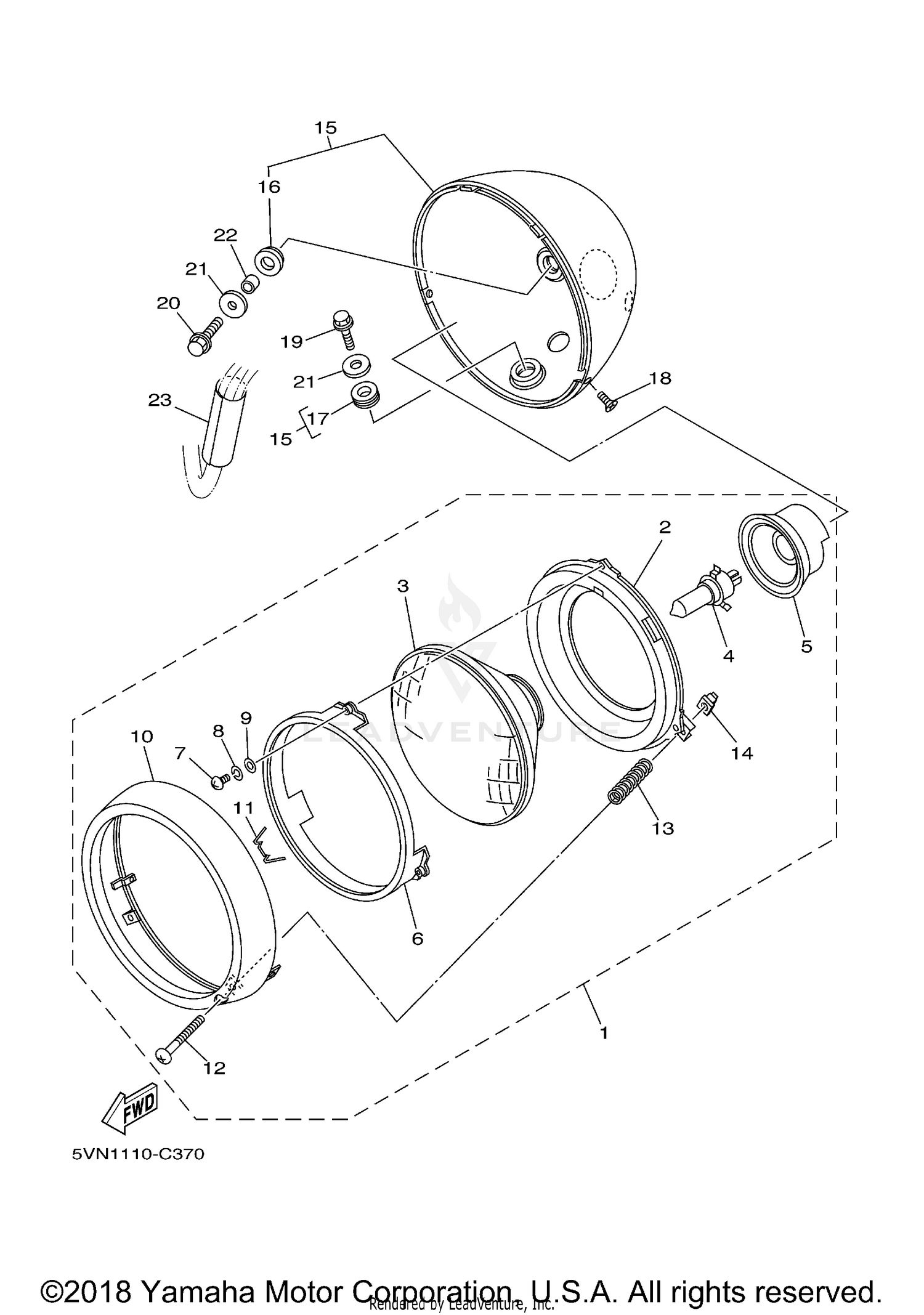

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
5VN-84310-00-00
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, MOUNTING
5VN-84394-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
4NK-84320-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB, HEADLIGHT (12V-60/55W)
2F9-84314-00-00
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
3SX-84397-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, RETAINING
2F9-84395-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98502-04008-00
Superseded by 98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, PLAIN
5VN-84344-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, HEADLIGHT
5VN-84315-00-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SET
290-84124-21-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, ADJUSTING
341-84331-60-00
Superseded by 90157-04001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPRING, SCREW
5G2-84332-60-00
Superseded by 341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY ASSY
4WM-84330-00-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, HEADLIGHT 1
4WM-84366-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, COUNTERSUNK
90152-05005-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-0610J-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY SETTING
5VN-8412H-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
