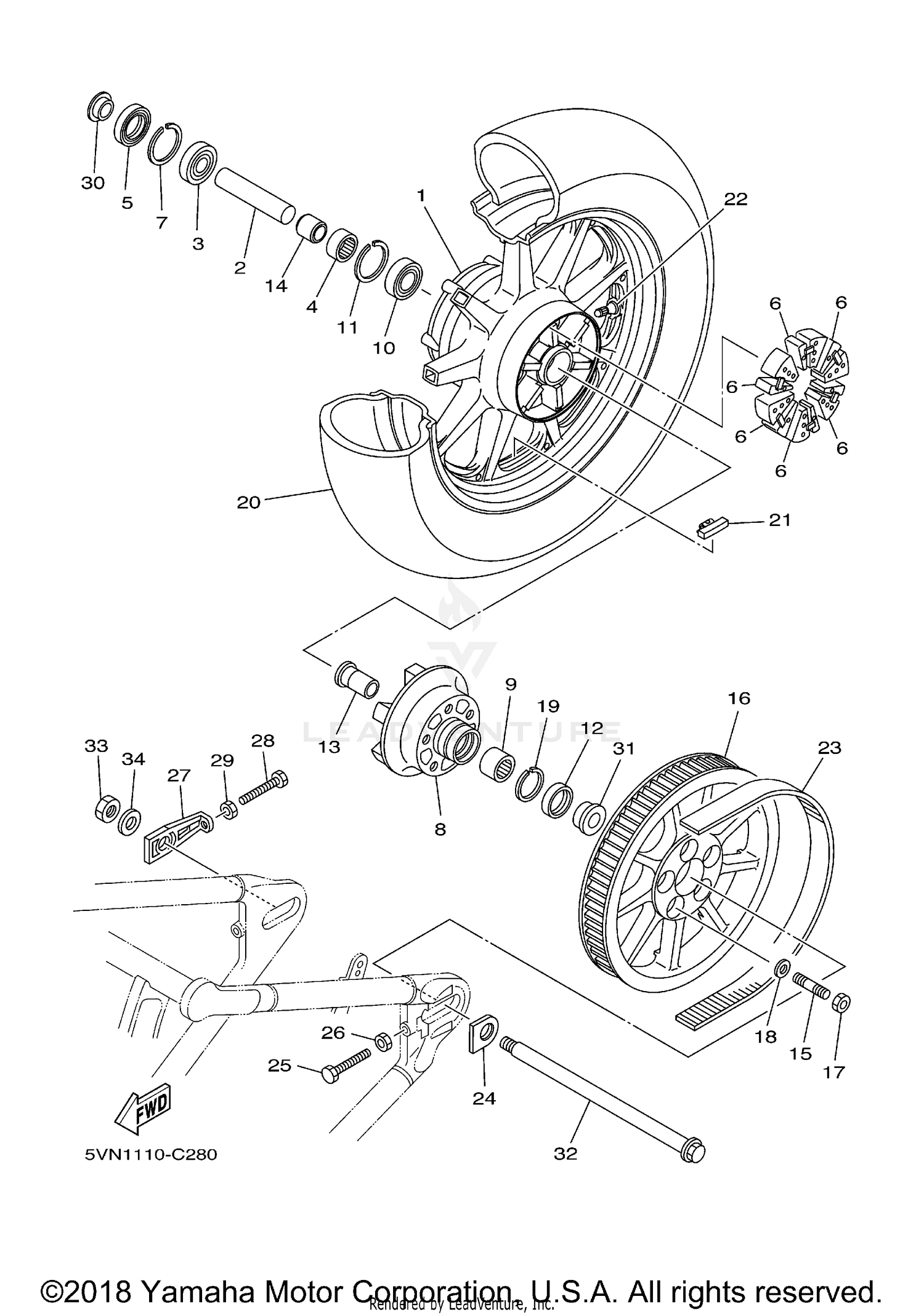

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#4
BEARING
93317-33590-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-28001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DAMPER
4WM-25364-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-52500-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLUTCH, HUB
5PX-25366-00-00
|
$237.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93317-32677-00
Superseded by 93311-32698-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30437-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-52500-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
OIL SEAL
93106-30004-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, WHEEL
4WM-25376-00-00
Superseded by 4WM-25376-10-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
5VN-25383-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
95617-12630-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVEN (70
5VN-25470-10-00
Superseded by 5VN-25470-11-00
|
$631.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95614-12100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-126A7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93450-35015-00
Superseded by 93450-35163-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIRE (150/80-16 M/C 71H)
94115-16012-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BELT
5PX-46241-10-00
Superseded by 5PX-46241-11-00
|
$360.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PULLER, CHAIN 1
4WM-25388-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90101-10001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90170-10003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PULLER, CHAIN 2
4WM-25389-00-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-10001-00
|
$11.49 | ||
|
Unavailable |
|||
|
#29
NUT
90170-10003-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-20012-00
Superseded by 90387-20033-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-202X9-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
AXLE, WHEEL
4WM-25381-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SELF-LOCKING
90185-18167-00
Superseded by 90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-185R7-00
Superseded by 90201-18620-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAST WHEEL, REAR
5VN-25338-00-7B
|
$603.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-20339-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-30437-00
|
$72.99 | ||
|
Unavailable |
|||
