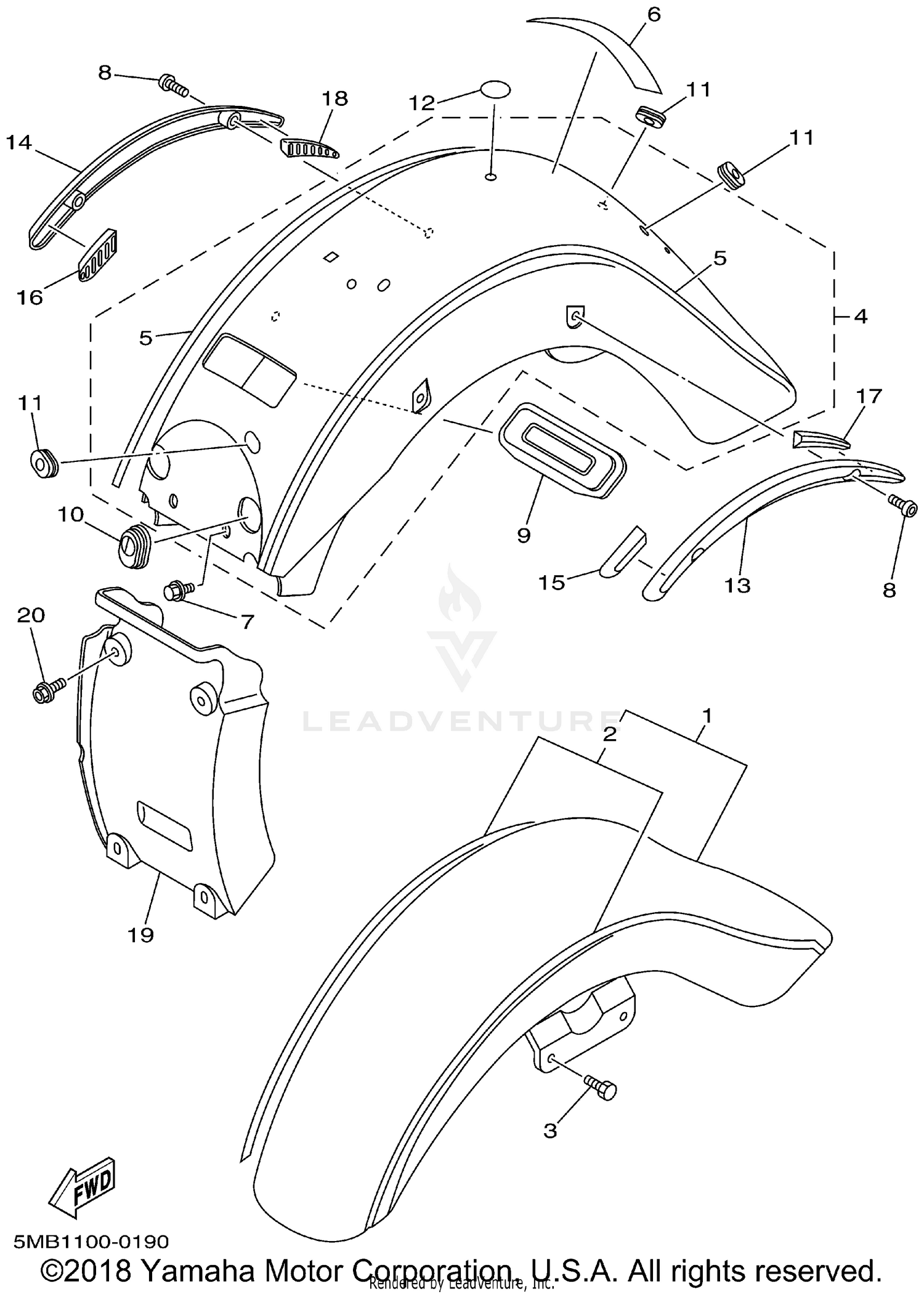

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
4WM-Y2150-B0-6X
|
$897.99 | ||
|
Unavailable |
|||
|
#1
FRONT FENDER ASSY
4WM-YK215-00-P1
|
$847.99 | ||
|
Unavailable |
|||
|
#1
FRONT FENDER ASSY
4WM-Y2150-F0-8X
|
$915.95 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4WM-21570-B0-00
|
$176.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4WM-21570-90-00
|
$176.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER COMP.
4WM-Y2161-F1-8X
Superseded by 99999-03420-00
|
$1,054.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER C0MP.
4WM-YK216-01-P1
Superseded by 99999-03422-00
|
$1,018.99 | ||
|
Unavailable |
|||
|
#4
REAR FENDER COMP.
4WM-Y2161-B1-6X
Superseded by 99999-03418-00
|
$1,161.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC SET, REAR FENDER
4WM-2165A-90-00
|
$211.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC SET, REAR FENDER
4WM-2165A-B0-00
|
$207.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM, YAMAHA
99247-00080-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92014-08025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
4WM-21649-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 1
4WM-21638-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-15061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL 2
4NK-21735-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY 1
4WM-2164F-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY 2
4WM-2164G-00-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER 1
4WM-21541-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 2
4WM-21542-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER
4WM-2174X-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
4WM-2174Y-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, MUD
4WM-21629-00-P3
|
$196.99 | ||
|
Unavailable |
|||
|
#19
GUARD, MUD
4WM-21629-00-P2
|
$190.99 | ||
|
Unavailable |
|||
|
#19
GUARD, MUD
4WM-21629-00-JW
|
$196.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
