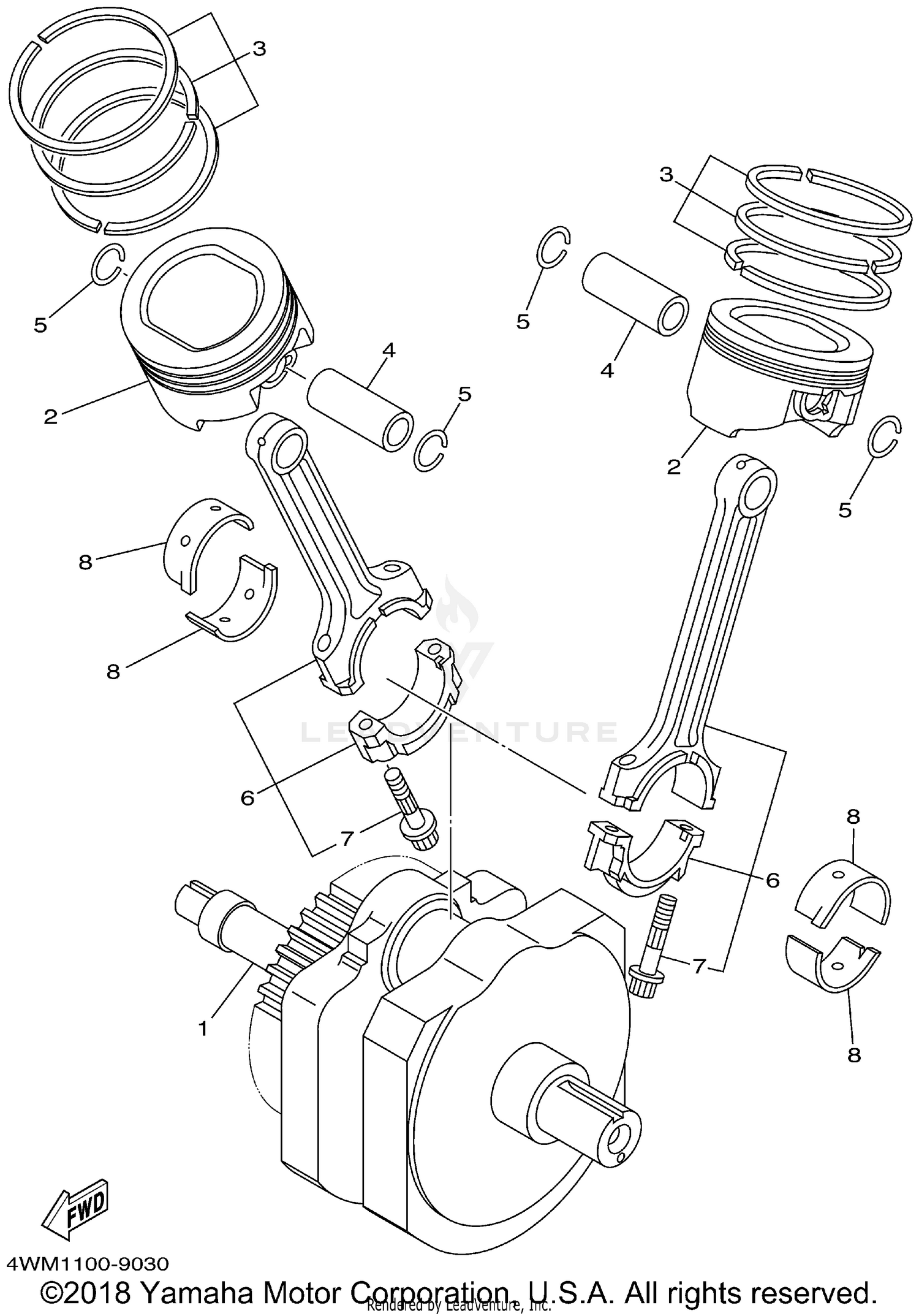

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
4WM-11400-00-00
Superseded by 4WM-11400-02-00
|
$910.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (STD)
4WM-11631-00-00
Superseded by 4WM-11631-01-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON RING SET (STD)
34L-11610-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
4WM-11633-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93450-24028-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CONNECTING ROD ASSY
4WM-11650-00-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD
4WM-11654-00-00
Superseded by 5PX-11654-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLANE BEARING, CONNECTING ROD
4WM-11656-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLANE BEARING, CONNECTING ROD
4WM-11656-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLANE BEARING, CONNECTING ROD
4WM-11656-20-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLANE BEARING, CONNECTING ROD
4WM-11656-30-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLANE BEARING, CONNECTING ROD
4WM-11656-40-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
