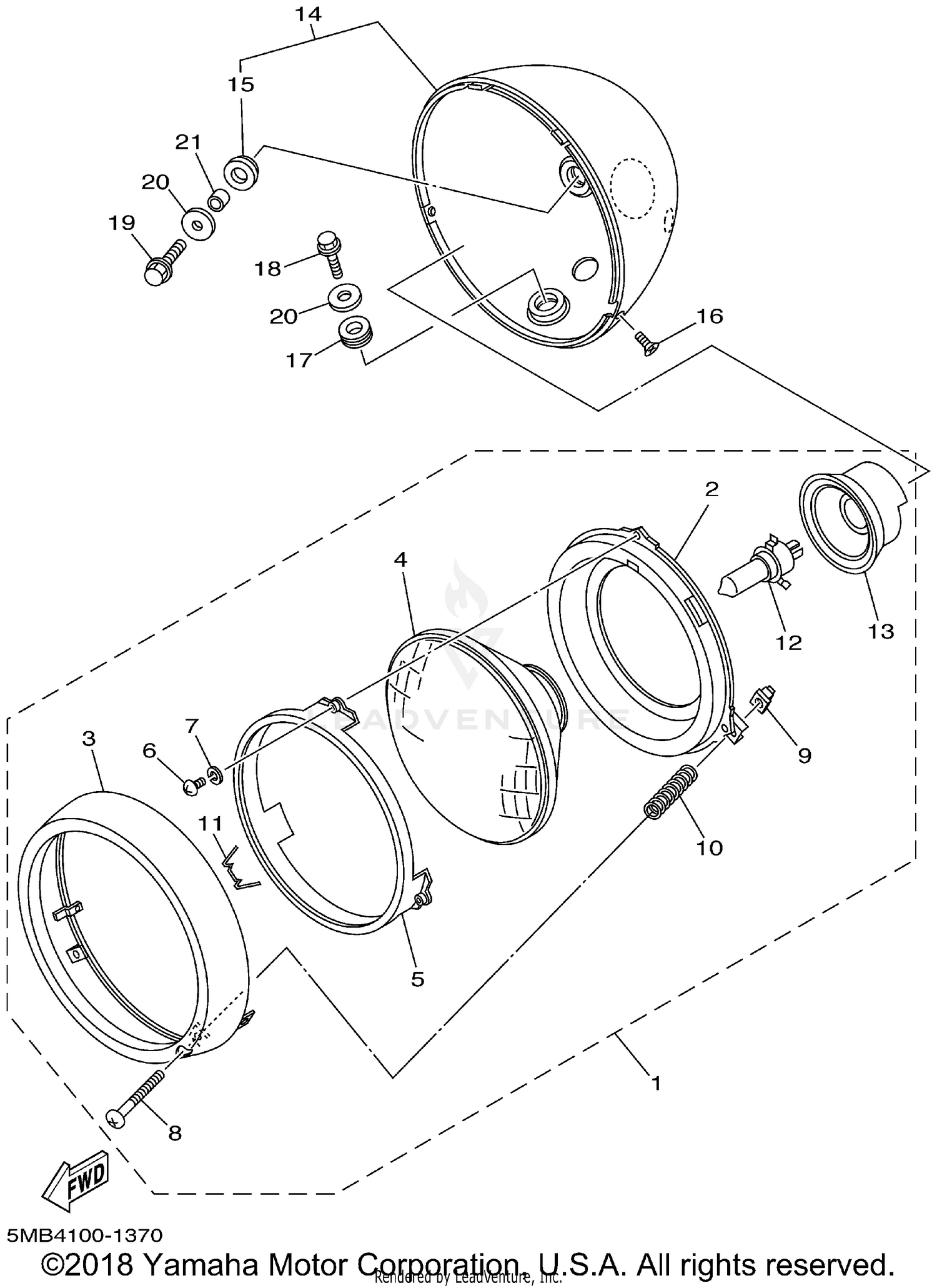

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
4WM-84310-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, MOUNTING
4WM-84394-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM, HEADLIGHT
4WM-84315-00-00
Superseded by 5VN-84315-00-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS ASSY
4NK-84320-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, RETAINING
2F9-84395-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, RIM ADJUSTING
90157-04001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, SET
290-84124-21-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SOCKET
3SX-84397-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY ASSY
4WM-84330-00-00
|
$377.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, COUNTERSUNK
90152-05005-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-16233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06696-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-0610J-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
