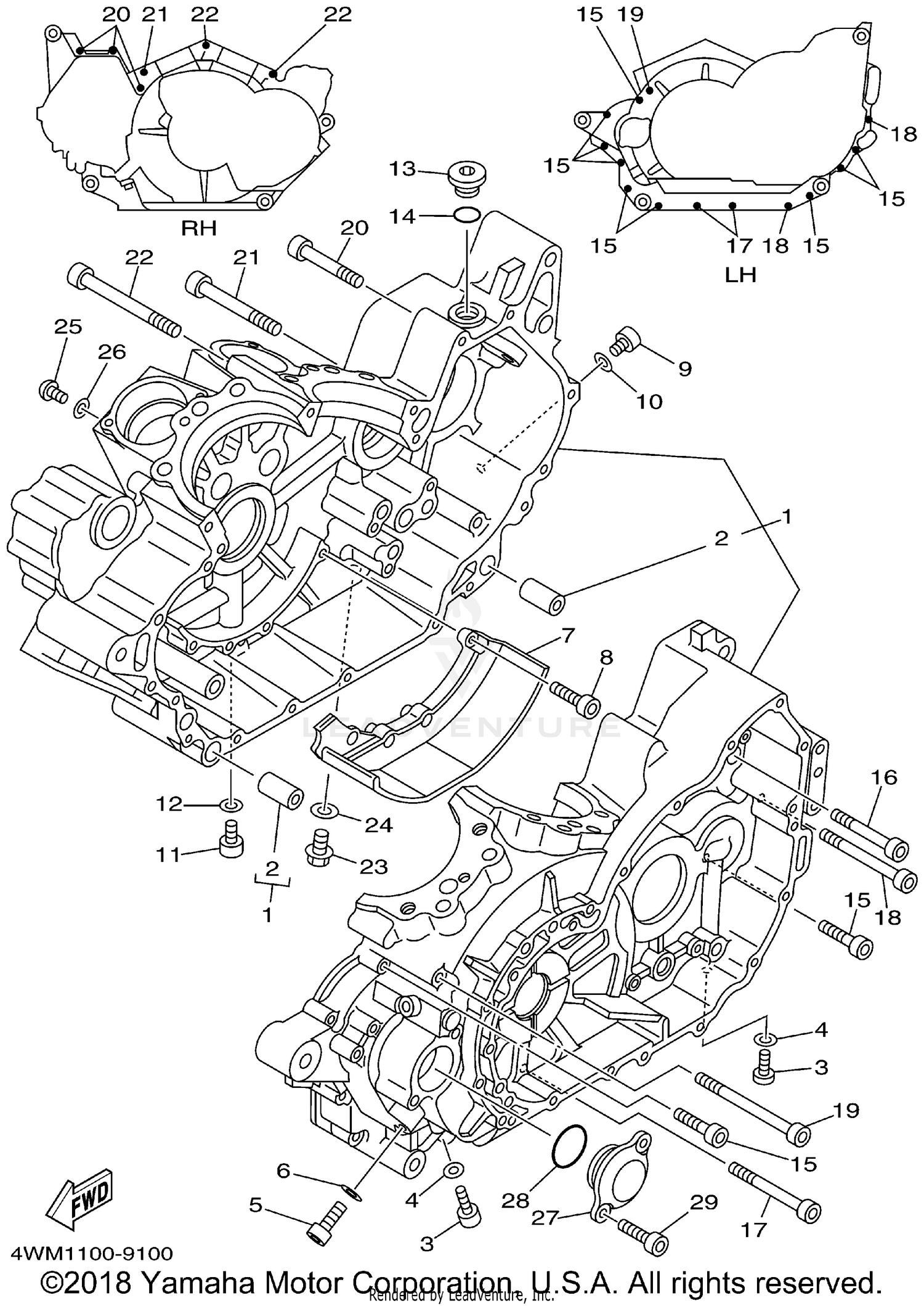

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5MB-15100-00-00
Superseded by 5MB-15100-02-00
|
$1,396.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-05010-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-05126-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-08012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, BAFFLE 1
4WM-15123-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#10
GASKET
90430-05126-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-08012-00
|
$10.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
Unavailable |
|||
|
#13
PLUG
4H7-15189-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING
93210-20578-00
|
|||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91314-06060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-06075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91317-06085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-06105-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91314-06060-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
BOLT
91314-08080-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-08100-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
Unavailable |
|||
|
#25
BOLT, BUTTON HEAD
92014-05010-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
GASKET
90430-05126-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
COVER, CAP
5MB-15417-00-00
Superseded by 5MB-15417-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#28
O-RING
93210-37532-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
