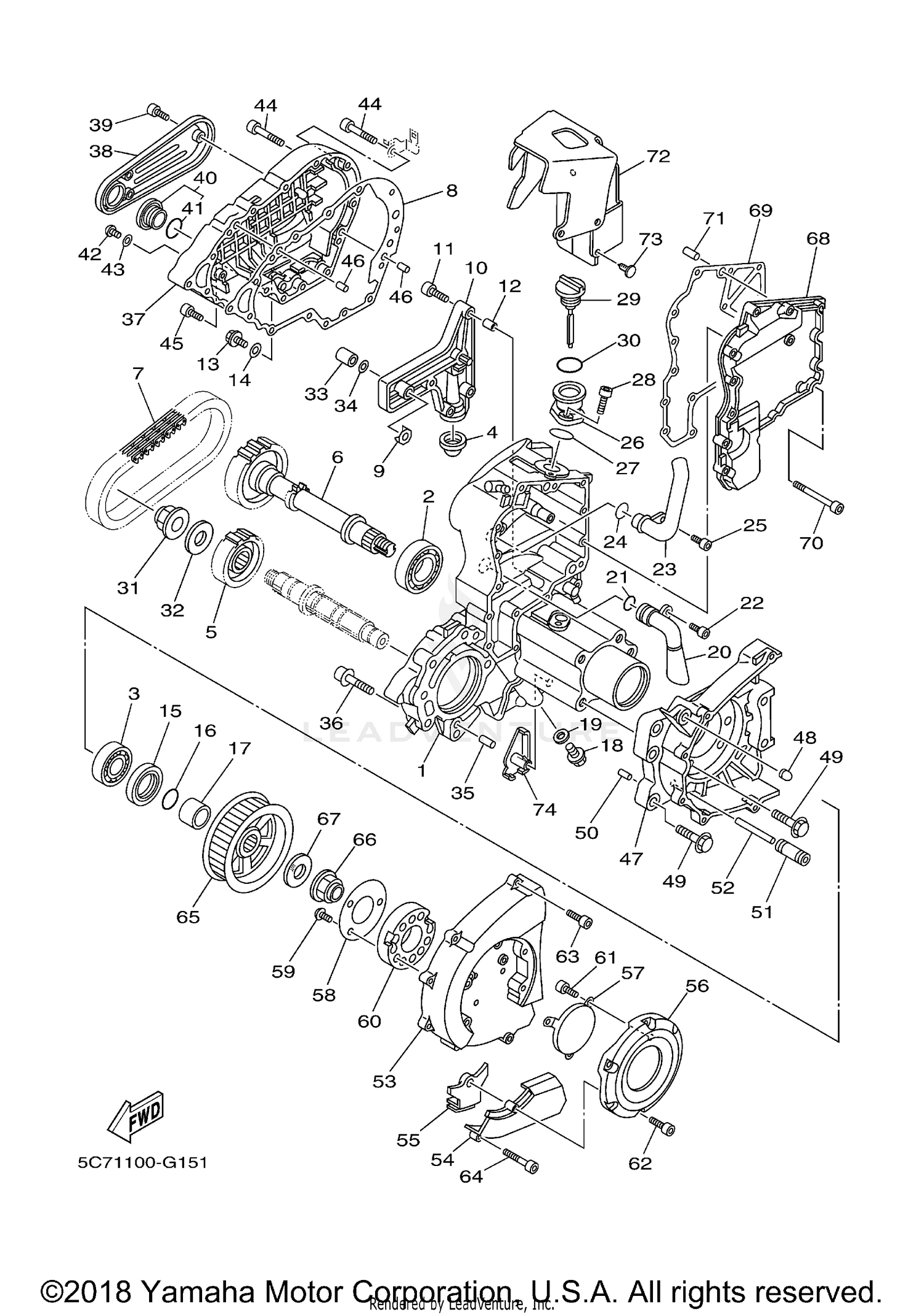

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, TRANSFER 1
1D7-17541-00-00
|
$717.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20801-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-28204-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLEANER
4WM-13286-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CHAIN DRIVE
1D7-17682-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MIDDLE DRIVEN SHAFT ASSY
1D7-1755A-00-00
|
$552.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN, PRIMARY
4WM-16139-00-00
Superseded by 4WM-16139-01-00
|
$313.99 | ||
|
Unavailable |
|||
|
#8
GASKET 1
1D7-17929-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET 2
1D7-17931-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL PUMP ASSY
1D7-13100-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-08031-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-42008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-32001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-32005-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STRAINER 2
1D7-13421-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-21631-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIPE
1D7-13582-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-21631-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Unavailable |
|||
|
#26
JOINT
1D7-13132-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-40351-00
Superseded by 93210-40745-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90110-06179-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PLUG, OIL LEVEL
5PX-15362-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-35512-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
NUT
90179-22016-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, CONICAL SPRING
90208-22004-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-10013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
90110-10013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER
1D7-15779-00-00
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER, HOUSING
1D7-17821-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
90110-05013-00
Superseded by 91314-05010-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUG, STRAIGHT SCREW
90340-20005-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING
1D7-176F4-09-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92014-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET
90430-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEXAGON SOCKET HEAD
91314-06050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Unavailable |
|||
|
#47
STAY
1D7-17613-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPACER 1
5PX-17654-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE
95814-12050-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Unavailable |
|||
|
#51
SLIDER
4WM-17653-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIN, DOWEL
93606-76002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
COVER
1D7-17076-00-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
PLATE, STAY
1D7-17662-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GROMMET
1D7-15486-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
PLATE 1
1D7-17665-00-00
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
PLATE 2
1D7-17675-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
PLATE, STAY
1D7-17672-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
DAMPER, SLIDER
1D7-17655-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, HEXAGON SOCKET HEAD
91314-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#62
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$9.49 | ||
|
Unavailable |
|||
|
#64
BOLT, HEXAGON SOCKET HEAD
91314-06050-00
|
$9.49 | ||
|
Unavailable |
|||
|
#65
PULLEY, BELT
1D7-17651-00-00
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
NUT
90179-22016-00
|
$29.99 | ||
|
Unavailable |
|||
|
#67
WASHER, CONICAL SPRING
90208-22004-00
|
$25.99 | ||
|
Unavailable |
|||
|
#68
CAP, HOUSING
1D7-17538-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
GASKET, 4
1D7-17933-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
Unavailable |
|||
|
#71
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Unavailable |
|||
|
#72
PLATE, CAP
5C7-1763A-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
RIVET
90269-07005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
PLATE
5PX-17446-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
