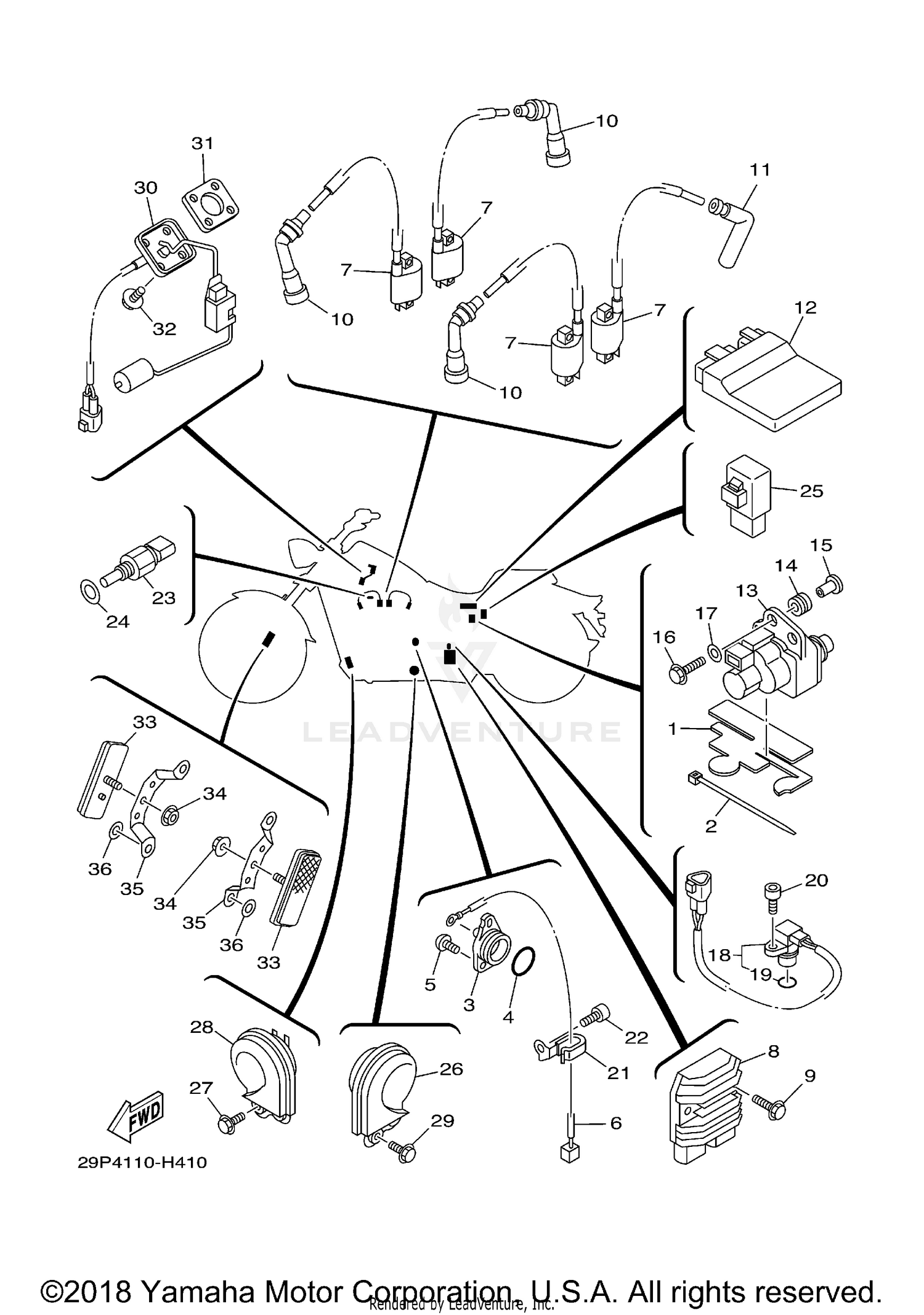

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER, LOCATING 3
5C7-2177M-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEUTRAL SWITCH ASSY
1AE-82540-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW
90149-06069-00
Superseded by 90149-06068-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WIRE, SUB LEAD
5C7-82509-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION COIL ASSY
1D7-82310-01-00
Superseded by 1D7-H2310-05-00
|
$23.99 | ||
|
Unavailable |
|||
|
#8
RECTIFIER & REGULATOR ASSY
1D7-81960-00-00
Superseded by 1D7-81960-01-00
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
1D7-82370-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
5VK-82370-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ENGINE CONTROL UNIT ASSY
30B-8591A-00-00
|
$930.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SERVO MOTOR ASSY
2D1-85820-00-00
Superseded by 2D1-85820-01-00
|
$299.99 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-14005-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-063E6-00
Superseded by 90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95022-06025-00
|
$1.90 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-06M31-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, SPEED
1D7-83755-00-00
Superseded by 1D7-83755-01-00
|
$145.99 | ||
|
Unavailable |
|||
|
#19
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90465-08127-00
Superseded by 90465-06376-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT
90110-06227-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
THERMO UNIT
5PX-83591-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-12172-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
FLASHER RELAY ASSY
1D7-83350-00-00
Superseded by 1D7-83350-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HORN
1D7-83371-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WITH WASHER
90119-06001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HORN
1D7-83371-10-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WITH WASHER
90119-06229-00
Superseded by 90119-06001-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
SENDER UNIT ASSY, FUEL METER
5C7-85752-01-00
Superseded by 5C7-85752-11-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET, SENDER UNIT
5G3-85753-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, WITH WASHER
90119-05071-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, S/L FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, REFLECTOR 1
1D7-85112-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-112U6-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
