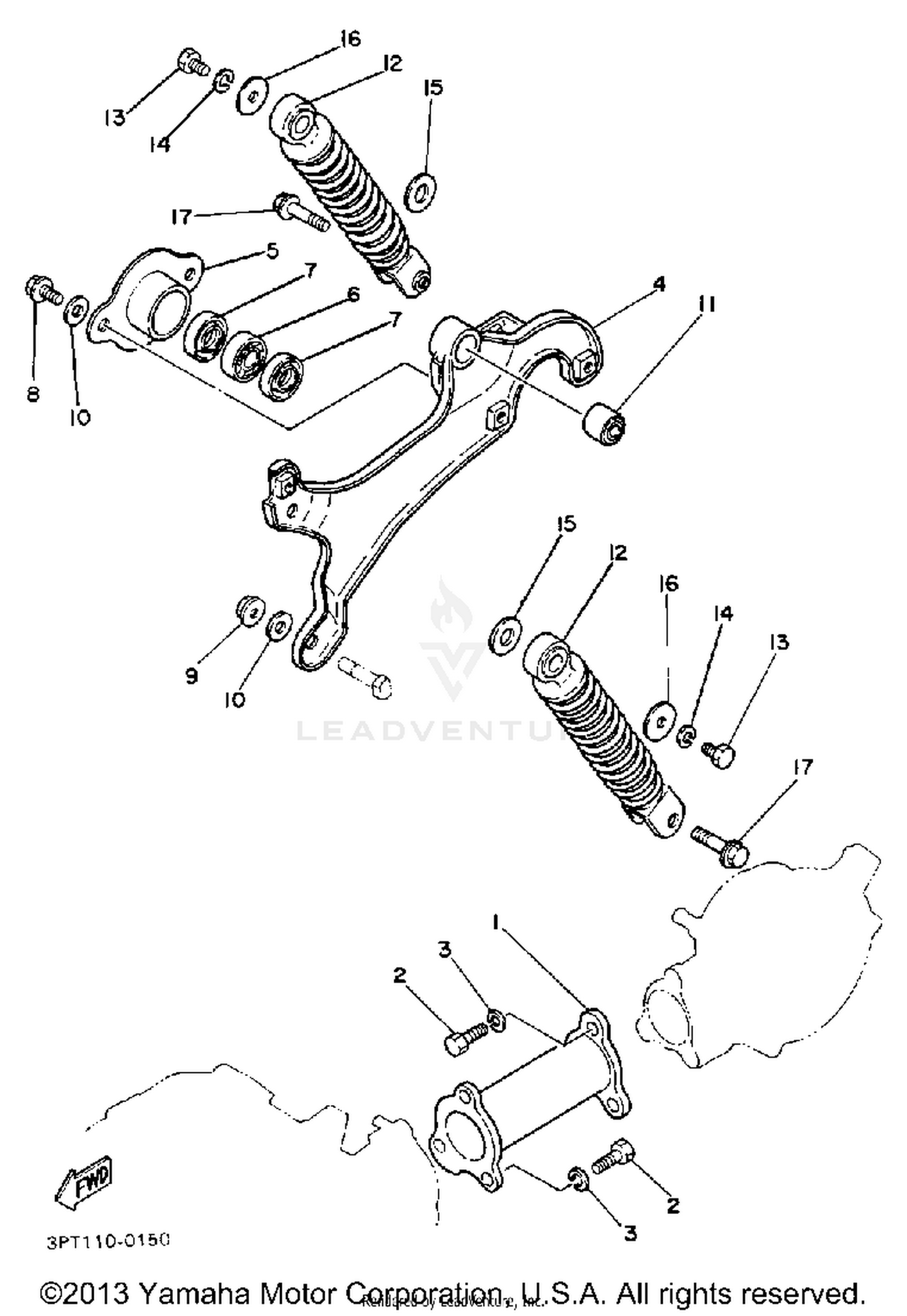

Swing Arm - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
3L7-22110-00-98
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90101-08461-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR ARM COMP.
4X4-22110-01-00
Superseded by 4X4-22110-10-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
END 1
4J2-22174-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-20117-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93106-24018-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-08155-00
Superseded by 90105-08066-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSH, REAR SHOCK ABSORBER
164-22216-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHK/ABS ASY,REAR
4X4-22210-00-P0
Superseded by 3PT-22210-00-6W
|
$96.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-126A7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-067A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08121-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
