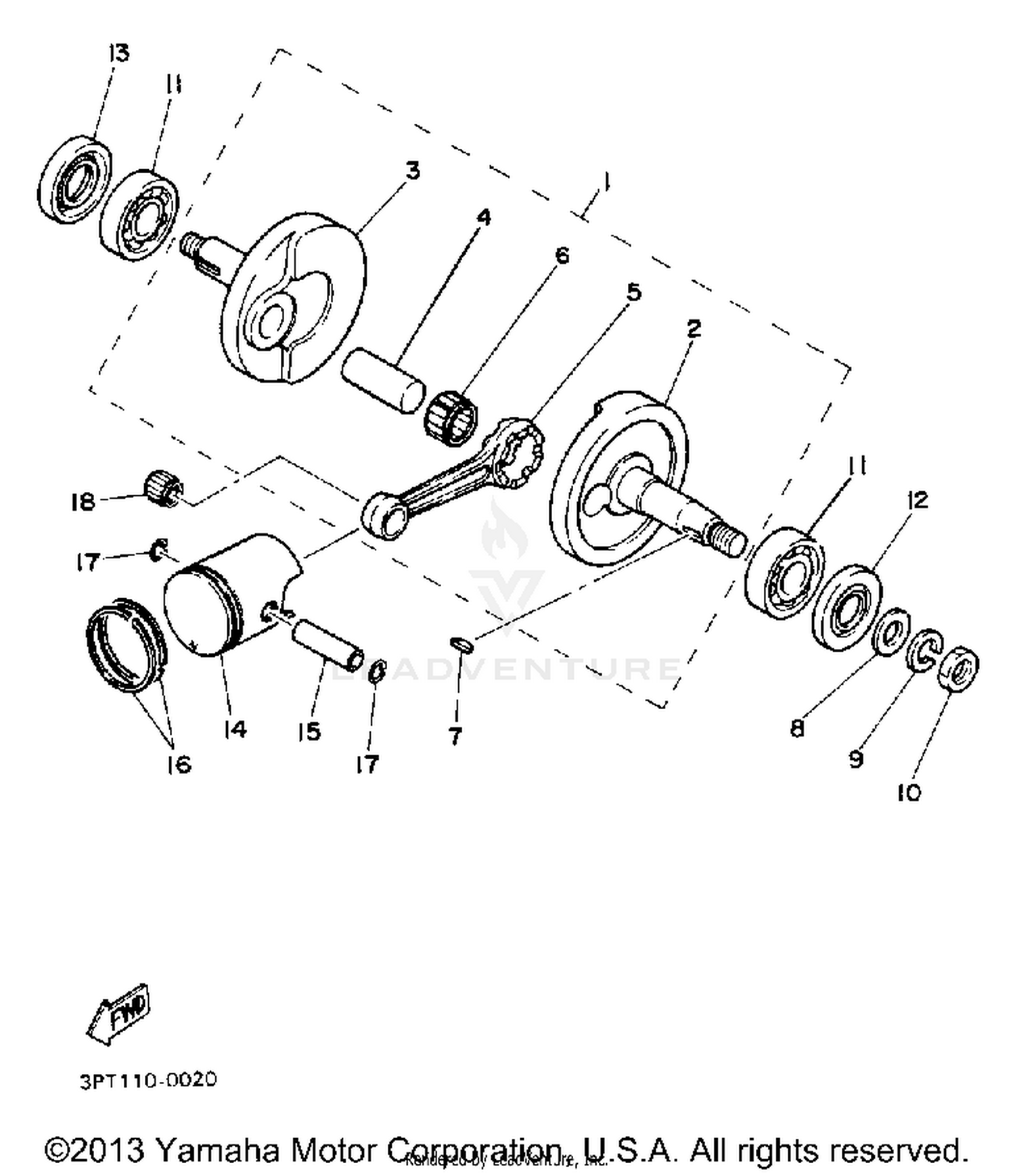

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
3L5-11400-01-00
Superseded by 3L5-11400-02-00
|
$383.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
3L5-11412-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
3L5-11422-01-00
Superseded by 3L5-11422-02-00
|
$86.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
1YU-11681-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
2E9-11651-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93310-416N7-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
KEY, WOODRUFF
90280-03017-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
92990-12600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING
93306-20326-00
Superseded by 93306-20335-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93102-17067-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93102-23174-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PISTON (STD)
18U-11631-00-A0
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.25MM O/S)
18U-11635-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
18U-11636-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PISTON
2E9-11633-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#16
PISTON RING SET (STD)
260-11601-03-00
|
$70.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
PISTON RING SET (0.25MM O/S)
260-11601-13-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
260-11601-23-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93450-11021-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING
93310-210M0-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
