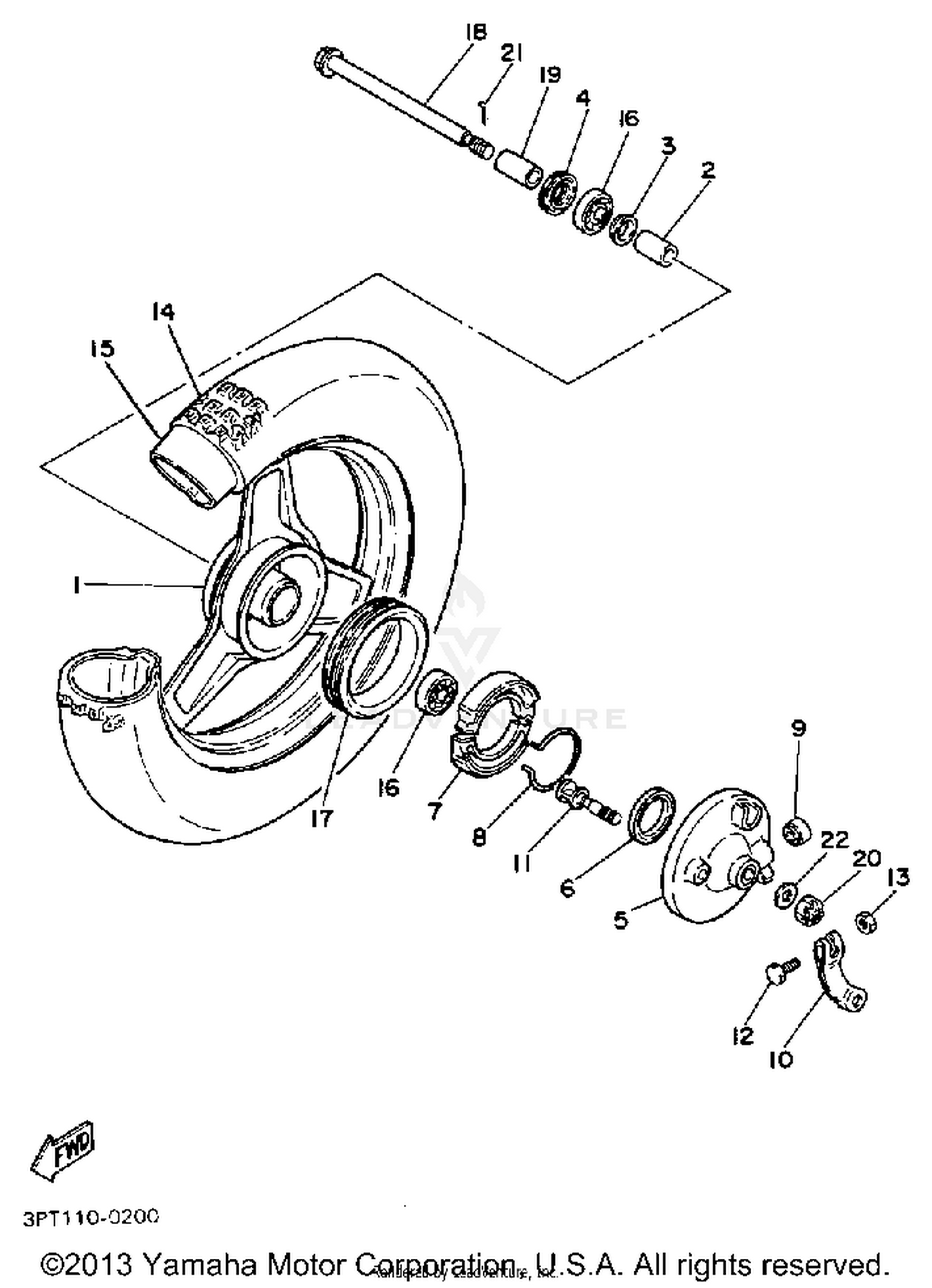

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
5M0-25180-00-36
|
$134.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-10173-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 2
2E9-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-17015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BRAKE SHOE
2T4-25121-00-98
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93109-34057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKESHOE SET-2PCS
2E9-W2535-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
SPRING, RETURN
2E9-25133-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, TAPER
90336-15033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1
2T4-25155-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
25K-25151-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
95303-05600-00
Superseded by 95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIRE (2.50-10)
94125-10650-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE (2.50/2.75-10)
94227-10219-00
Superseded by 94225-10270-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-20005-00
Superseded by 93306-20009-00
|
$48.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RING 1
2T4-25185-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE,WHEEL
4N0-25181-00-00
Superseded by 99999-03089-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-10620-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CASTLE
90171-10004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
