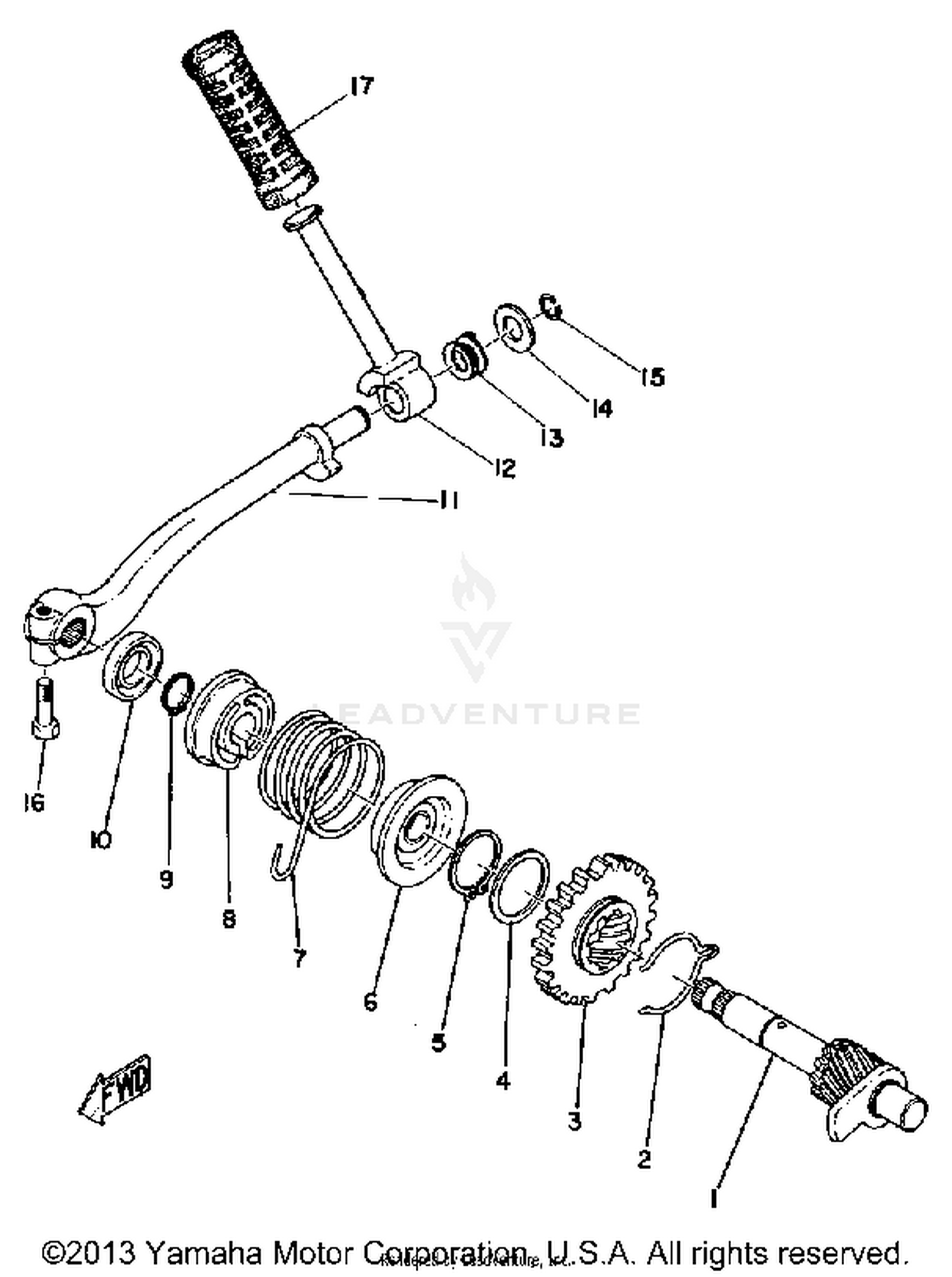

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
180-15660-01-00
|
$191.99 | ||
|
Unavailable |
|||
|
#
KICK CRANK ASSEMBLY
307-15610-01-93
|
$40.99 | ||
|
Unavailable |
|||
|
#2
CLIP
90468-26048-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GEAR, KICK
180-15641-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-25017-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GUIDE, SPRING
132-15664-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TORSION
90508-26136-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SPRING
132-15676-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99009-15400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
OIL SEAL
93109-15001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PULLY, ALTERNATOR 2 GROOVE
UNA-VAILA-BL-EI
|
|||
|
Unavailable |
|||
|
#12
LEVER, KICK
214-15612-09-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
SPRING, KICK CRANK
214-15625-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
WASHER,SPEC'L SHAPE
90209-10108-00
Superseded by 90209-10210-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, OUTER
93440-10028-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, KICK LEVER
156-15618-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
