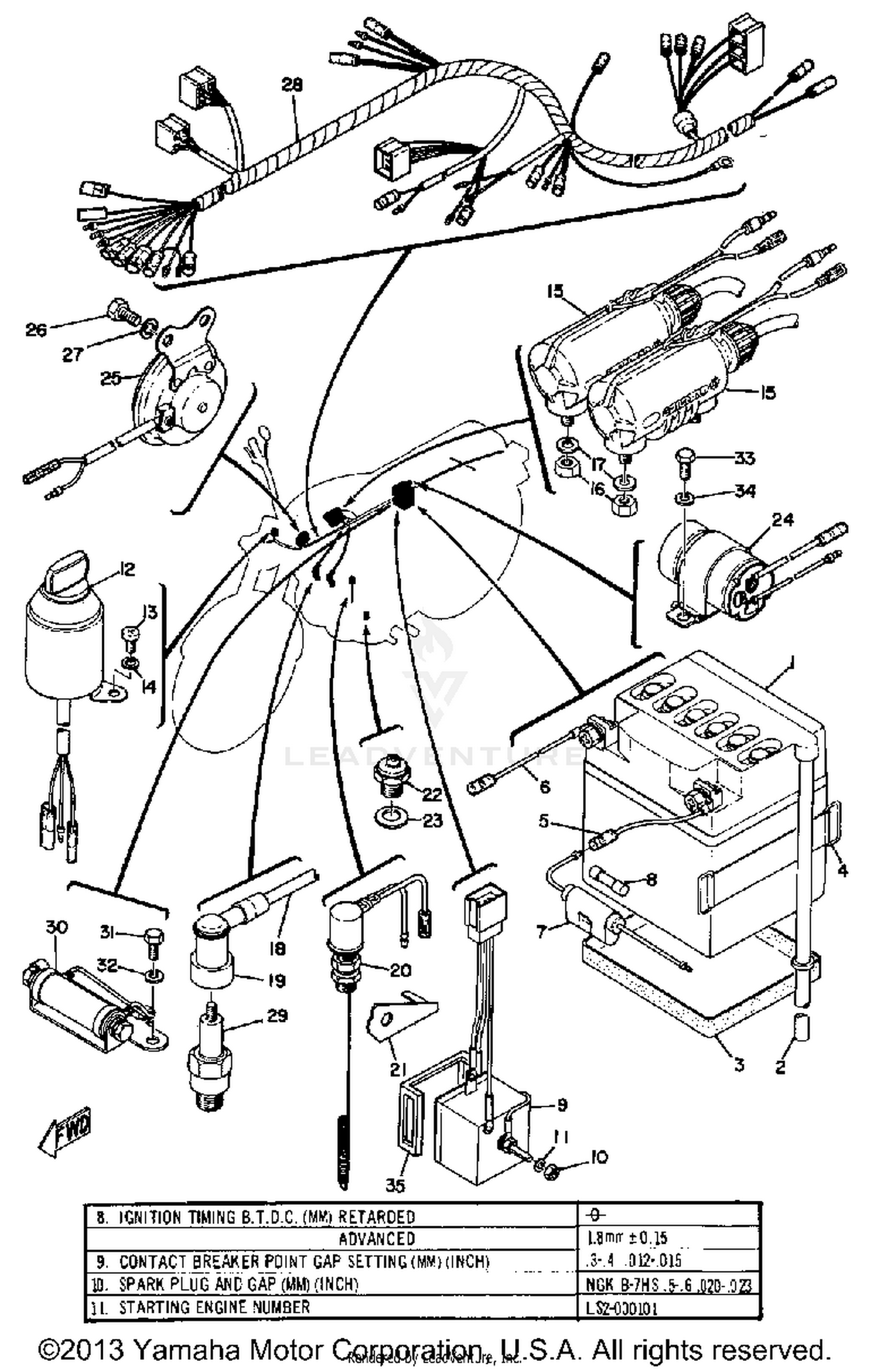

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
12N5.5A3B YUASA BAT
BTY-12N55-A3-B0
Superseded by 12N-55A3B-Y0-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, BREATHER
170-82112-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#3
SEAT, BATTERY
118-82122-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#4
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, PLUS LEAD
307-82115-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#6
WIRE, MINUS LEAD
307-82116-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#7
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE
1A0-82161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RECTIFIER ASSEMBLY
357-81970-60-00
|
$133.99 | ||
|
Unavailable |
|||
|
#10
NUT
95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
MAIN SWITCH ASSEMBLY
307-82508-30-00
|
$45.40 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#15
IGNITION COIL ASSEMBLY
254-82310-60-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CORD, HIGHT TENSION 1
137-82341-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG CAP ASSY
56J-82370-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOP SWITCH ASSEMBLY
307-82530-09-00
|
$43.99 | ||
|
Unavailable |
|||
|
#21
STAY, STOP SWITCH
307-82539-00-33
|
$1.18 | ||
|
Unavailable |
|||
|
#22
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
37R-82543-00-00
Superseded by 90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLASHER RELAY ASSEMBLY
278-83350-71-00
|
$80.99 | ||
|
Unavailable |
|||
|
#25
HORN
326-83371-21-00
|
$60.99 | ||
|
Unavailable |
|||
|
#26
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#28
WIRE HARNESS ASSEMBLY
326-82590-32-00
|
$65.99 | ||
|
Unavailable |
|||
|
#29
NGK SPARK PLUG B7HS
NGK-B7HS0-00-00
Superseded by B7H-S0000-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
RESISTOR
327-81911-10-00
|
$37.30 | ||
|
Unavailable |
|||
|
#31
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#35
COVER, RECTIFIER
307-81972-00-00
|
$1.03 | ||
|
Unavailable |
|||
