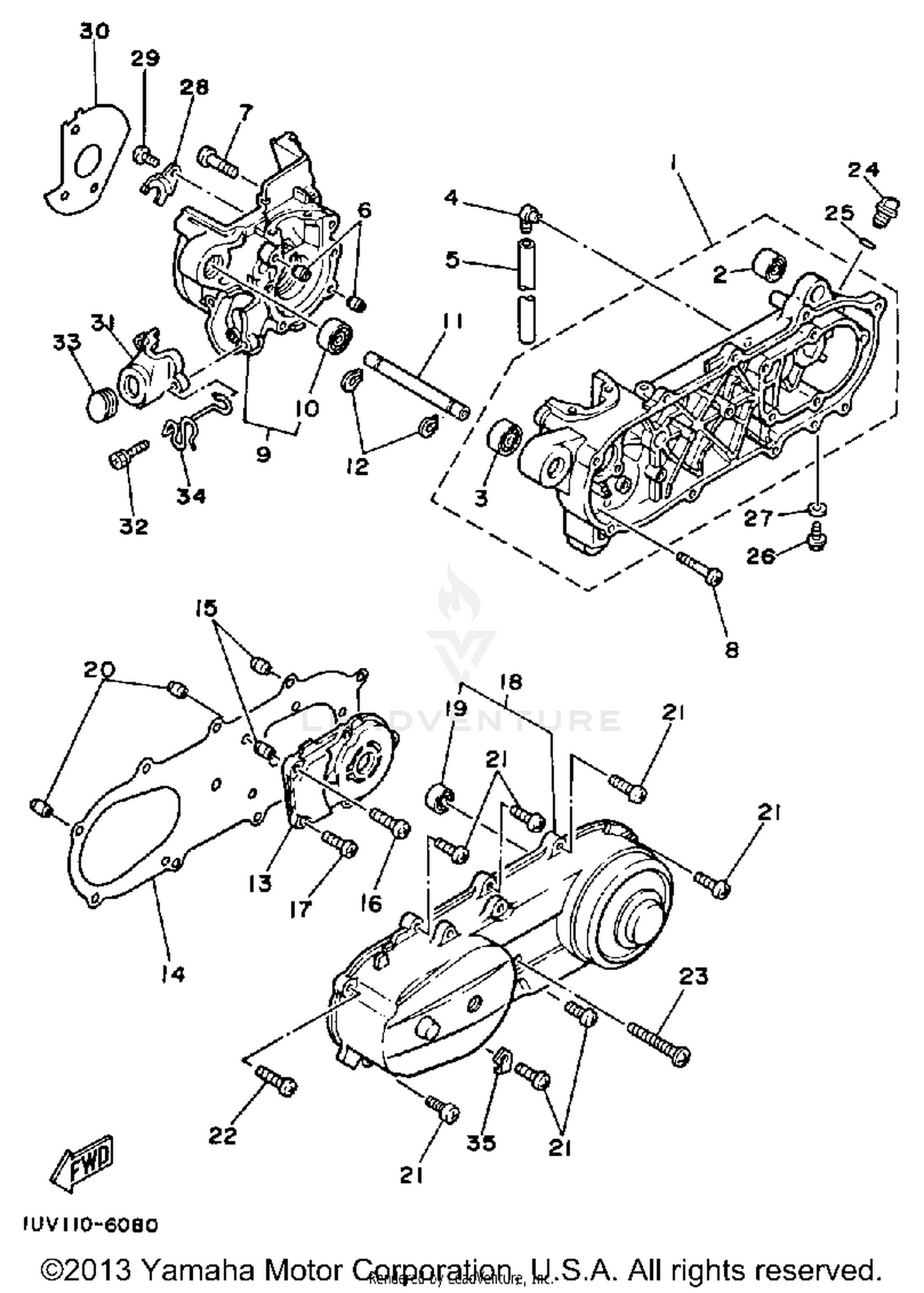

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY 1
1HV-15110-00-00
|
$178.99 | ||
|
Unavailable |
|||
|
#2
BUSH, REAR SHOCK ABSORBER
164-22216-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00201-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BREATHER
583-15371-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE (3AK)
90446-07241-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$6.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CRANKCASE ASSEMBLY 2
1HV-15120-02-00
|
$121.99 | ||
|
Unavailable |
|||
|
#10
BEARING
93306-00201-00
|
$41.99 | ||
|
Unavailable |
|||
|
#11
SPACER, ENGINE MOUNT
2T4-15317-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93440-15012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CRANKCASE R
1HV-15421-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#14
GASKET, CRANKCASE COVER 1
3WX-15451-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$6.30 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
C/C COVER ASSEMBLY.1ASSEMBLY 1
1HV-W1541-01-00
|
$200.99 | ||
|
Unavailable |
|||
|
#19
BEARING
93300-63813-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$6.30 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98506-06060-00
Superseded by 98507-06060-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PLUG, OIL
4J2-15363-00-00
Superseded by 4J2-15363-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-08087-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HOLDER
1HV-15128-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET,CRCS CVR 3
14T-15462-00-00
Superseded by 3WX-15462-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#31
COVER, OIL PUMP (5G3-15416-00)
24G-15416-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#32
SCREW, WITH WASHER
90159-06075-00
Superseded by 90159-06076-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
90480-01300-00
|
$6.99 | ||
|
Unavailable |
|||
|
#34
CLAMP
90465-20293-00
|
$2.54 | ||
|
Unavailable |
|||
|
#35
CLAMP
90465-06278-00
|
$1.15 | ||
|
Unavailable |
|||
