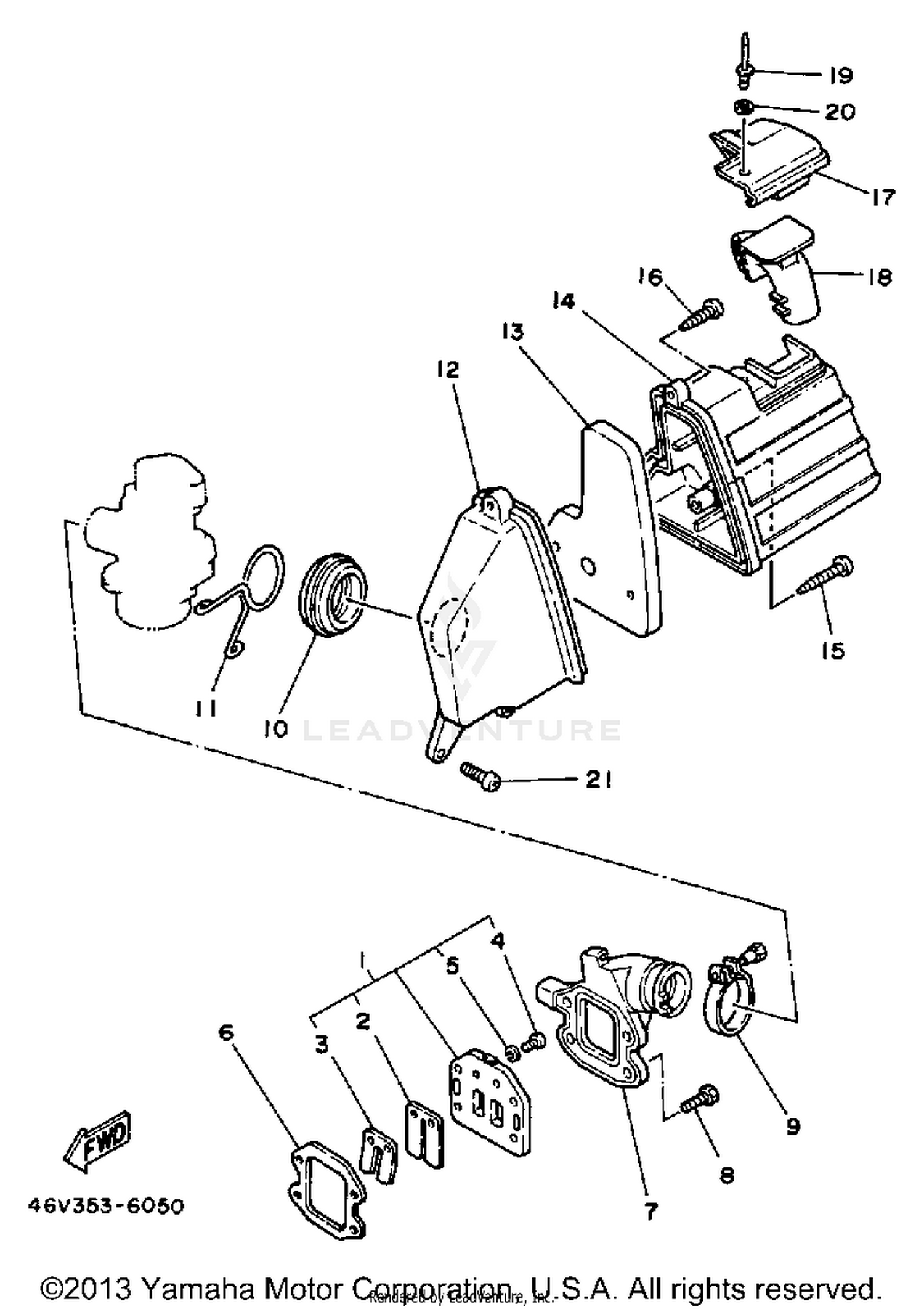

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
27V-13610-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
24G-13613-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#3
STOPPER, REED VALVE
27V-13616-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, VALVE SEAT
3HK-13621-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MANIFOLD, INTAKE
27V-13555-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90460-32242-00
Superseded by 90450-32081-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, AIR CLEANER 1
27V-14453-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-24140-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, AIR CLEANER 1
27V-14411-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#13
ELEMENT, AIR CLNR
27V-14451-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, CLNR CASE 1
27V-14412-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#15
SCREW, TAPPING
97780-50130-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
97780-50125-00
|
$3.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
DUCT
27V-14437-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, SUCTION 2
27V-14433-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#19
RIVET, BLIND
90267-40073-00
Superseded by 90267-40029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-04200-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
