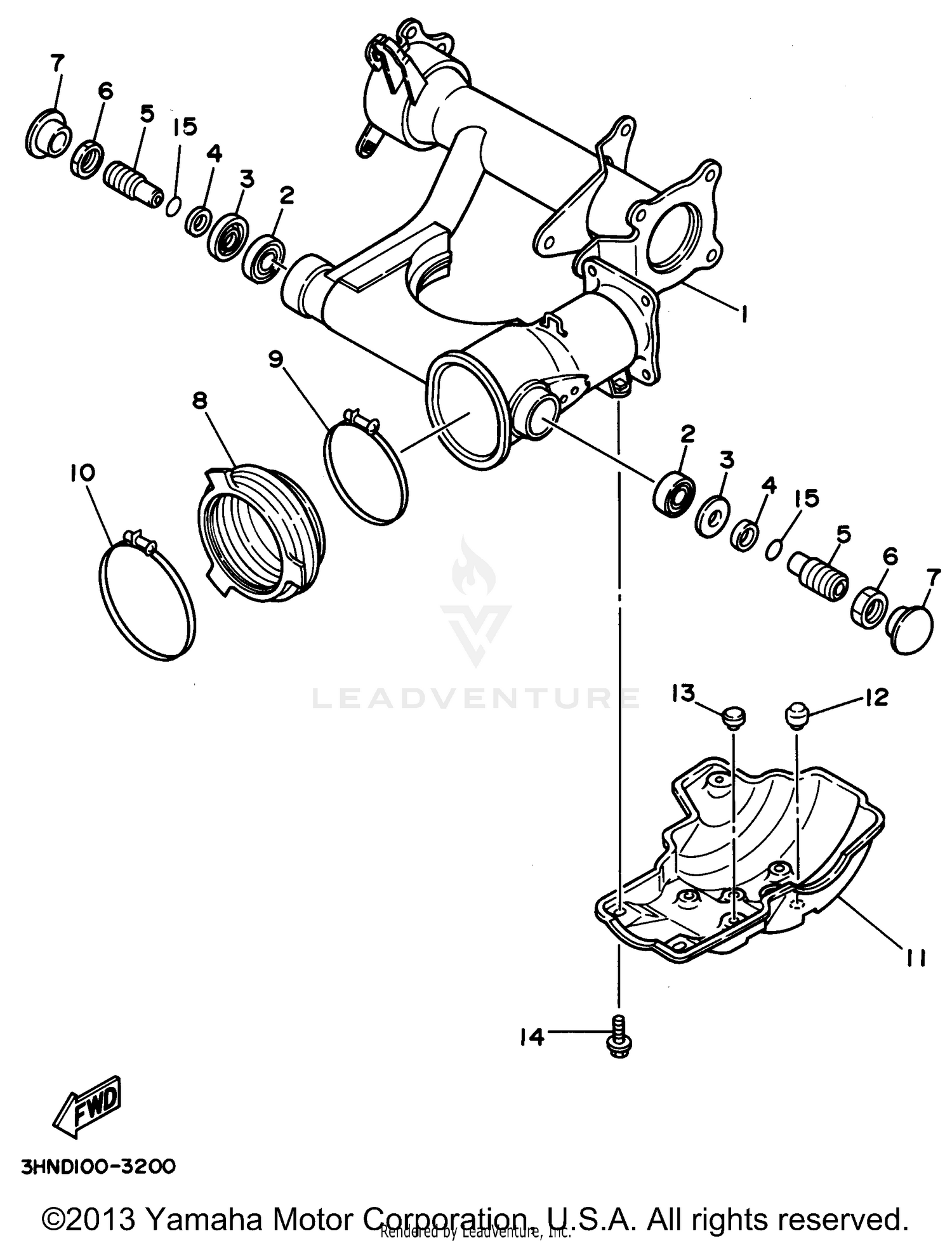

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
3HN-22110-00-00
|
$791.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93332-00010-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-25017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-1701D-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PIVOT
29U-22141-00-00
Superseded by 4WV-22141-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
1J7-22143-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-34069-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, RUBBER
2HR-22189-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-99289-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-99013-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
2HR-2219X-00-00
|
$98.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER
3Y1-24768-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER
30X-24768-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-17718-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
