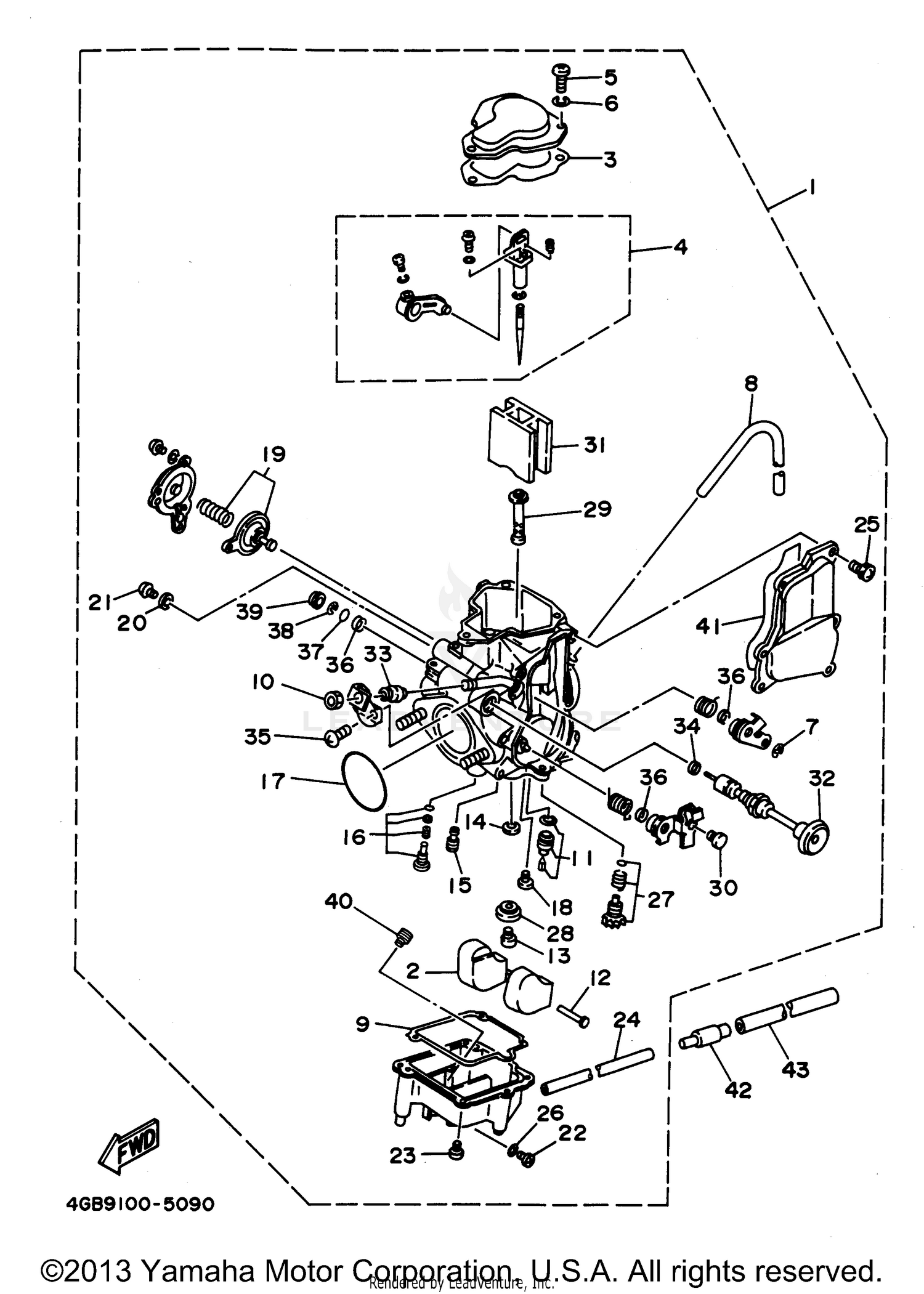

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3HN-14101-00-00
|
$715.99 | ||
|
Unavailable |
|||
|
#2
FLOAT
2VA-14185-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
1UY-14198-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE SET
1YW-1490J-00-00
Superseded by 1YW-1490J-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE
90445-083A4-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING
1UY-14147-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,CABLE ADJ
802-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE SET
1UY-14107-25-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET, MAIN (#120)
620-14231-24-A0
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, MAIN JET
137-14153-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
JET, PILOT (# 45)
4G0-14142-45-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PILOT SCREW SET
21V-14105-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
1YW-14147-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
1FN-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM SET 5
3LD-1490H-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
59V-14962-00-00
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PLUG, DRAIN
2L1-14191-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIPE
90445-08619-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#25
SCREW,PANHEAD
97601-04312-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#26
O-RING
214-14147-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
THROTTLE SCREW SET
2VA-14103-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, BAFFLE
5V7-14153-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NOZZLE, MAIN
1YW-14141-28-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE, CABLE
1UY-14155-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
VALVE, THROTTLE 1
1YW-14112-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER, STARTER
1UY-14993-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, PLUNGER CAP
22F-14173-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAL
2A2-14997-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
SEAL
2A2-14997-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
GASKET
22F-14126-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
812-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CAP
36X-14169-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
JET, MAIN (#75.0)
1HX-14231-15-00
Superseded by 1HX-14231-15-A0
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING
2HR-14147-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE
24W-14193-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
