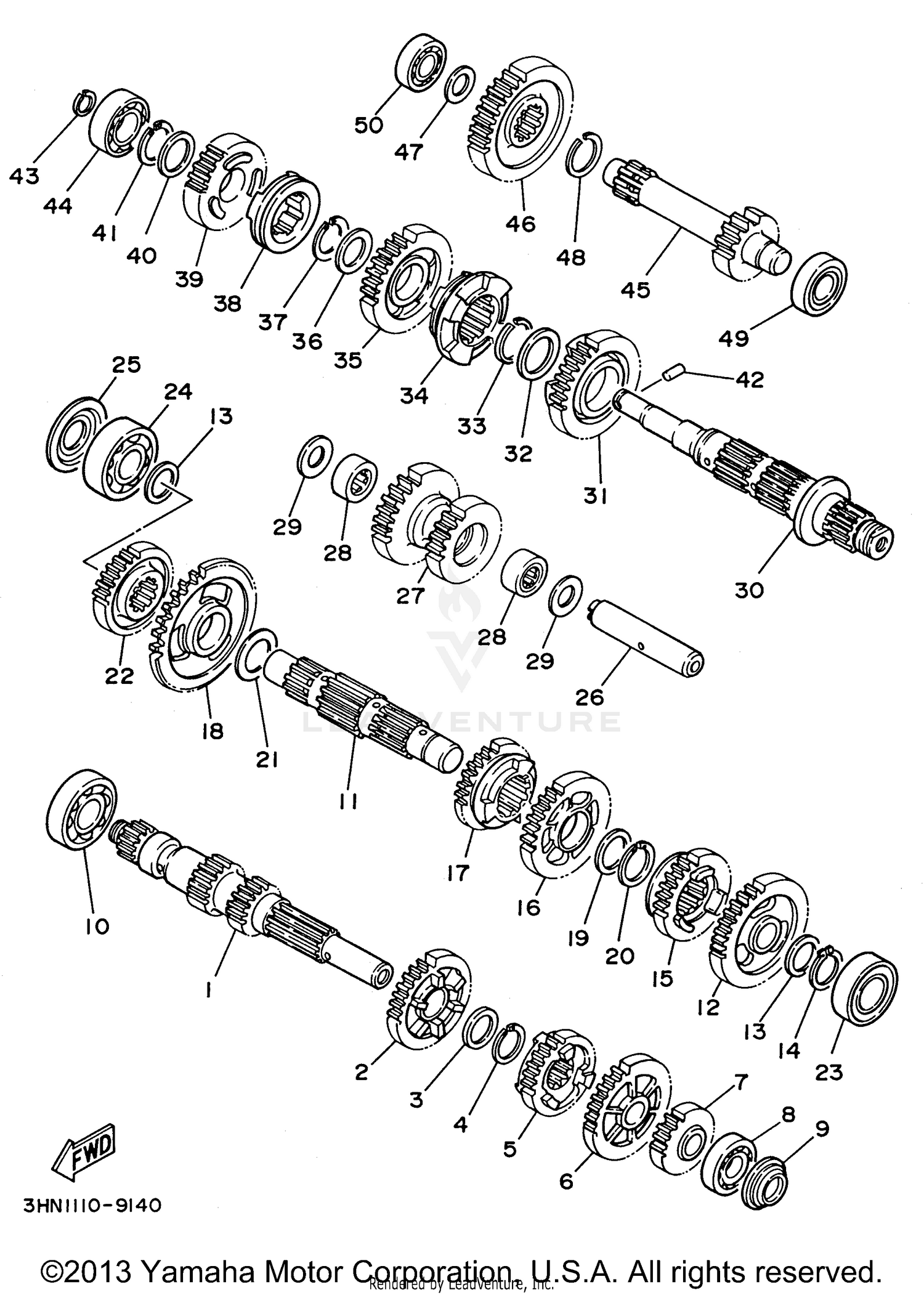

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
4GB-17411-00-00
Superseded by 4GB-17401-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 5TH PINION (29T)
1YW-17151-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-225M9-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (22T)
1YW-17131-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 4TH PINION (25T)
1YW-17141-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION (18T)
1YW-17121-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#8
BEARING
93306-20310-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93104-17094-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20427-00
Superseded by 93306-20447-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSY
1YW-17421-01-00
Superseded by 1YW-17402-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 2ND WHEEL (34T)
1YW-17221-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 4TH WHEEL (26T)
1YW-17241-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL (30T)
1YW-17231-01-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 5TH WHEEL (24T)
4KB-17251-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 1ST WHEEL (38T)
4KB-17211-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-253G3-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-266F6-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, HIGH PINION (23T)
1YW-17123-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#23
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93104-20068-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, IDLE
1UY-17432-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, HIGH WHEEL (20T)
1YW-17223-01-00
|
$250.99 | ||
|
Unavailable |
|||
|
#28
BEARING
93311-51554-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-150H2-00
Superseded by 90201-150U6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT
1YW-17523-00-00
|
$351.99 | ||
|
Unavailable |
|||
|
#31
GEAR, REVERSE WHEEL 2
1YW-17253-00-00
|
$107.99 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-352L0-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
93440-34025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLUTCH, DOG
2VA-17285-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#35
GEAR, MIDDLE DRIVE
2VA-17582-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
90201-307H1-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP
93440-30077-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HOLDER
1YW-17286-01-00
|
$111.99 | ||
|
Unavailable |
|||
|
#39
GEAR, MIDDLE DRIVEN
1YW-17583-01-00
|
$117.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-257H0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#42
PIN, DOWEL
93603-14179-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CIRCLIP
93440-14155-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING
93306-00431-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
AXLE, COUNTER
1YW-17431-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#46
GEAR, REVERSE WHEEL 1
1YW-17243-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#47
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#49
BEARING
93306-20310-00
|
$41.99 | ||
|
Unavailable |
|||
|
#50
BEARING
93306-00302-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
