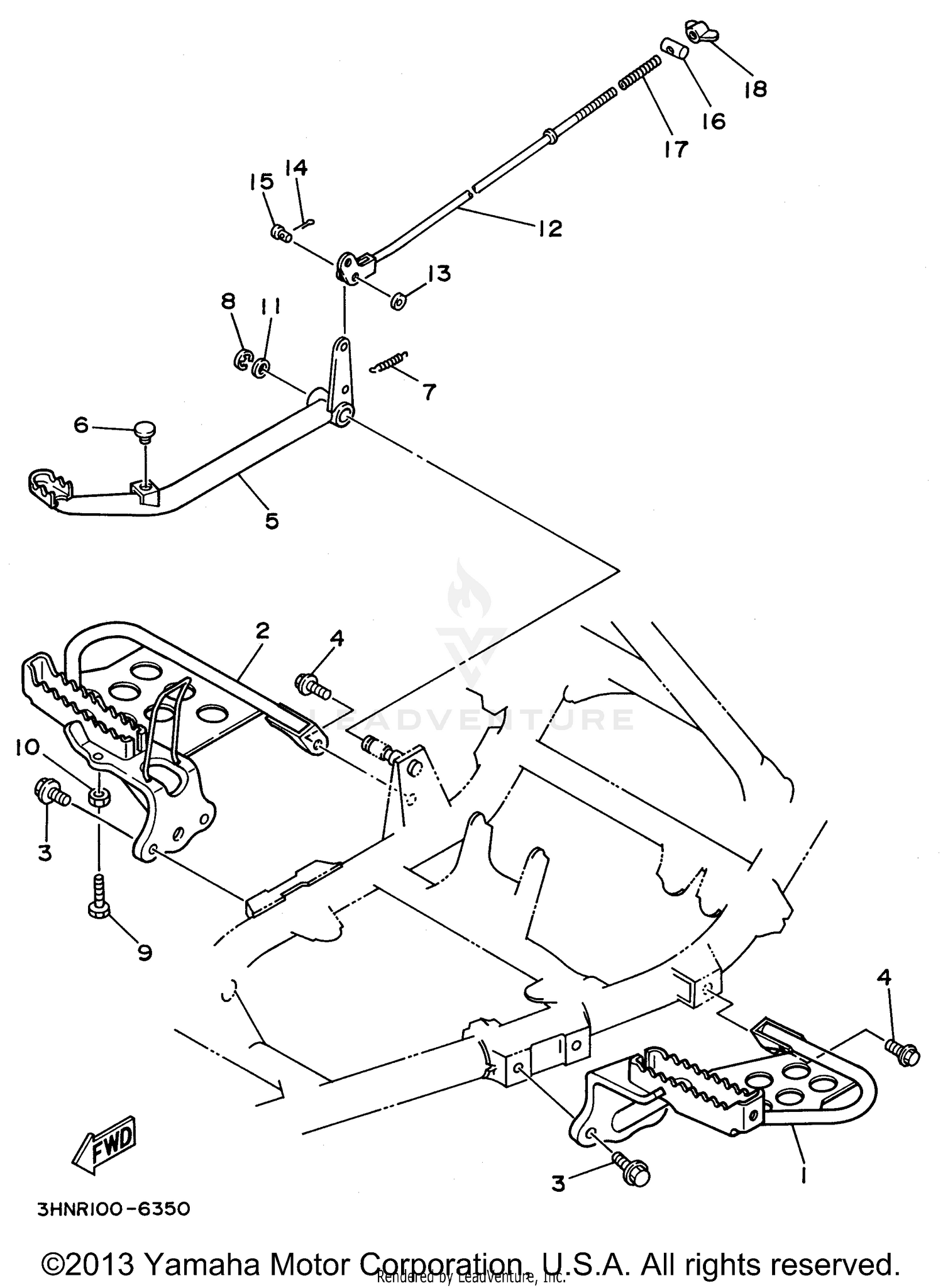

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
3HN-27411-20-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FOOTREST 2
3HN-27421-20-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95827-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL, BRAKE
4GB-27211-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-16318-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-15797-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
ROD, BRAKE
4GB-27231-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, CLEVIS
90240-06076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, ADJUSTING
20E-26343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
