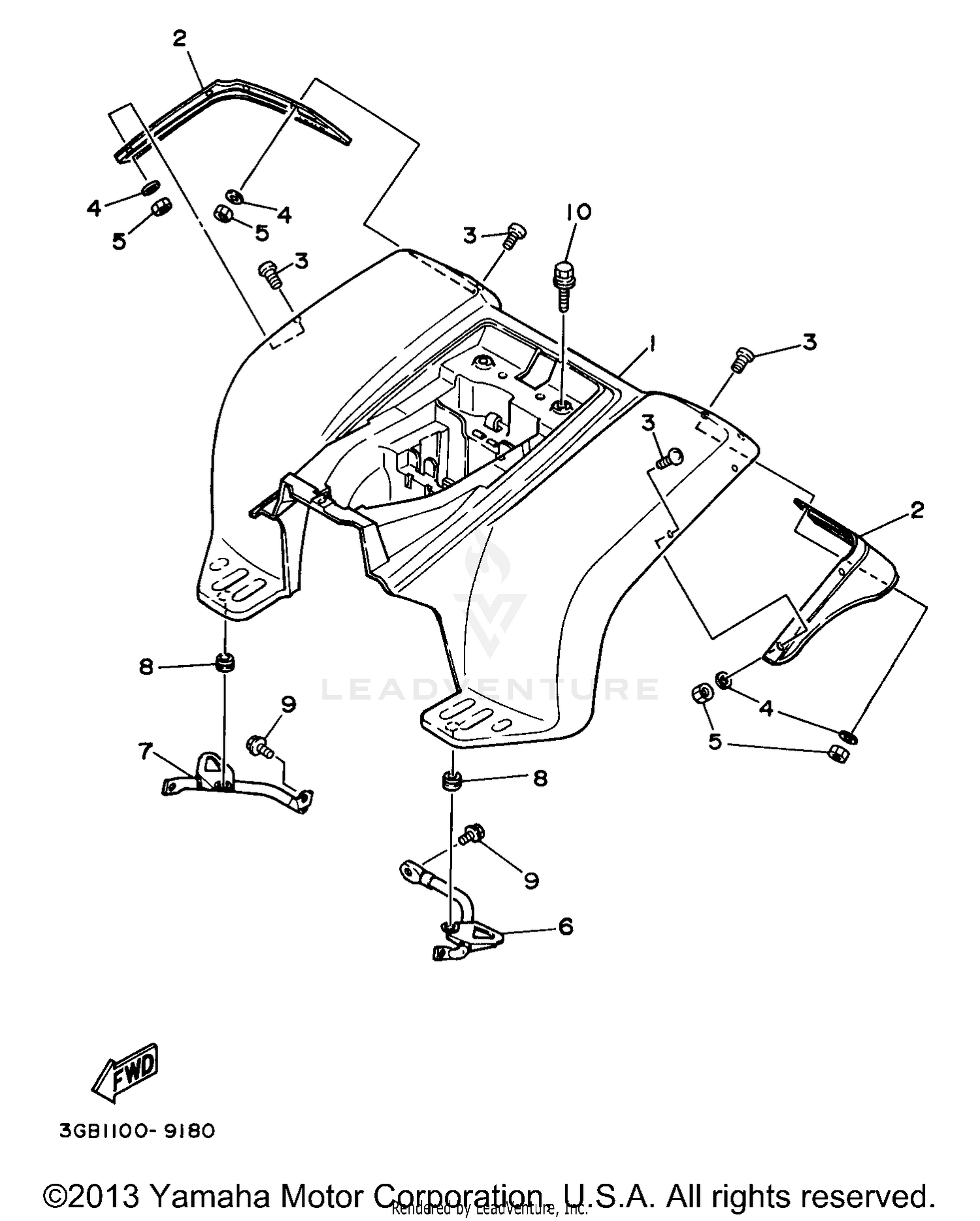

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FENDER COMP.
4EM-W2161-A0-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLAP
2HX-21621-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BINDING
90154-05005-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-05029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95707-05300-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, FENDER 1
3GB-21613-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FENDER 2
3GB-21614-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-16233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
