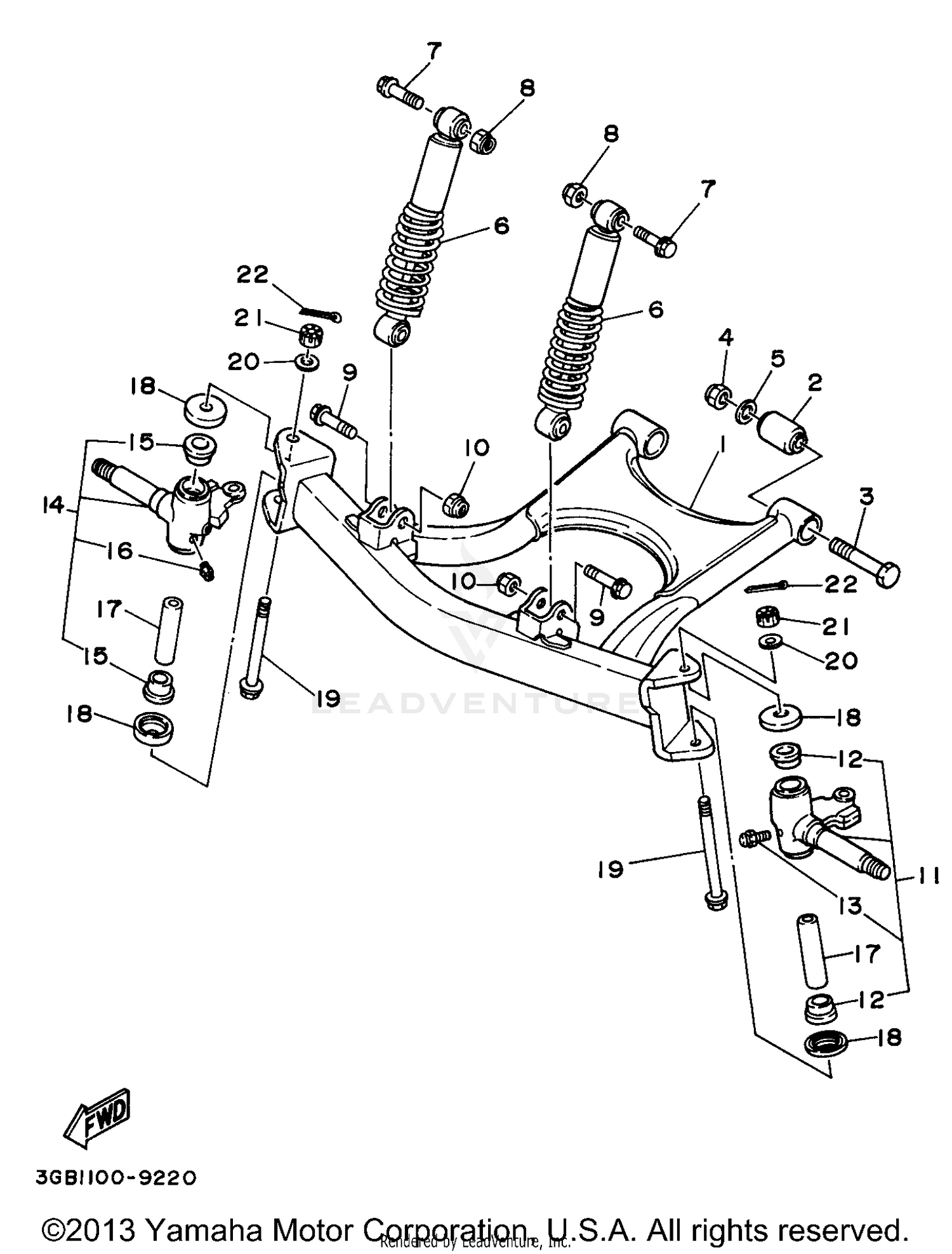

Front Suspension - Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT LOWER ARM COMP.
3GB-23570-00-33
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH 1
307-22123-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-12498-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-12688-00
Superseded by 90201-124E4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHOCK ABSORBER ASSEMBLY
2HX-23350-00-33
Superseded by 2HX-23350-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-10561-00
Superseded by 90105-10669-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-10091-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-12460-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$13.49 | ||
|
Unavailable |
|||
|
#11
STEERING KNUCKLE ASSY (LEFT)
3GB-23501-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, SOLID
90381-17067-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
STEERING KNUCKLE ASSY (RIGHT)
3GB-23502-10-00
|
$150.99 | ||
|
Unavailable |
|||
|
#15
BUSH, SOLID
90381-17067-00
|
$12.49 | ||
|
Unavailable |
|||
|
#16
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$8.25 | ||
|
Unavailable |
|||
|
#17
SPACER
3GB-23448-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-104A8-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08759-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CASTLE
90171-10004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
