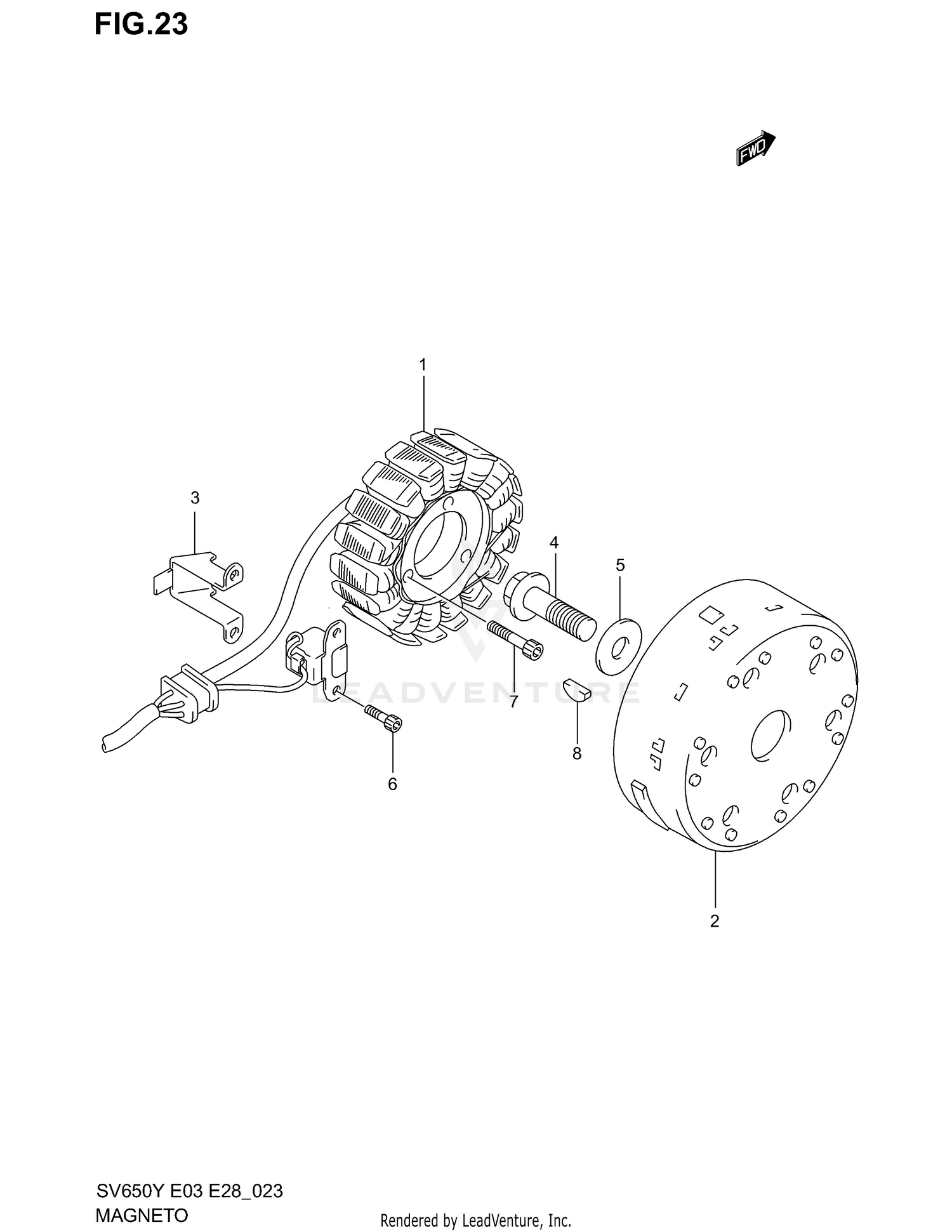

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-19F00
|
$481.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
STATOR ASSY
32101-19F10
|
$499.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
32102-20F00
|
$391.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, MAGNETO LEAD
32371-19F00
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (12X40)
09103-12004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (12X30X3.0)
09160-12036
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07130-05123
Superseded by 07130-0512B
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-06303
Superseded by 07130-0630B
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY
09420-04008
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
