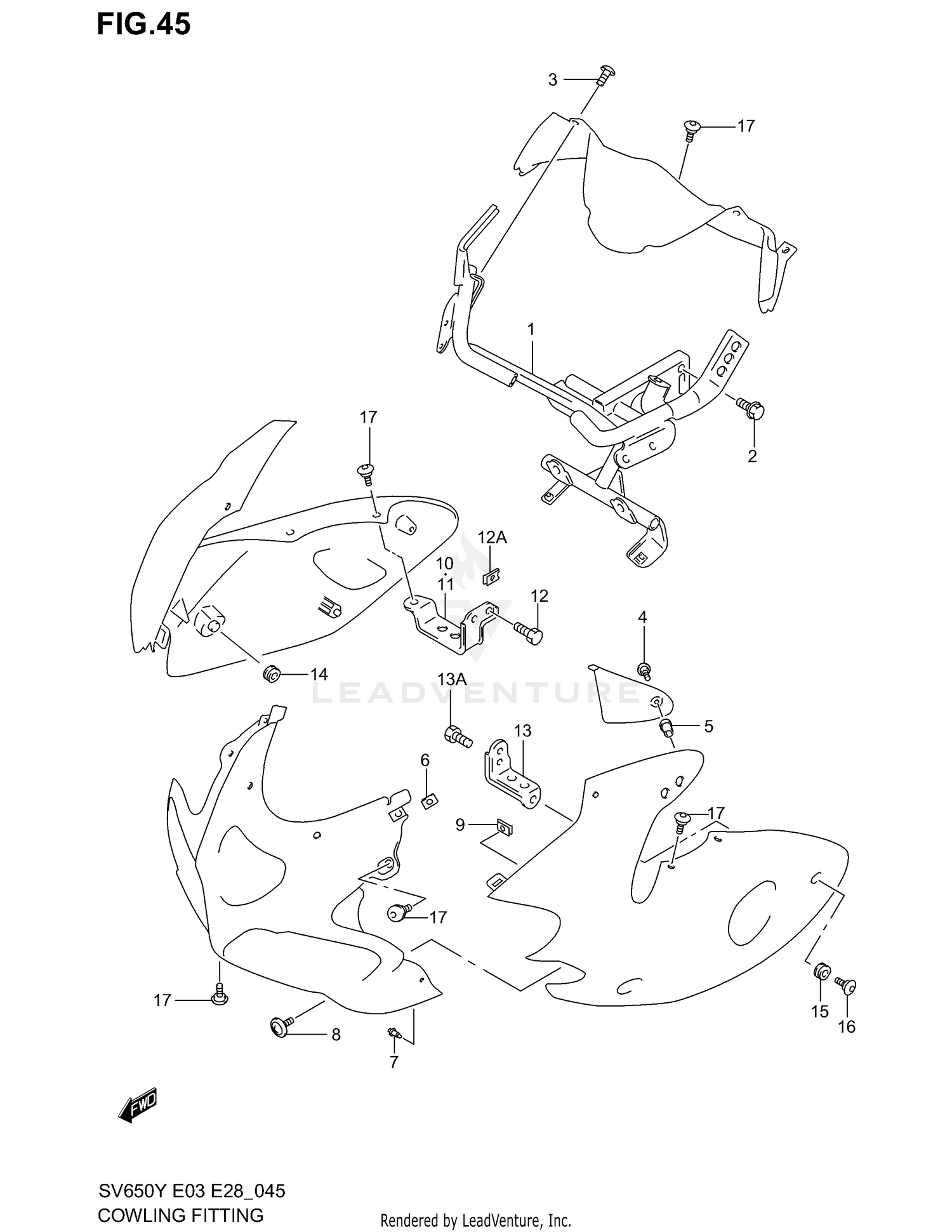

Cowling Instalation Parts (sv650sx/sy/sk1/sk2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACE, COWLING
94510-19F00
Superseded by 94510-19F02
|
$387.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
BRACE, COWLING
94510-19F02
|
$387.24 | ||
|
Unavailable |
|||
|
#2
BOLT
01550-08303
Superseded by 01550-0830A
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, REAR
02142-05203
Superseded by 02142-0520B
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-05019
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT,COWL
94484-24F00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP (BLACK)
09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW
03241-15163
Superseded by 03241-1516A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09148-05038
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, SIDE UPPER RH
94521-19F00
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, SIDE UPPER RH
94521-19F10
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, SIDE UPPER LH
94531-19F00
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, SIDE UPPER LH
94531-19F10
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#12A
NUT
53141-19A00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SIDE REAR LH
94541-19F00
Superseded by 94541-19F01
|
$17.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SIDE REAR LH
94541-19F01
|
$17.52 | ||
|
Unavailable |
|||
|
#13A
BOLT
01500-06163
Superseded by 01500-0616A
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CUSHION
09320-08018
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
09139-06087
Superseded by 09139-06126
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (M5X16)
09139-05054
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
