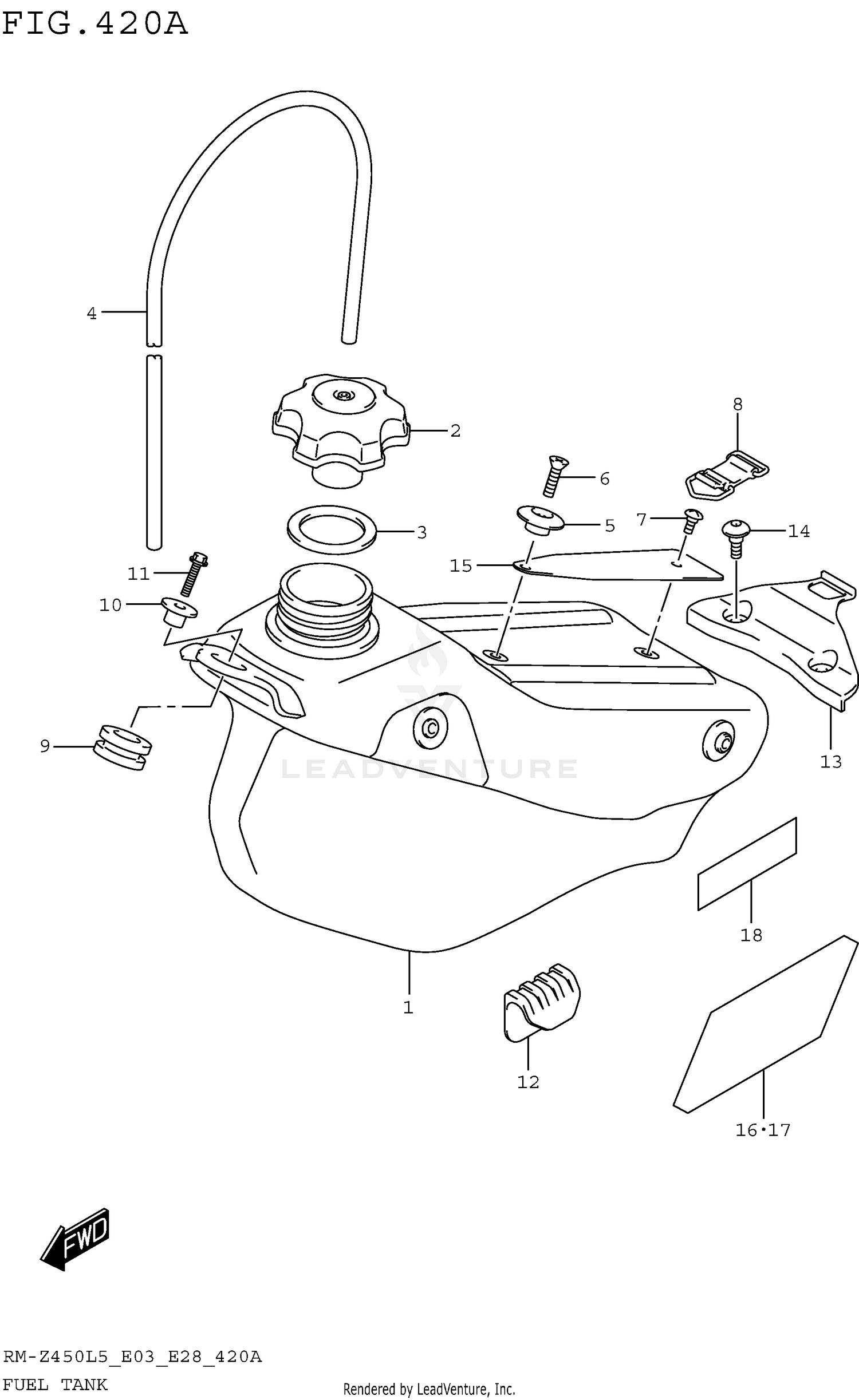

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
44110-28H20
|
$1,605.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, FUEL TANK FILLER
44210-37F00
|
$37.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,FUEL TANK FILLER CAP
44248-27C00
Superseded by 44248-27C01
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SEAT FRONT
44132-37F10
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-0620B
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (6X13.5)
09139-06134
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, FUEL TANK REAR
44560-27C00
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TA
44541-28H00
Superseded by 44541-28H01
|
$5.46 | ||
|
Unavailable |
|||
|
#10
SPACER
44134-35G02
|
$23.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X30)
09103-06213
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CUSHION,FUEL TA
44543-49H00
Superseded by 44543-49H01
|
$10.84 | ||
|
Unavailable |
|||
|
#13
CUSHION,FUEL TA
44542-28H10
Superseded by 44542-28H11
|
$13.21 | ||
|
Unavailable |
|||
|
#14
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, FUEL TANK
44280-28H00
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, RADIAOTR COVER RH
17795-28H00
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR, RADIAOTR COVER LH
17796-28H00
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, RADIAOTR COVER
17797-28H00
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
