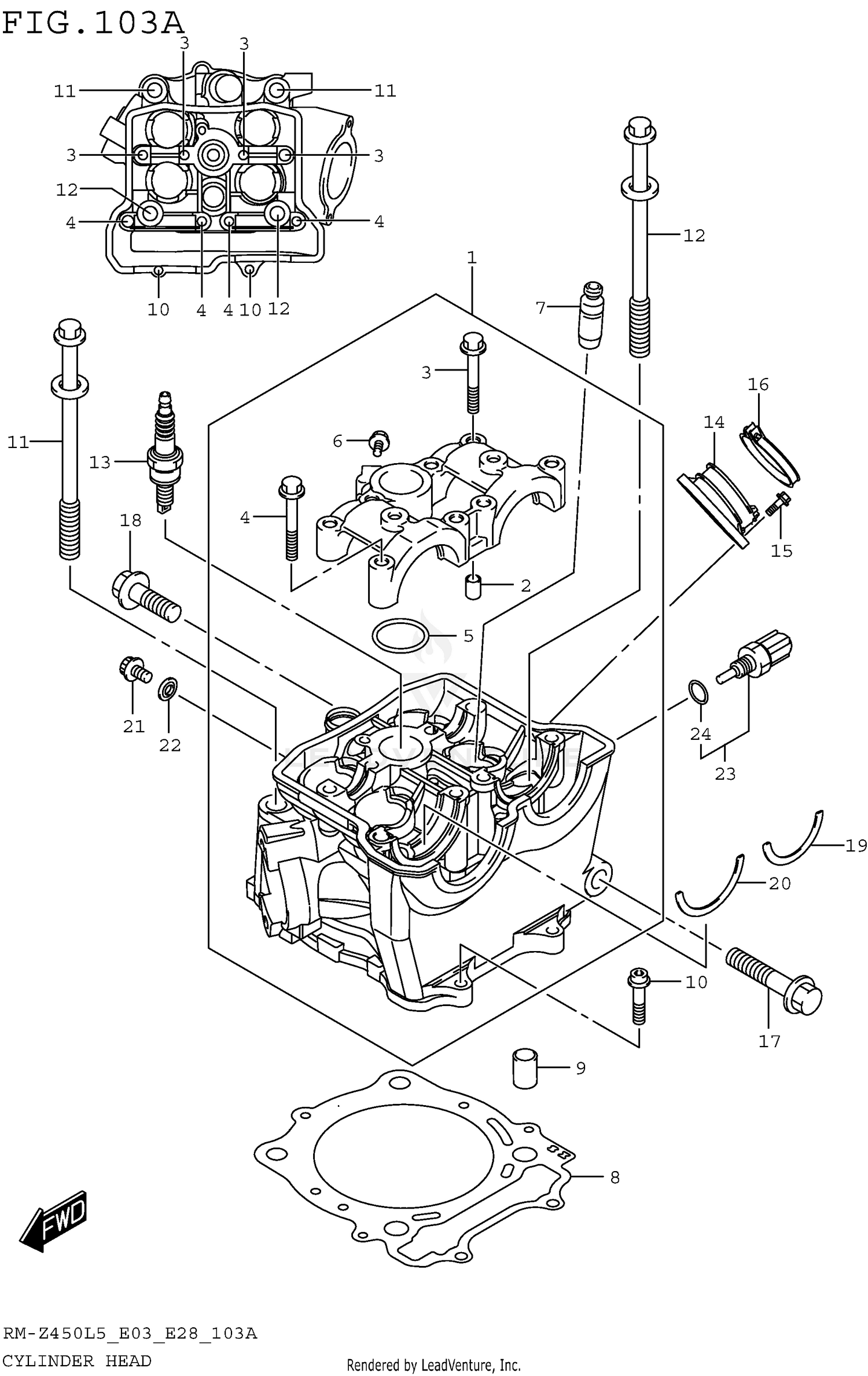

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-28H11
Superseded by 11100-28H12
|
$843.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN (8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X40)
09103-06266
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X45)
09103-06293
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING (D:2.4,ID:25.7)
09280-26007
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (6X10)
09103-06188
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE,VALVE (OS:0.3)
11115-45G70
|
$42.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET,CYLINDER HEAD
11141-28H00
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
07120-0625A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,CYLINDER HEAD (L:140)
11117-28H00
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,CYLINDER HEAD (L:120)
11161-45G00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG,SPARK (DIMR8C10)
09482-00600
Superseded by 09482-00660
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE ASSY,INTAK
13101-28H00
Superseded by 13101-28H01
|
$91.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, INTAKE PIPE
13170-35G00
Superseded by 13170-35G01
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X43)
09103-10116
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (10X32)
09103-10229
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
C-RING,CAMSHAFT
12749-49H00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
C-RING,CAMSHAFT
12749-49H10
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
07120-0610A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SENSOR, WATER TEMP
13650-14G00
|
$69.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
.O RING
13655-14G00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
