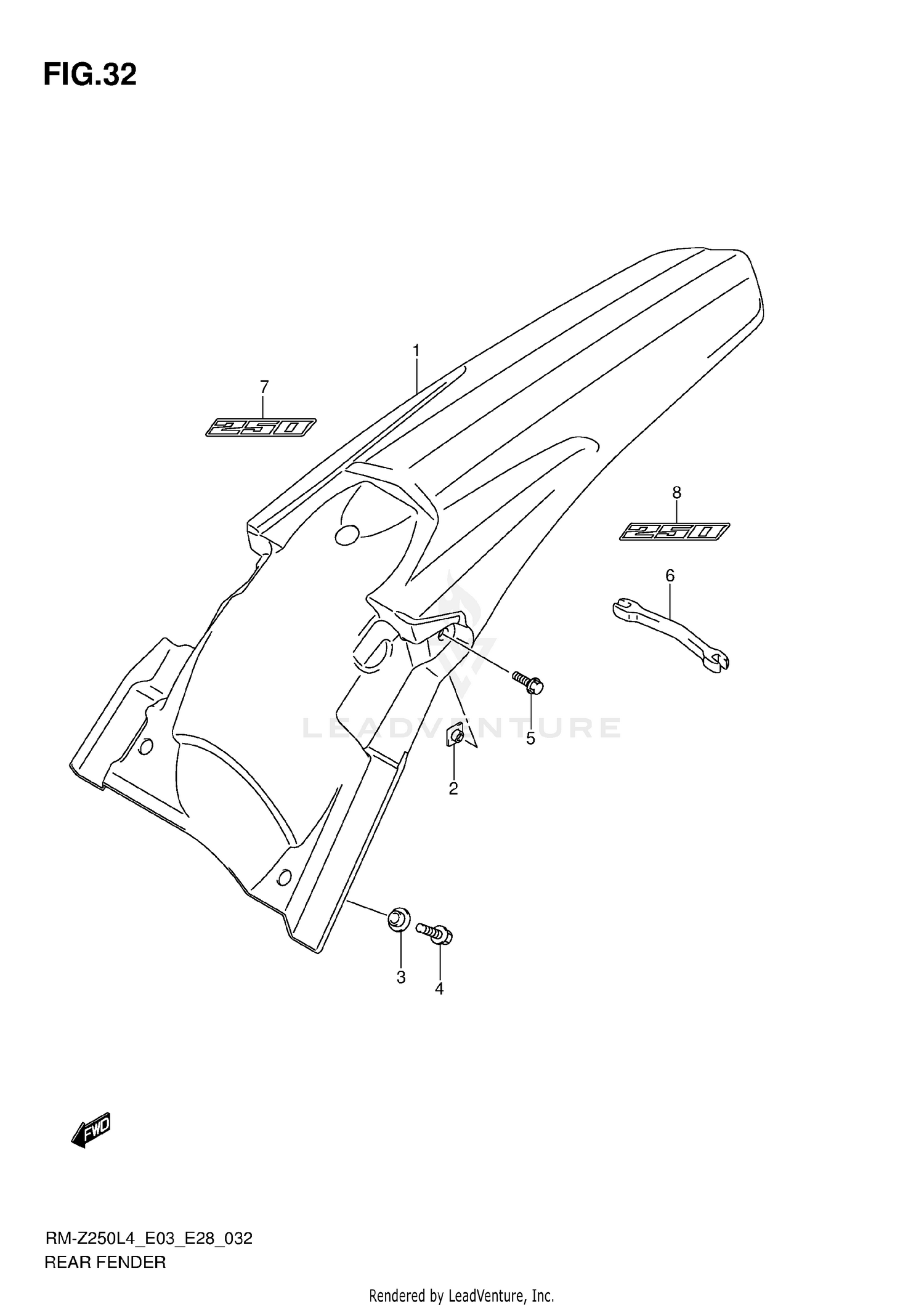

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (BLACK)
63111-49H01-019
|
$69.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, REAR FENDER REAR
63131-02J00
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, FRONT FENDER
63191-28H00
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
OPEN SPANNER (6.4X6.8)
09813-00134
|
$19.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM, RH (WHITE/BLACK)
68175-49H00-8YM
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, LH (WHITE/BLACK)
68176-49H00-8YM
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
