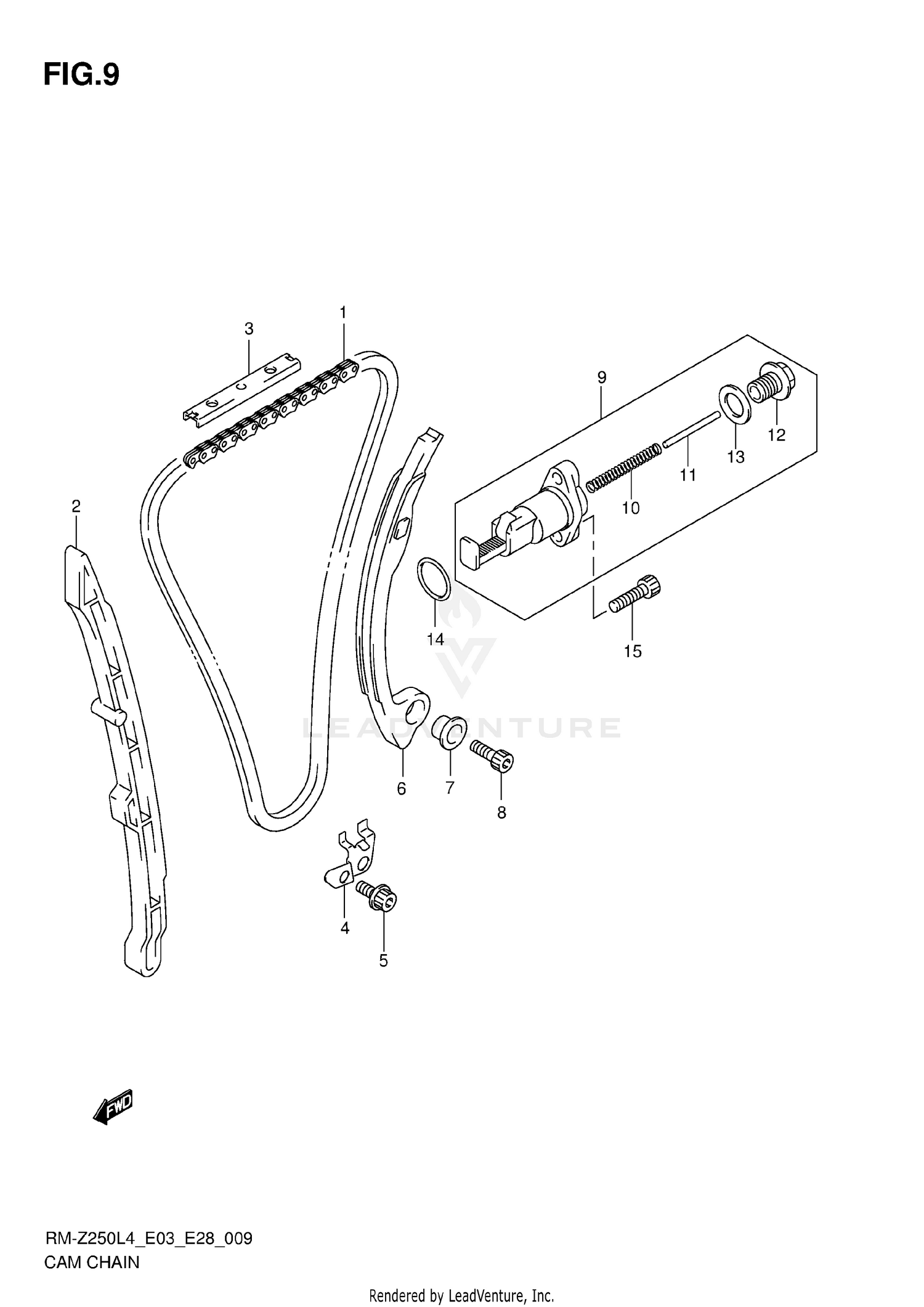

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE (82RH2010-114M)
12760-10H00
|
$56.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-49H00
|
$40.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-35G00
Superseded by 12782-35G01
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, CAM CHAIN GUIDE
12773-49H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
07120-0610A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER,CAM C
12811-10H00
Superseded by 12811-10H01
|
$52.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
12812-35G00
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
ADJUSTER ASSY, TENSIONER
12830-10H00
|
$147.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
12831-10H00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR
12836-10H00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
12833-10H00
|
$24.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
12837-24F10
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:1.9,ID:18.8)
09280-19001
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
07130-0625A
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
