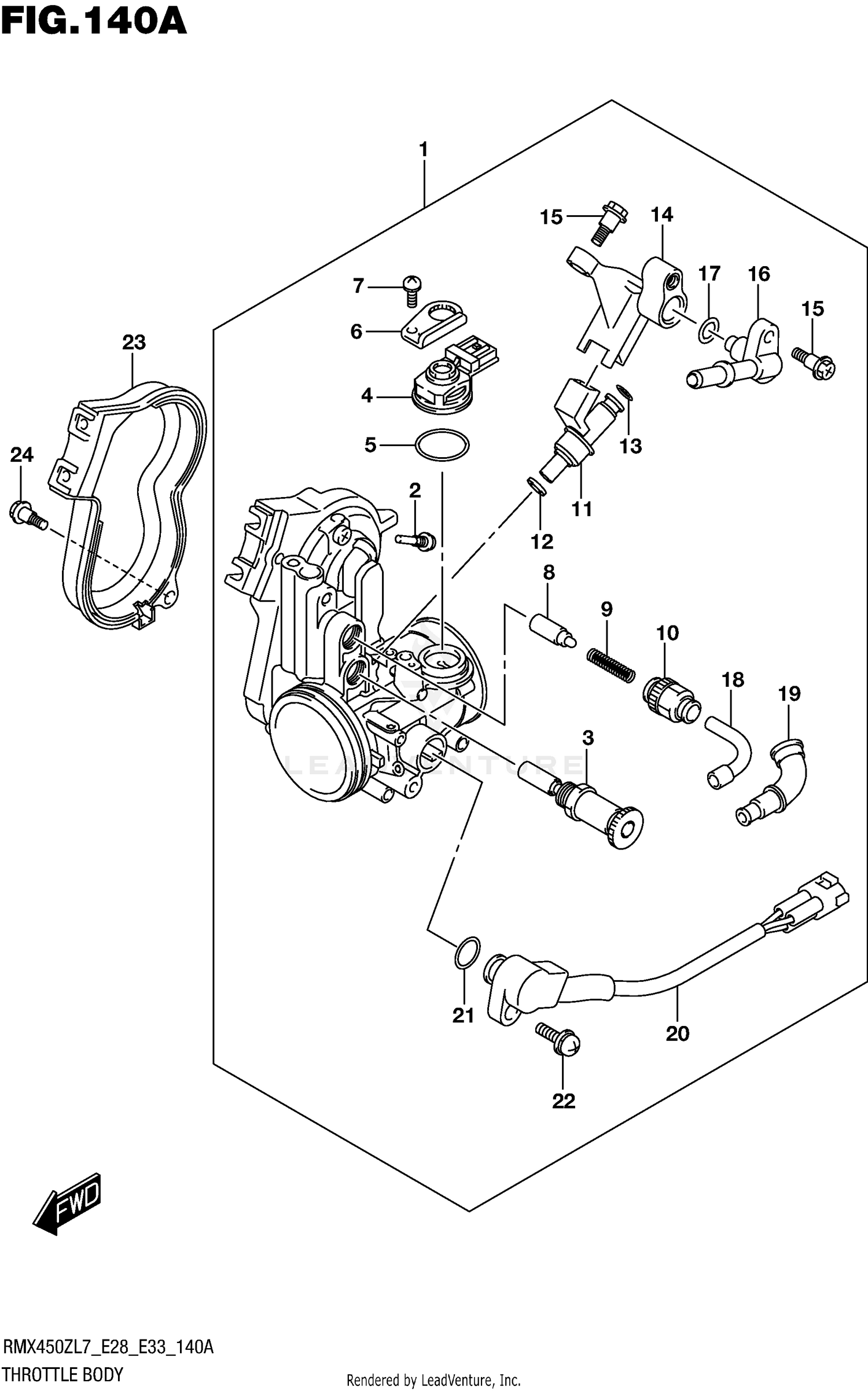

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY, THROTTLE
13400-02J01
|
$626.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SCREW
13296-10H00
|
$30.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
.STARTER VALVE
13410-28H00
|
$100.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SENSOR, MAP
15620-05H00
|
$304.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O RING
15621-05H00
Superseded by 15621-05H01
|
$10.23 | ||
|
Unavailable |
|||
|
#6
.PLATE, STAY
13565-28H00
|
$16.57 | ||
|
Unavailable |
|||
|
#7
.SCREW
13601-15F20
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
.STARTER VALVE
13411-28H00
|
$47.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SPRING
13271-45G00
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
.HOLDER, CABLE
13581-45G00
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
.INJECTOR ASSY
15710-02J00
|
$357.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
.RING,SEAL
15722-21H00
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O-RING
15721-21H00
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
.FUEL PIPE
13471-28H00
|
$69.03 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SCREW
13452-28H00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
.JOINT
13685-28H00
|
$46.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
.O-RING
15721-24F00
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
.GUIDE, CABLE
13579-28H00
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
.CAP
13681-45G00
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
.SENSOR ASSY, THROTTLE
13580-28H11
|
$293.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
.O RING
13575-40F00
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
.SCREW
13605-28H00
|
$2.09 | ||
|
Unavailable |
|||
|
#23
COVER
13484-28H00
|
$33.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
13601-28H00
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
