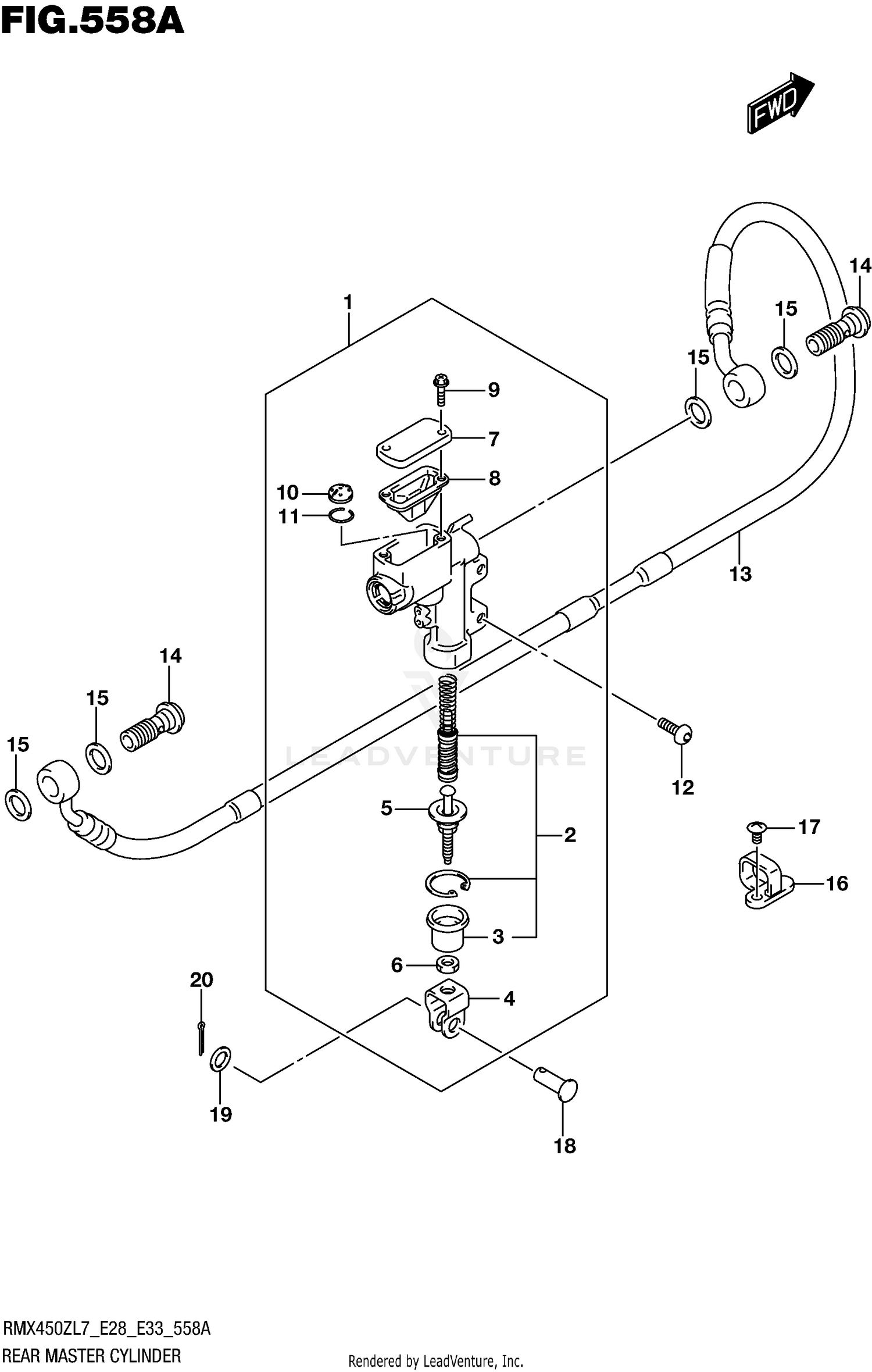

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69604-28H10
|
$327.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON / CUP SET
69600-35811
Superseded by 69600-35812
|
$39.90 | ||
|
Unavailable |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
.YOKE
69692-35G00
|
$24.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
.ROD, PUSH
69670-28H00
|
$30.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
.NUT
51212-77500
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CAP
69669-28H00
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
.DIAPHRAGM
69667-37F20
|
$18.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
69689-37F30
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SEPARATOR
59748-36E00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
.RING
69744-36E00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X16)
09139-06139
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
69480-28H01
Superseded by 69480-28H02
|
$112.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
UNION
09360-10065
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, HOSE
61196-27C40
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02142-0510A
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN (8X20)
09200-08048
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (8.5X14X1.6)
09160-08090
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
COTTER PIN
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
